Forklifts & Parts

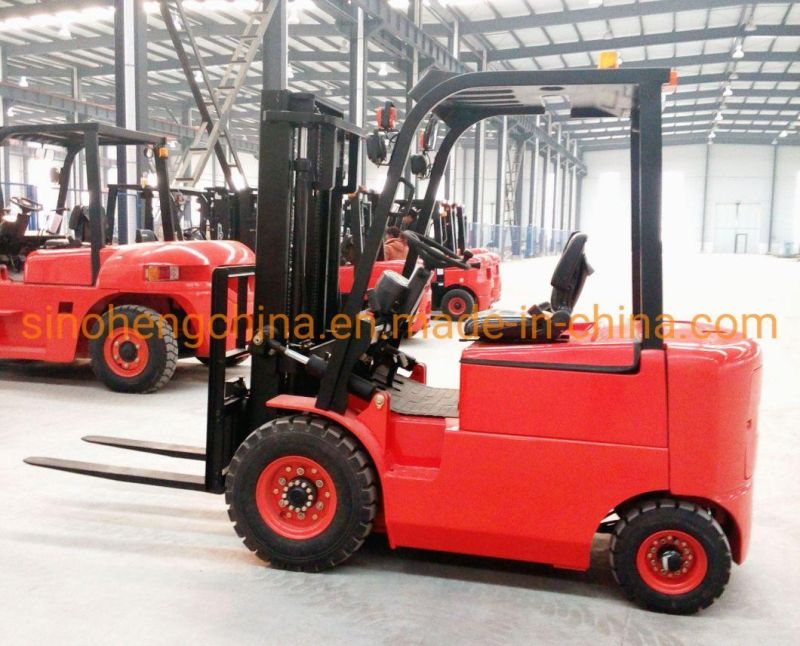

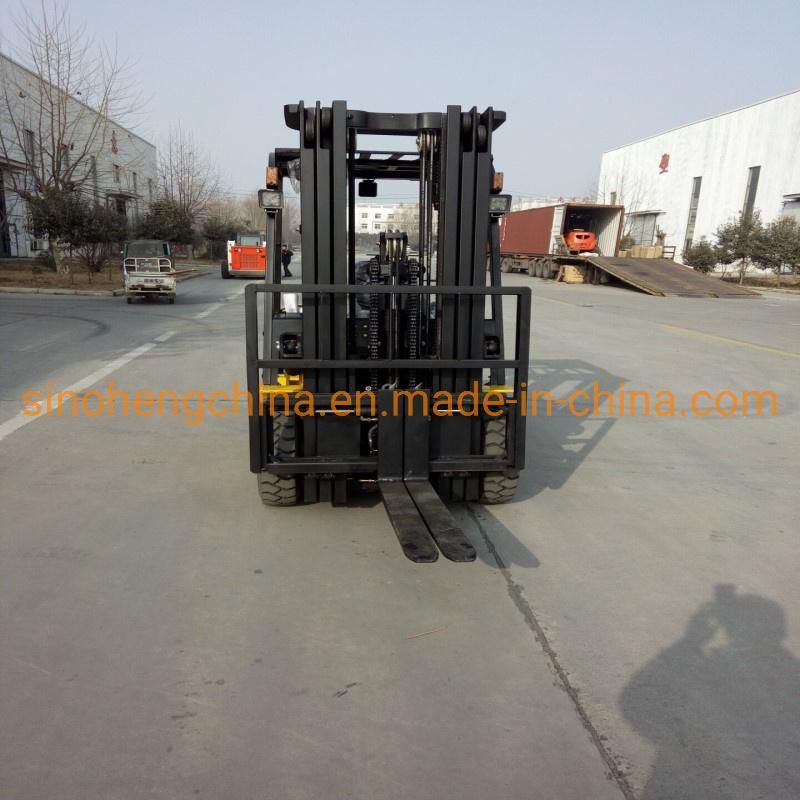

2.5 Ton Battery Forklift Truck with CE (SH25C)

Jinan Sinoheng Import and Export Co., Ltd.
  • Cab Location:Not Adjustable
  • Type:Powered Pallet Truck
  • Power:DC Motor
  • Load Capacity:1T - 5T
  • Fuel:Electric
  • Load center:500mm

Base Info

  • Model NO.:SH25C
  • Lift height:>5000mm
  • Condition:New
  • Load Capacity (T):2.5t
  • Power Type:Battery
  • Fork Width:122
  • Fork Thickness:40
  • Transport Package:Container, FCL,LCL
  • Specification:CE
  • Trademark:sinoheng
  • Origin:Shandong, China
  • Production Capacity:300PCS,Month

Description

Product Name2.5Ton DC Counterbalance Electric Forklift TruckModelSH25CLoad capacity (kg)2500Load center (mm)500Power typeBatteryMax. lifting speeds ( with load )  mm/s230Max. driving speeds ( with/without load )  km/h12/14Max. towing ( with/without load )  kn10Gradeability (with/without load )  %15Lifting height (mm)3000Free lift (mm)60Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2250Min. right angle aisel width ( mm )2100Min. under-clearance (mm)110
DimensionOverall length (including fork)mm3380Overall width ( mm )1160Overall height (mast lowered )mm2130Overall height (mast extend )mm4040Overall height to overhead guard (mm)2130Fork width (mm)122Fork thickness (mm)40Fork length (mm)920(1070)Fork overhang (mm)451Wheel base (mm)1550TreadFront tread (mm)970Rear tread (mm)950TyreFront tyre7.00-12Rear tyre18 x 7 -8Total weight (kg)4300MotorTraction motorXQ-8Lifting motorXQD-10-3SBatteryBattery typeD-700Battery voltage /Capacity  V/Ah48/7002.5 Ton Battery Forklift Truck with CE (SH25C)2.5 Ton Battery Forklift Truck with CE (SH25C)2.5 Ton Battery Forklift Truck with CE (SH25C)
