• Model NO.：TK20
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Power Type：Battery
• Front Overhand：420kg
• Wheel Types：Pneumatic Tire
• Number of Wheels,Front/Rear(X=Drive Whe：2X,2
• Wheel Tread,Drive Side：950mm
• Wheel Tread,Load Side：960mm
• Mast Closed Height：1995mm
• Free Lift Height：140mm
• Mast Extended Height with Load-Backrest：4030mm
• Overhead Guard Height：2100mm
• Transport Package：Packaging Details: International Packing Way, Pack
• Specification：3130*1080*1995mm
• Trademark：NOELIFT
• Origin：Zhejiang
• HS Code：84271020
• Production Capacity：200units,Month

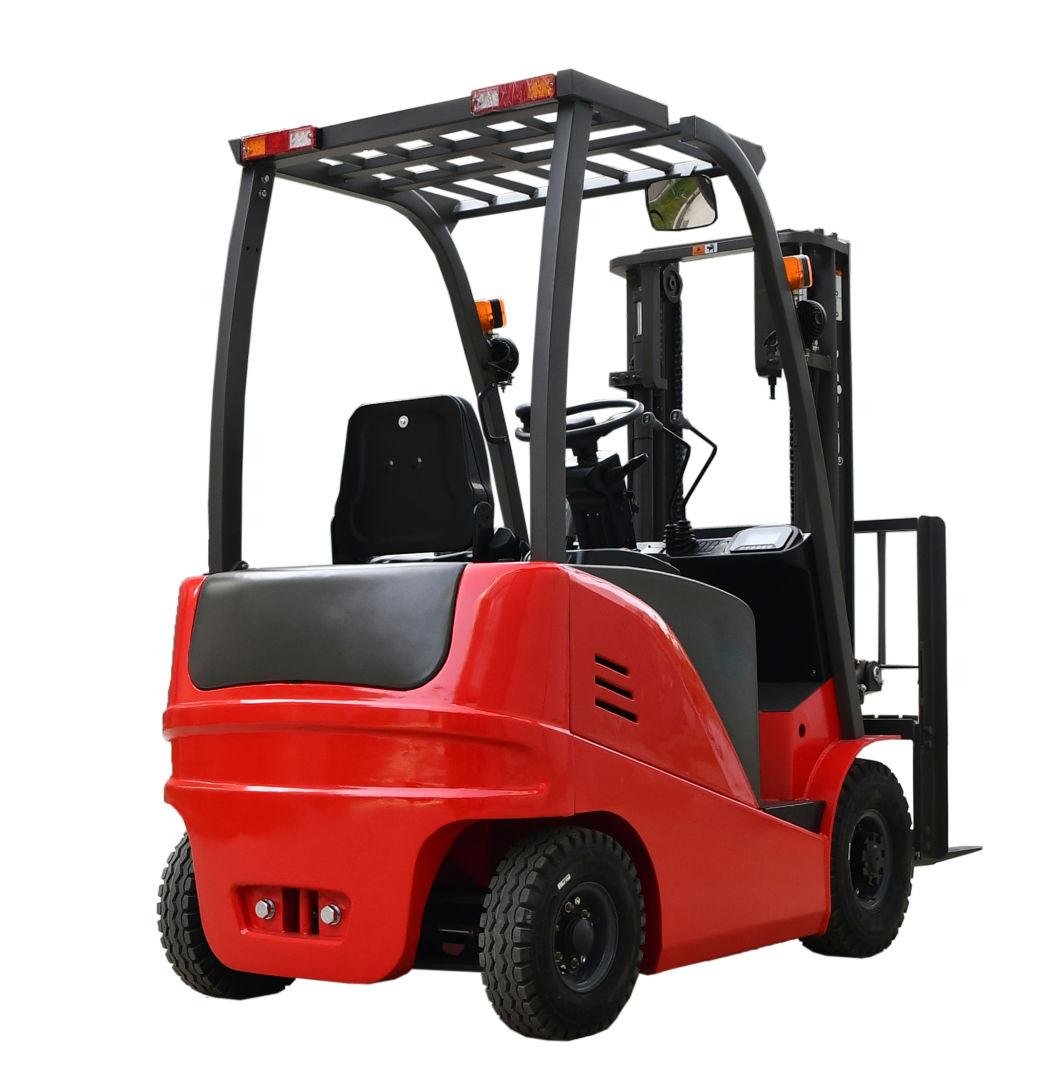

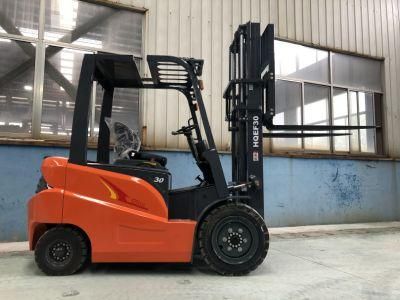

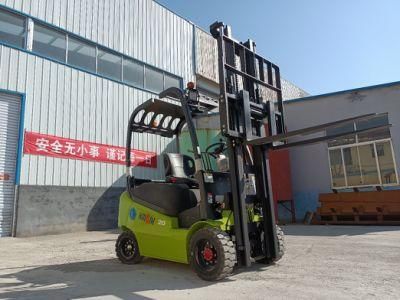

SPECIFICATIONS FOR 3TON ELECTRIC FORKLIFT



PowerDriving motorKwAC/9.1Lifting motorKw10BatteryV/Ah48/630Controller US CURTIS



Main parametersLoad Capacitykg3000Power type BatteryOperator type SeatedLifting heightmm3000Load centermm500TireTire Type Pneumatic



DimensionMast lowered heightmm2100Overhead guard heightmm2130Overall max. lift height(with backrest)mm4130Overall lengthmm2545Overall widthmm1180Fork size(LxWxH)mm1070x130x40

WeightBattery weightkg960Total weight(with battery)kg4450

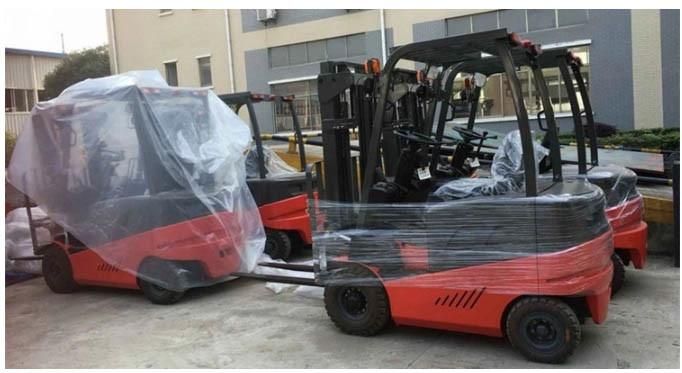

Packaging Details : International packed with bubble film or pack it according to customers special request.



Pre-Sales Service

* Inquiry and consulting support.

* 24 hours online services.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
