• Model NO.：TFC
• Lift height：3000 mm~6000 mm
• Condition：New
• Model：Tfc
• Power Unit：Battery
• Operation：Seat
• Fork Overhang：318mm
• Wheelbase：1800mm
• Service Weight(with Battery)：8100kg
• Tyre,Operator/Load Side：PU
• Tyre Size,Load/Drive：377*110(Twin),457*160
• Wheels Number,Front/Back(X=Driven)：4 , 2X
• Tread, Drive/Load：1986 mm,1959 mm
• Mast Tilt Range, Front/Rear：3,5
• Mast Closure Height：3122 mm
• Free Lift Height：1953 mm
• Overhead Guard Height：2100mm
• Battery Voltage/Rated Capacity：48 V ,900 Ah
• Transport Package：International Packing Way with Thick Plastic Film.
• Specification：2300*2960*3122 mm
• Trademark：NOELIFT
• Origin：China
• HS Code：84271090
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. TFC Lift height 3000 mm~6000 mm Condition New Model Tfc Power Unit Battery Operation Seat Fork Overhang 318mm Wheelbase 1800mm Service Weight(with Battery) 8100kg Tyre,Operator/Load Side PU Tyre Size,Load/Drive 377*110(Twin)/457*160 Wheels Number,Front/Back(X=Driven) 4 / 2X Tread, Drive/Load 1986 mm/1959 mm Mast Tilt Range, Front/Rear 3/5 Mast Closure Height 3122 mm Free Lift Height 1953 mm Overhead Guard Height 2100mm Battery Voltage/Rated Capacity 48 V /900 Ah Transport Package International Packing Way with Thick Plastic Film. Specification 2300*2960*3122 mm Trademark NOELIFT Origin China HS Code 84271090 Production Capacity 500 Pieces/Month

Product Description

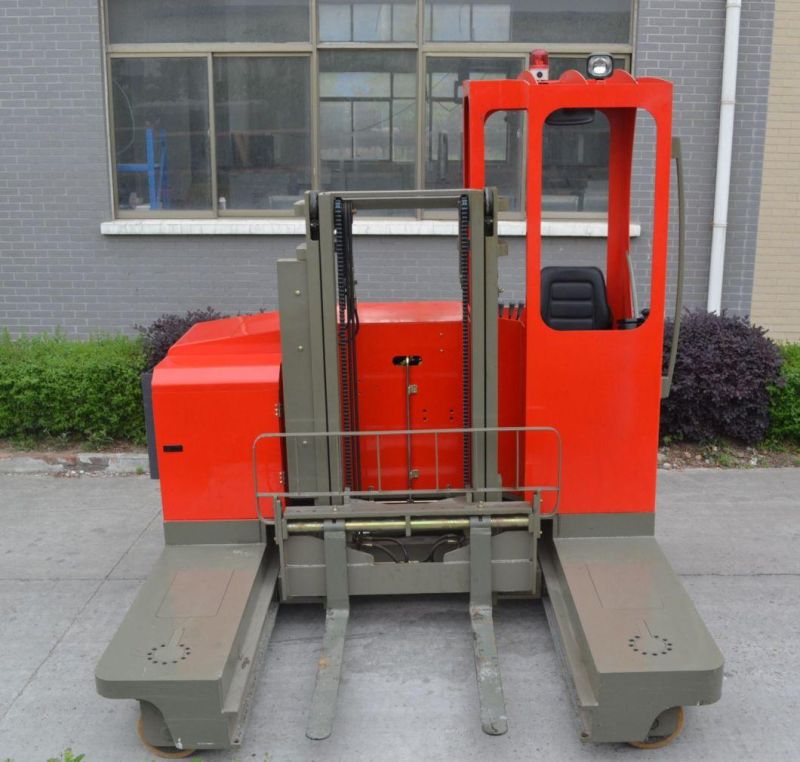

4 ton omnidirection narrow aisle VNA forklift

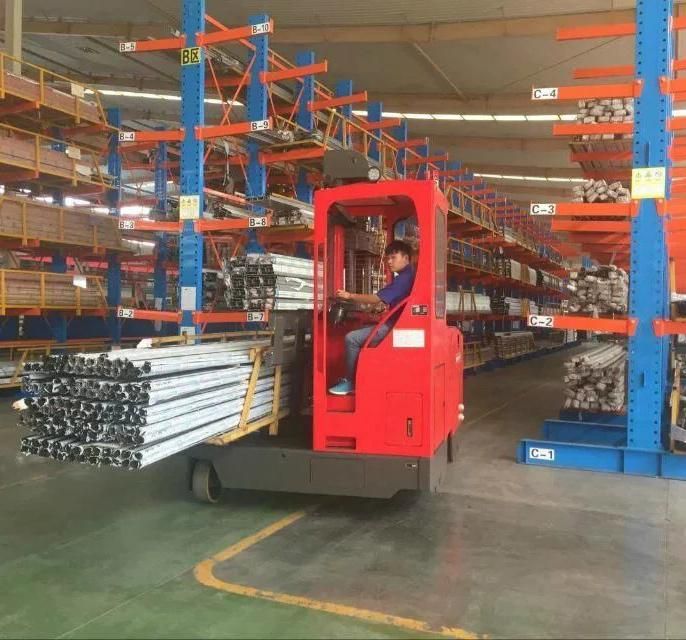

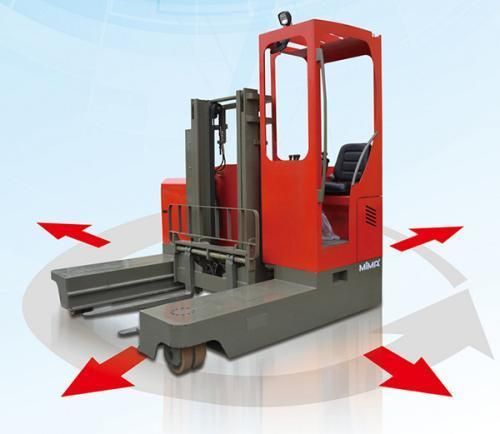

TFC40 series forklift truck is a universal forklift truck used for handling and stacking long material goods with lifting height of 3-7.2m. Compared with ordinary forward forklift truck, it has the functions of multi-direction driving and absolute in-situ turning, so it is mainly used to fork long-strip goods. Such as profiles, reinforcing bars and wooden bars. It is suitable for narrow roadway stacking and long material horizontal handling.

Characteristics:
1. Maintenance-free AC drive system, so that the vehicle response more quickly and accurately.

2. Ultra-wide fork rack and fork distance adjustment function make the truck adapt to different needs of long material handling.

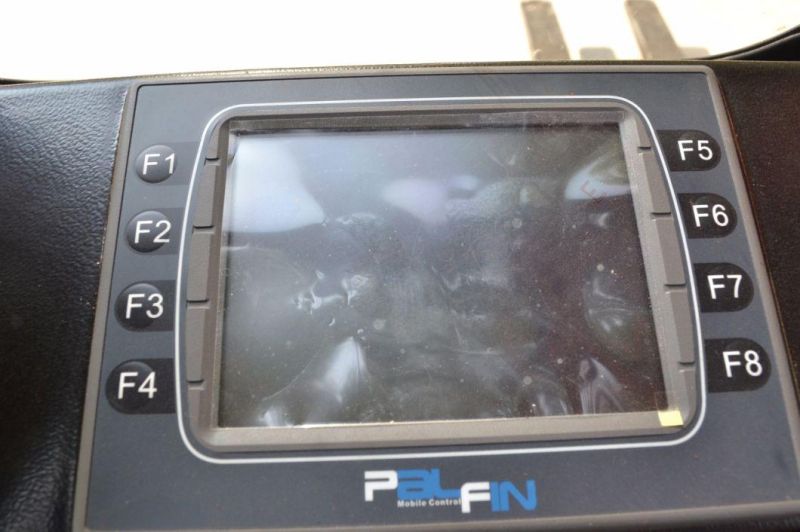

3. Imported integrated handle with various functions and comfortable operation.

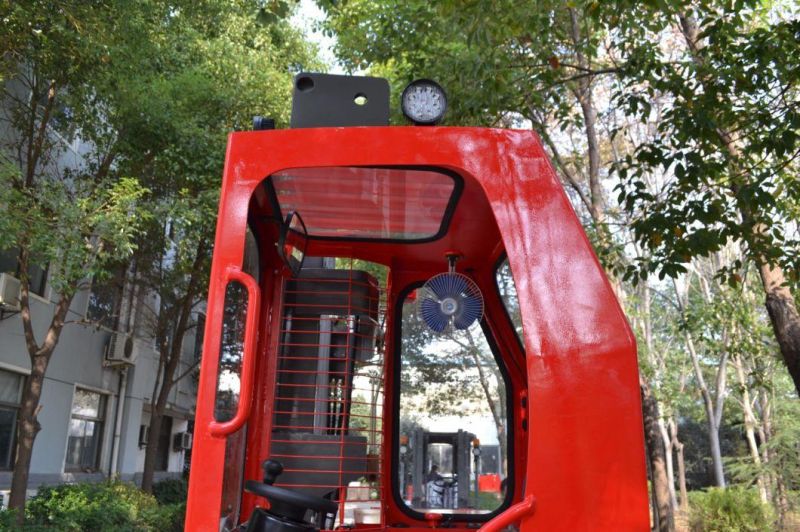

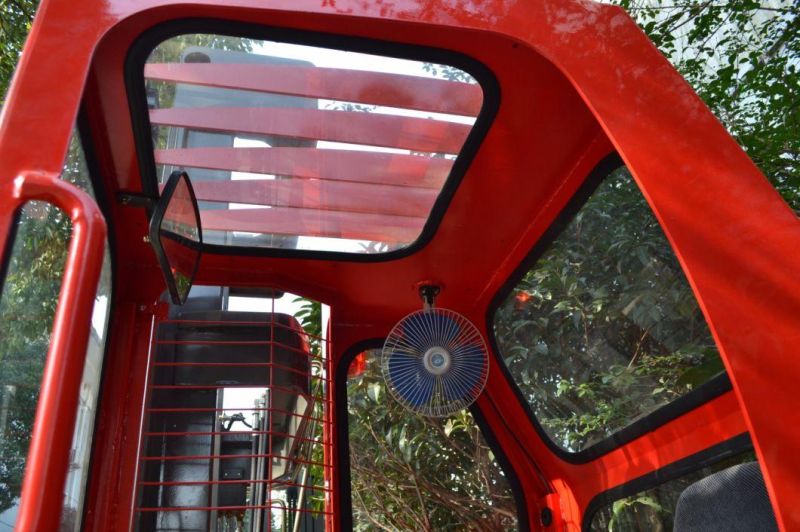

4. The cab designed according to ergonomics provides wide operating space and excellent omni-directional vision.

5. The precise and powerful proportional hydraulic oil circuit design ensures the coordination and stability of the whole vehicle.

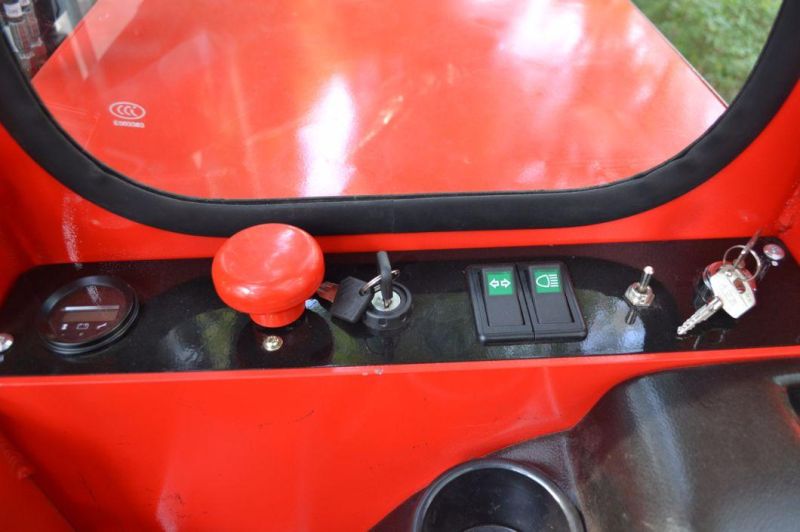

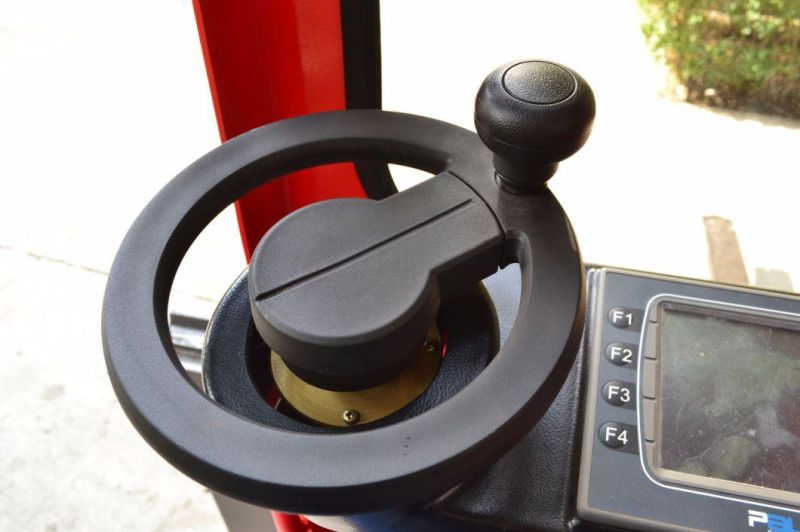

details:
4 ton omnidirection narrow aisle VNA forklift

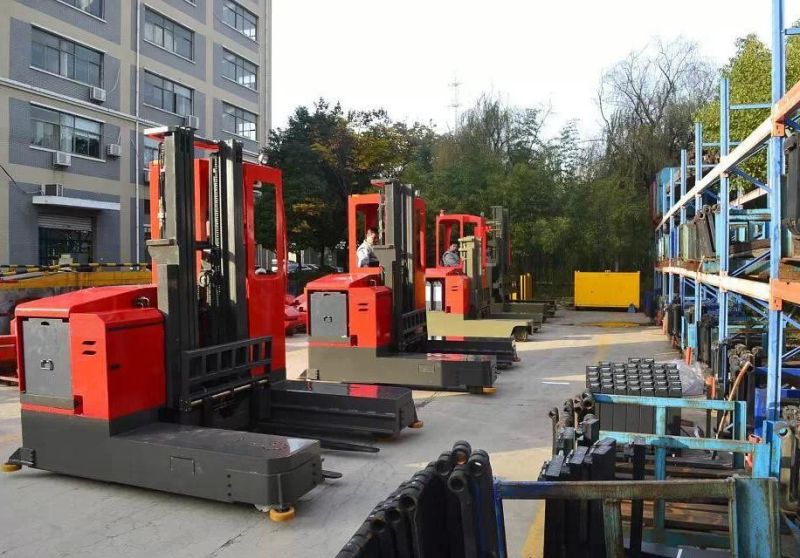

our company:
4 ton omnidirection narrow aisle VNA forklift

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.






contact:

4 ton omnidirection narrow aisle VNA forklift

International packing way with thick plastic film.

Thanks for coming to our Noelift company. if you need more information or technical assistance or any comment or questions, please feel free to contact with me.
