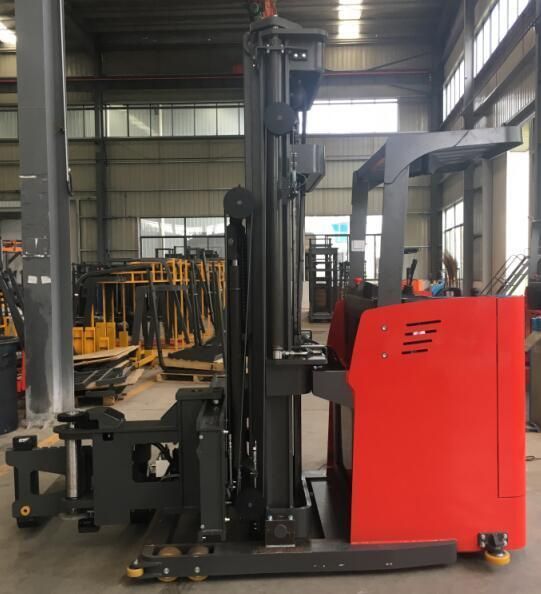

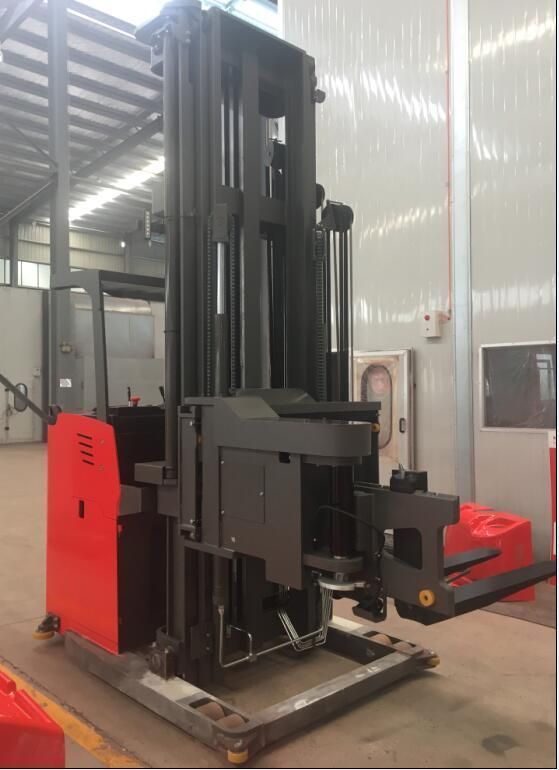

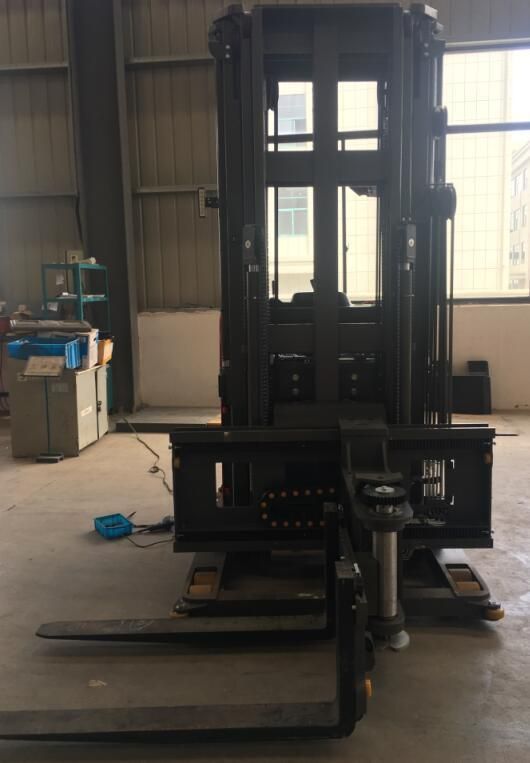

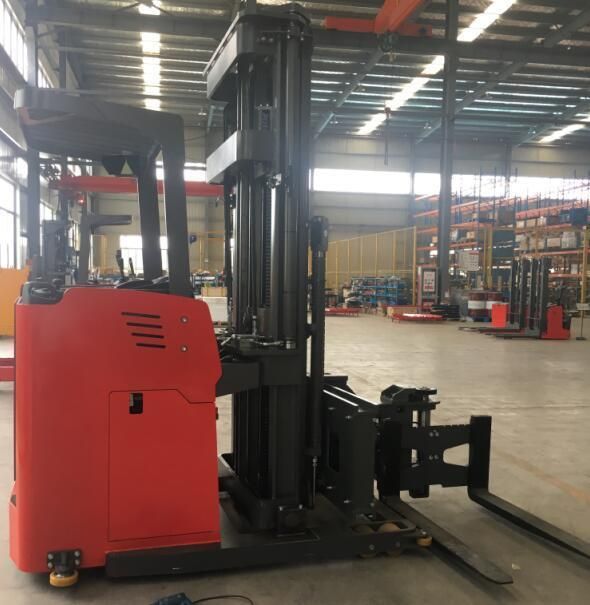

1.5 Ton 3 Ways Electric Pallet Stacker for Narrow Aisle Chariot Elevateur
Hangzhou Noelift Equipment Co., Ltd.- Cab Location：Not Adjustable
- Type：Stacker
- Power：AC Motor
- Load Capacity：≤1T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：TC10
- Lift height：>5000mm
- Condition：New
- Service Weight：4760kg
- Max. Lift Height：7500mm
- Min.Lift Height：3000mm
- Fork Type：3 Ways
- Driving Motor：AC Motor
- Fork Dimension：1070mm
- Aisle Width：1480mm
- Brake Type：Mechanical
- Steering Type：EPS
- Battery Change Type：Side Pull
- Transport Package：International Packing Standard Way with Additional
- Specification：2892*1450*2570
- Trademark：NOELIFT
- Origin：Zhejiang
- HS Code：8427102
- Production Capacity：300
Description
NOELIFTModel TC10 TC10SQ Power type Battery Battery Operation type Stand-on Stand-on Loading capacity kg 1000 1000 Loading center mm 500 500 Tire type front/rear solid PU/solid PU solid PU/solid PU Lifting height mm 3000 4500 Mast height(closed) mm 2570 2750 Overhead guard height mm 2320 2320 Overall length mm 3375 3454 Overall width mm 1450 1450 Fork size mm 1070×100×35 1070×100×35 Fork spread mm 260~820 260~820 Aisle(1000×1000 pallet) mm 1480 1480 Turning radius mm 1880 1880 Min. width aisle mm 1480 1480 The total weight(include battery) kg 3226 3920
Details :

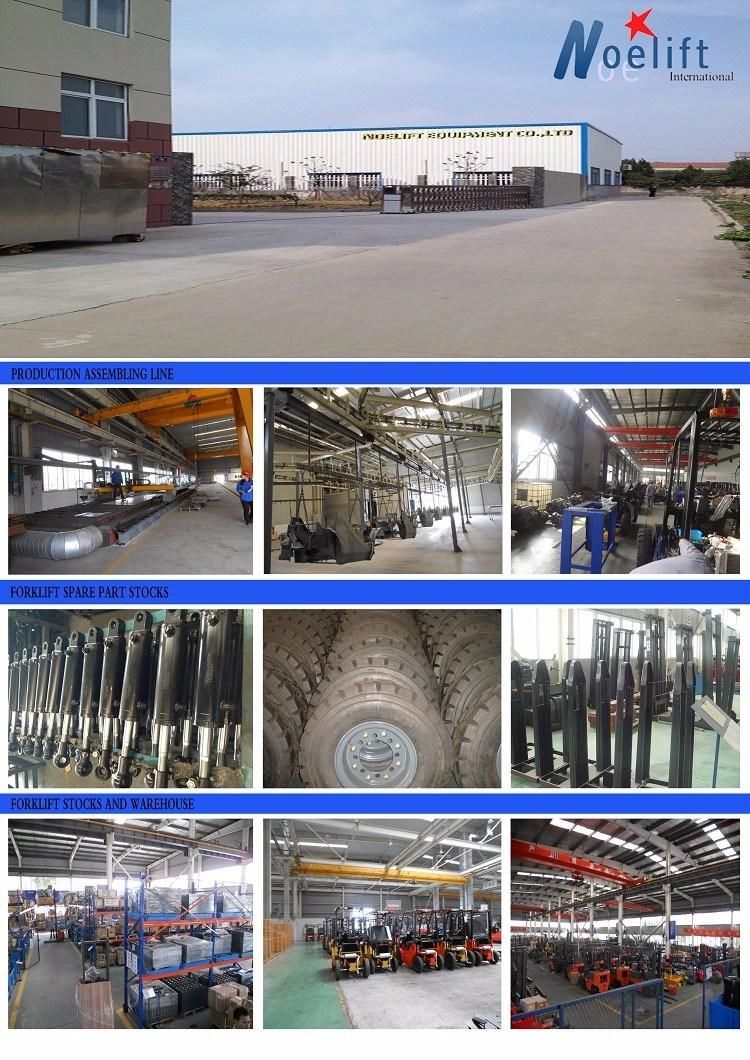

Company Introduction
NOELIFT EQUIPMENT CO., LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompasses close to 100 different models.
Contact us
1. One-stop solution service.
2. Customized-service is available.
3. Customer service is on time.
Any questions and suggestions please feel free to contact us!
NOE WANG
HIGH MAST PARAMETER
| Mast | Full free | Lifting height | Lowered height of the mast | Free lift height | Loading capacity @ MAX. height |
| TC10 | |||||
| Duplex | NO | 3000mm | 2570mm | 100mm | 1000kg |
| NO | 3500mm | 2820mm | 100mm | 1000kg | |
| NO | 4000mm | 3070mm | 100mm | 1000kg | |
| Triplex | YES | 5000mm | 2920mm | 1670mm | 1000kg |
| YES | 5500mm | 3090mm | 1850mm | 1000kg | |
| YES | 6000mm | 3250mm | 2000mm | 1000kg | |
| YES | 6500mm | 3420mm | 2200mm | 900kg | |
| YES | 7000mm | 3580mm | 2400mm | 800kg |
