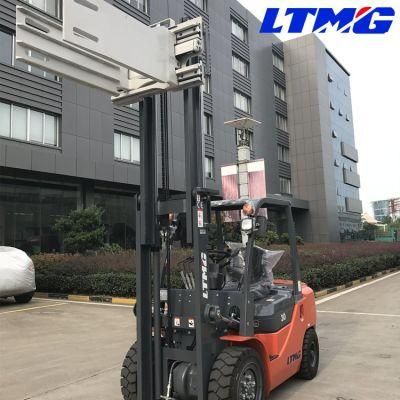

Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment

XIAMEN LTMG CO., LTD.
  • Cab Location：Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：4 Ton
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：FD40
  • Lift height：3000~5000mm
  • Condition：New
  • Fork Size：1070mm*150mm*50mm
  • Weight：5050kg
  • Engine：Isuzu or Mitsubishi
  • Rated Power：44.8kw,2450rpm
  • Wheel Base：1700mm
  • Color：Decided by Buyer
  • Service Brake：Hydraulic
  • Max. Lifting Height：3000mm
  • Truck Weight：5050kg
  • Cab：Optional
  • Transport Package：Container
  • Specification：2870mm*1365mm*2140mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：800sets,Year

Description

Model                               Power shift T/M         FD40Manual shift T/M         FD40Load capacity                       kg4000Load center  mm500Power unit   Diesel  Operator type   Driver/seatTire type  Pneumatic Wheel Front/rear 2/2Max. lifting height                mm3000Free lift                                mm150Fork size                 L*W*Tmm1070*150*50Tilt range                       Mast forward/backward        deg6/12Overall length(without fork)     mm2870Total width  mm1365Mast height (fork lowering)   mm2150Overall height fork raised     With backrest                       mm4250Height to head guard             mm2140Turning radius(outside)          mm2530Front face of fork to front axle mm485Min. right angle stacking aisle
without load length&clearance  mm2940Speed Max Travelling(full/no load)km/h16.5/18Lifting(full/no load )     mm/s380/480Lowering(full/no load)      mm/s450/420Max.drawbar pull         Power shift T/M (full/no load)          kg2200/1000Manual shift T/M (full/no load)      kg2200/1000Gradeability at 1.6km/h       Power shift T/M (full/no load)     %18/20Manual shift T/M (full/no load)   %18/20Truck weight kg5050Weight  distribution      Full  load              front/rear    kg7890/1140No  load               front/rear     kg1810/3240Tires                          Numberfront/rear2/2Modelfront axle 250-15-16PRrear axle6.50-10-10PRWheelbase  mm1800Tread                                           Front/rearmm1120/970Ground clearance              At lowest point(mast)                mm120Framemm135Brake                                           Service  brake Hydraulic-foot pedal                                        Parking brake Mechanical-hand lever                                 Battery                                         Voltage/capacityV/AH12/80Engine                                         Model ISUZU 4JG2Rated powerkw/rpm44.8/2450Rated torqueN.m/rpm186/1800Number of cylinders 4PlacementL3.059Fuel tank capacityL70Transmission                             Speed forward/backward        Power shift T/M
Manual shift T/M             1-1 power shift T/M
2-2 manual shift T/MOperating pressure                   Hydraulic system pressure       kg/cm²180

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

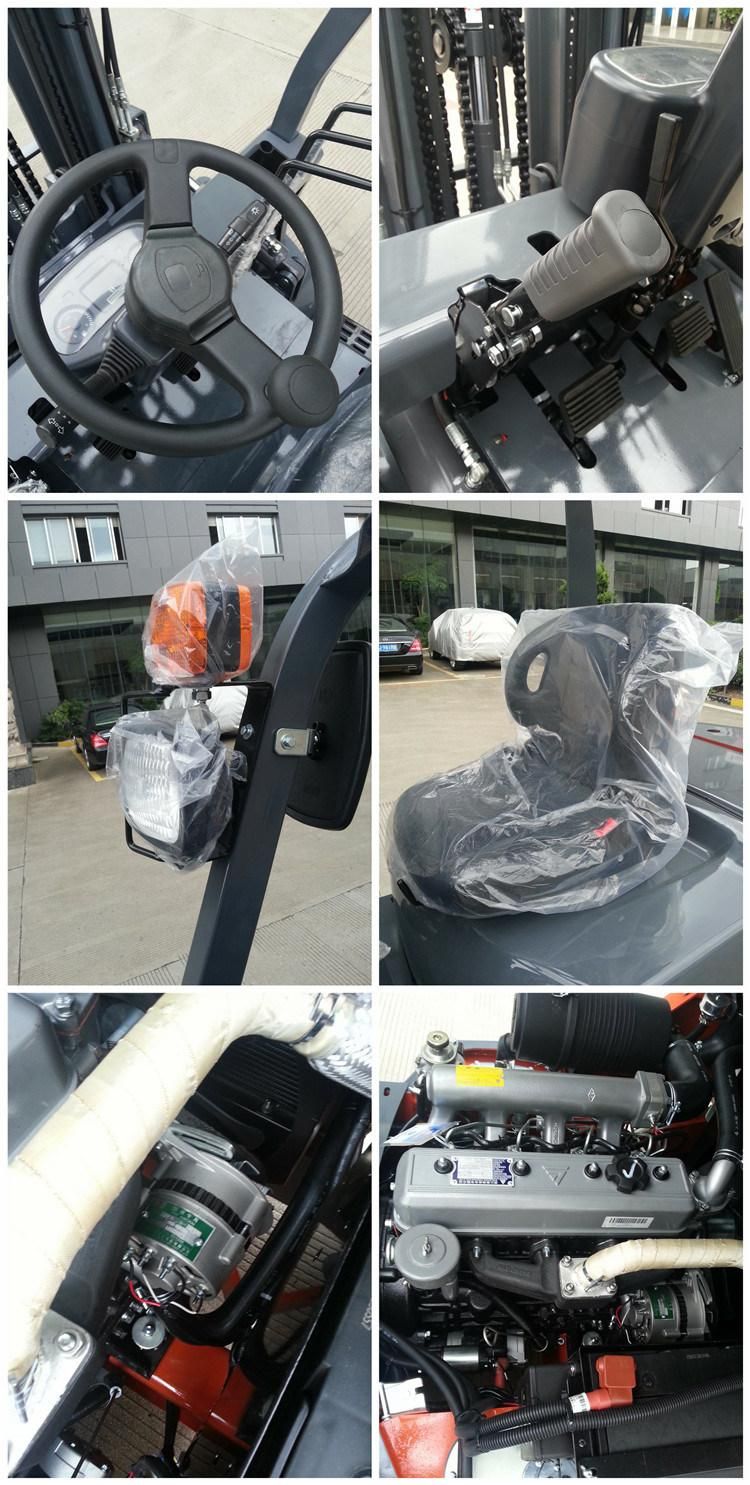

Details
Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment


Packiging&shipping

Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment

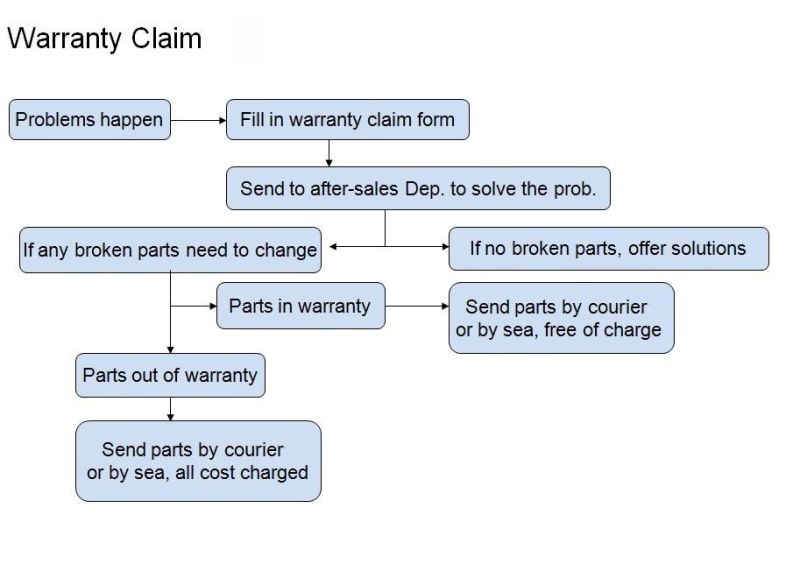

After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment
Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment



Our company

Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment
Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment


Our customer

Ltmg New Forklift 1ton 2ton 3ton 4ton Diesel Forklift Truck with Customized Engine and Attachment


FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

4. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

5.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
