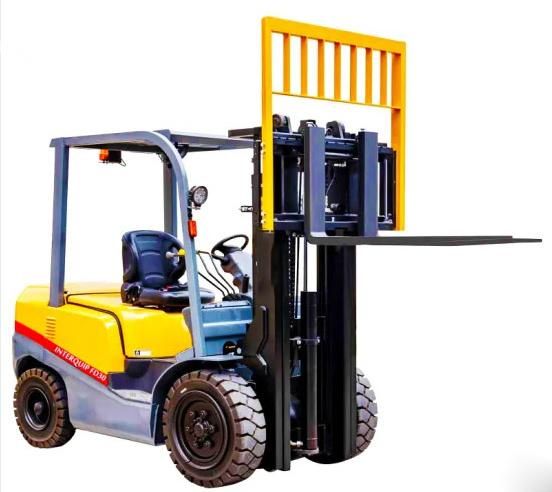

• Model NO.：FD25T FD30T FD35T
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Model：Fd25t Fd30t Fd35t
• Fork Size：1220X125X50mm
• Tire Type：Pneumatic Tire
• Transmission：Automatic Transmission
• Mast：Duplex Mast (Triplex Mast Optional)
• Certification：CE,ISO
• Engine：Xinchai,Isuzu,Mitsubish
• Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
• Transport Package：Wooden Package
• Specification：2760x1240x2130mm(LXWXH)
• Trademark：TEU
• Origin：China
• HS Code：8427209000
• Production Capacity：100 Sets , Month

Overview Product Description

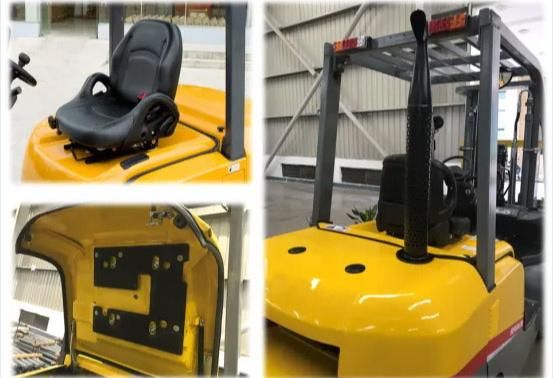

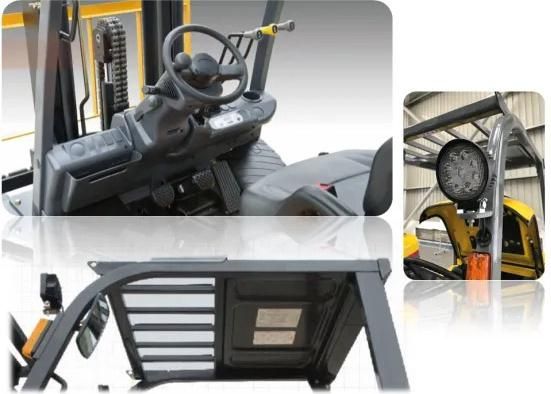

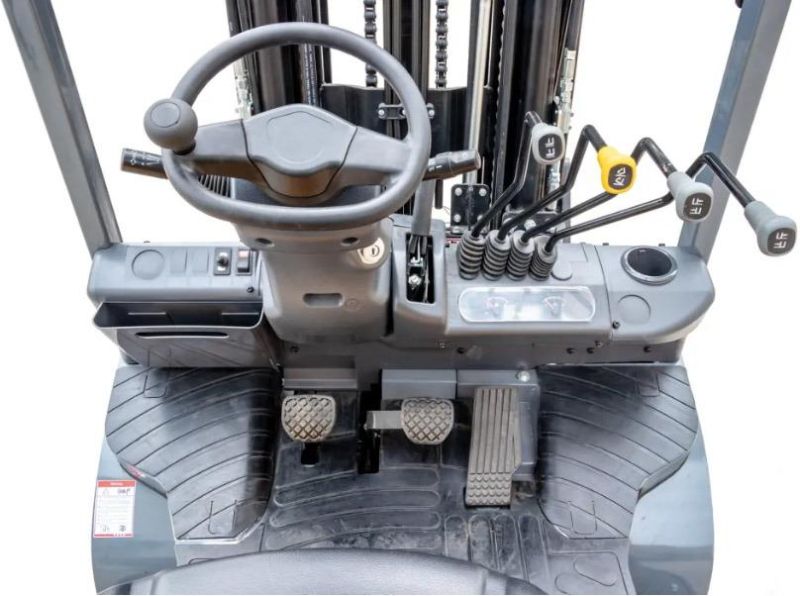

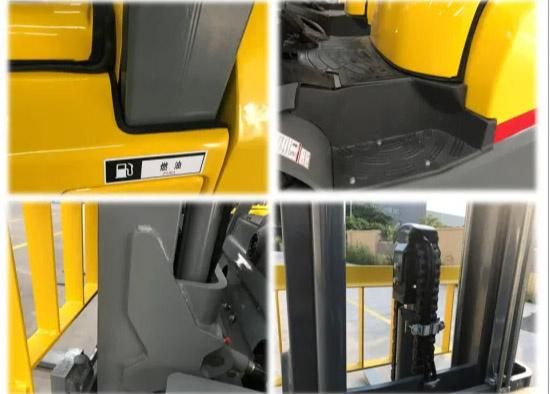

Detailed Photos

Product ParametersFD35TSpecificationsPower Unit DieselOperator Type Driver/seatTransimission Box Type Electronic hydraulic transmissonRated Capacitykg3500Load Centermm500Max.Lifting Heightmm3000Tire Type Pneumatic TyreTire Number Front 2Rear2Tire Size Front 28×9-15-14PRRear 6.5-10-10PRPerformanceLifting SpeedLoadedmm/s500Unloaded550Lowering Speed Loadedmm/s480Unloaded450Travelling Speed Loadedkm/h19Unloaded20Max.Gradeability (Loaded)%21Max.Drawbar Pull (Loaded) kg18Mast Tilting Angle (Fwd/Bwd) deg6/12Free Lifting Heightmm150Turning Radius mm2460DimensionsOverall Length (with fork)mm2760Overall Widthmm1240Overhead Guard Heightmm2130Fork Size (LxWxT)mm1220×125×50Mast Height (Fork lowered)mm2140Battery (Voltage/Capacity)V/Ah12/90Truck Weightkg4780Fuel Tank CapacityL70EngineBrand  XINCHAIMITSUBISHISUZUModel C495S4S4JG2Rated Powerkw/rpm42/265035.3/225044.8/2450Rated torquen-m/rpm174/1600169/1700186/1800Number Of Cylinder 444Displacement 2.82.493Company Profile

Our Advantages

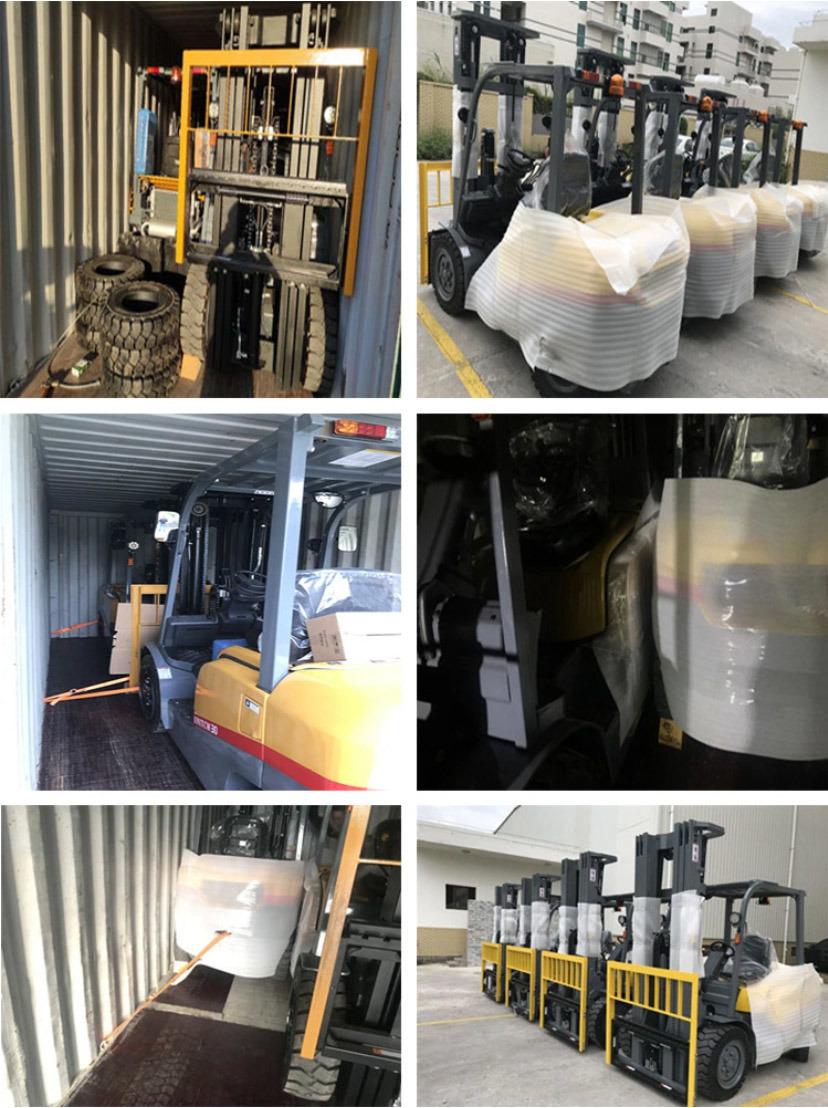

Packaging & Shipping

Exhibition

FAQ1. Are you the TEU forklift dealer?
Yes, we have been TEU forklift dealer for more than 5 years.

2. What is your MOQ for forklift?
The MOQ is 1 set forklift.

3. Do you have the after-sale service?
Yes, TEU has the internationla after sale service.

4. What trade terms do you accept?
FOB, CIF, EXW
