3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

Jinan Shine International Trade Co., Ltd.
  • After-sales Service：Online
  • Warranty：15 Months
  • Cab Location：Not Adjustable
  • Type：Reach Forklift
  • Power：AC Motor
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：YB20
  • Fuel：Electric
  • Load center：500mm
  • Lift height：3000mm-11000mm
  • Condition：New
  • Controller：USA Curtis
  • Tire：Polyurethane
  • Mast：Duplex,Full Free Lift Mast
  • Color：Customer Customized

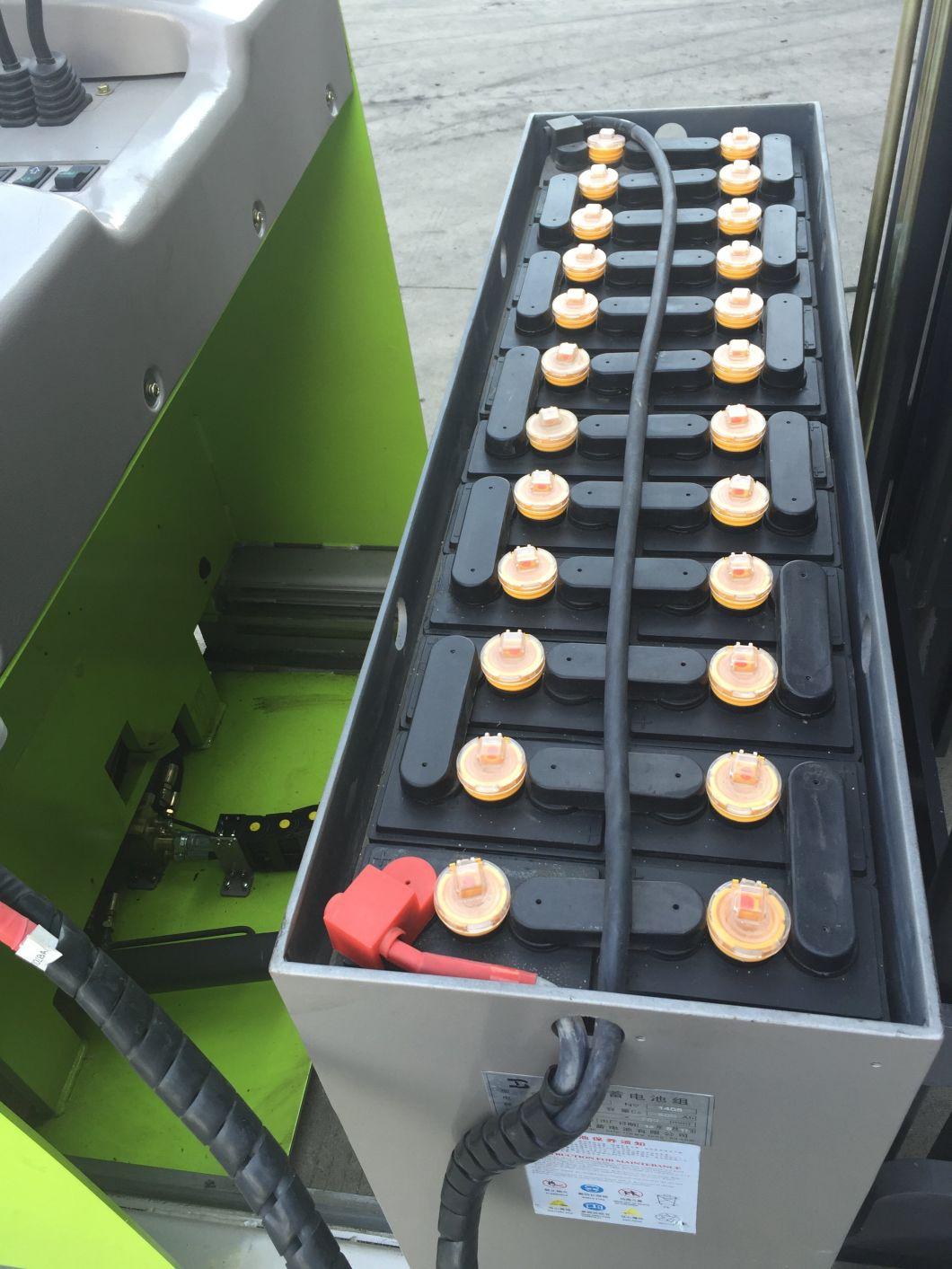

  • Battery Voltage/Rated Capacity：48V,500ah
  • Motor：AC
  • Charger：Shineng
  • Battery：Torch
  • OEM Serviece：Yes
  • Transport Package：Container Shipment
  • Specification：3332kg
  • Trademark：SNSC
  • Origin：China, Wuhu
  • HS Code：84271090
  • Production Capacity：15000pieces,Years

Description

No. YB20-S21PowerBattery2Operator typeSeated3Rated capacity20004Centre of load6005Front overhang3786Wheelbase15707Curb weight (battery included)33328Axle loading (none load) driving/bearing1580/17529Axle loading (full load&mast extended) driving/bearing783/162910Axle loading (full load&mast retracted) driving/bearing1942/339011Tire driving/bearingPU/PU12Driving tire size φ343X14013Bearing tire size φ350×10814Auxiliary tire size--15Wheel No. driving/bearing (x=driven)1x/216Track width,drive wheel-17Track width,load wheel118618Fork carriage tile angle,forward/backward2/4 19Height of mast,lowered219020Free lifting height128521Lifting height450022Height of mast,extended551023Height of overhead guard(cab)218024Height of reach legs37825Overall length264226Length to fork face142227Overall width1270/129428Fork dimensions40*122*122029Fork carriage installation Level DIN 151732A30Fork outer width,minumum/maximum244/75031Width between reach legs92032Reach travel58533Ground clearance,mast8034Ground clearance,centre of wheelbase9035Aisle width,pallet 1000×1000 pallet crossways266836Aisle width,pallet 800×1200 pallet lengthways286737Outer turning radius182538Travel speed, laden/ unladen9/9.539Lifting speed, laden/ unladen260/36040Lowering speed, laden/ unladen500/40041Forward speed laden/ unladen10042Maximum gradeability, laden/ unladen10/1543Accelerating time laden/ unladen5.8/544Drive motor6.445Lift motor1146Steer motor0.647Battery voltage/capacity(5h)4848Battery weight78649Type of drive controlMOSFET50Working pressure18051Steering angle1803-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS SteeringFor daily maitenance of the battery, you don't need to hang up the battery box. Simply using a box handle controller, you can automatically remove and replace the battery box.3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

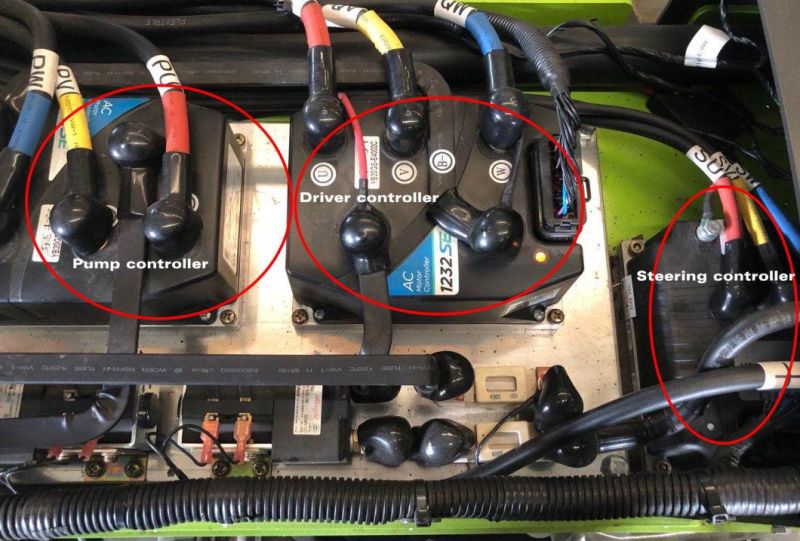

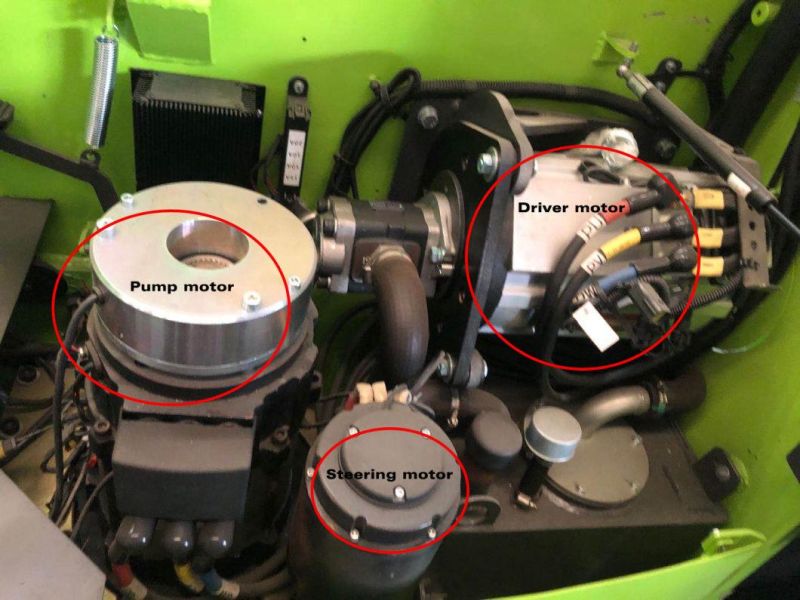

Drive motor for forwarder and backwarder; Pump motor for liftingand down; Steering motor for electric steer.
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

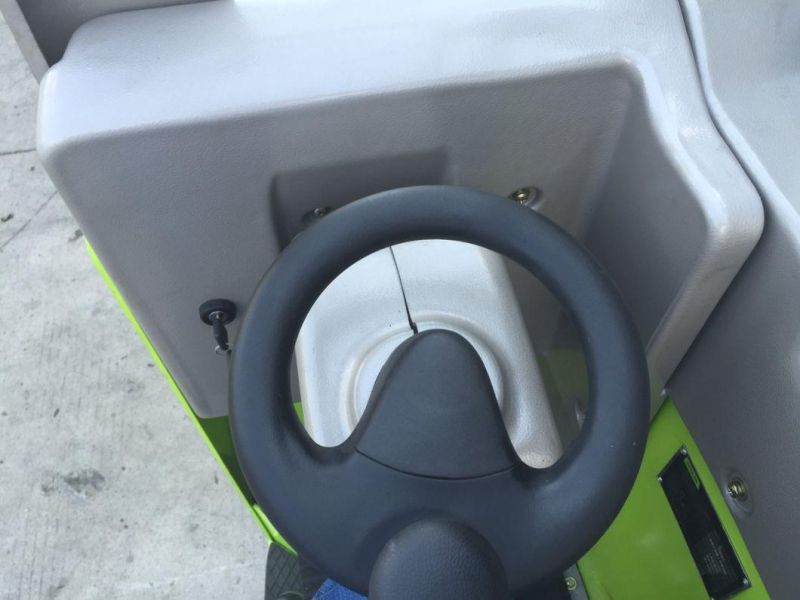

Fully electric steering system ensure flexible turning and free maintenance.
3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

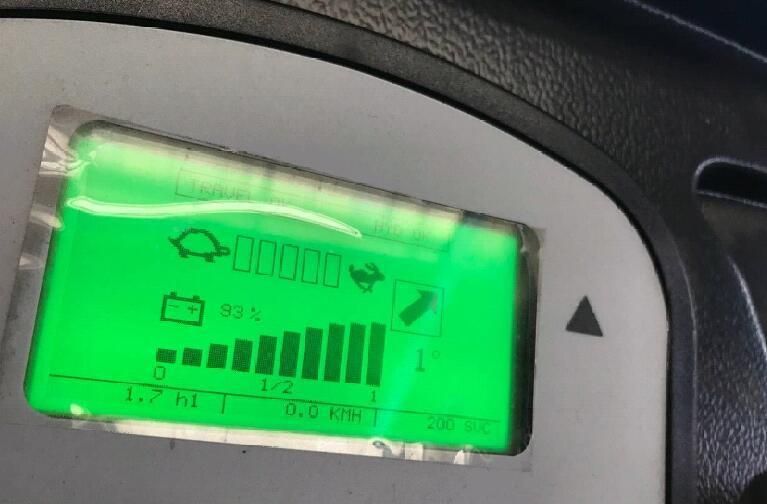

MultifunctionintelligentCURTIS LCD display with using time, faultcode,battery status, forklift running information,Speed mode setting(E.S.H, economic, slow, high). the fault codekeep operator and service engineer aware of any problems, speed up repair and prevent damage.
