• Model NO.：CPD10ET
• Condition：New

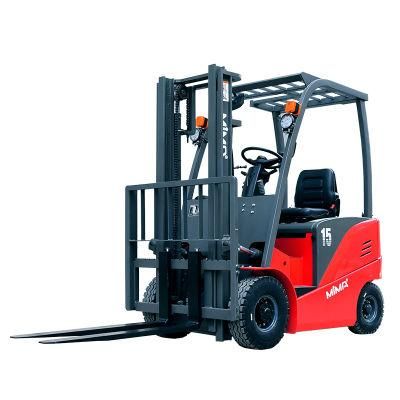

• Name：High Quality 1ton Small Electric Forklift (Cpd10et
• Transport Package：Seaworthy Packing
• Specification：CE, SGS, ISO
• Trademark：SHYTGER
• Origin：Shanghai, China
• HS Code：84271010
• Production Capacity：3000units,Year

 Characteristics1.1Manufacturer SHYTGERSHYTGER1.2Model designation CPD10ETCPD12ET1.3Drive unit BatteryBattery1.4Operator type Rider seatedRider seated1.5Load capacityQ (kg)100012001.6Load centerc (mm)4005001.8Wheelbasex (mm)2252251.9Load distancey (mm)11501150 Weights2.1Service weight (Incl. battery)kg183019402.2Axle loading, loaded front/ rearkg2470/3602670/4702.3Axle loading, unloaded front/ rearkg800/1030800/1140 Wheels, Chassis3.1Tyre type PUPU3.2Tyre size, operator side 285/108285/1083.3Tyre size, load side 230/75230/753.5Wheels, number front/ rear (x=drive wheels) 2/12/13.6Tread, frontb10 (mm)8308303.7Tread, rearb11 (mm)____ Dimensions4.1Mast/ fork carriage tilt, forward/ backwardα/ β (°)2°/2°2°/ 2°4.2Height, mast loweredh1 (mm)198019804.3Free lifth2 (mm)1201204.4Lift heighth3 (mm)293029304.5Height, mast extendedh4 (mm)388538854.7Height of overhead guard (cabin)h6 (mm)198519854.8Seat heighth7 (mm)9709704.12Tow coupling heighth10 (mm)____4.19Overall lengthl1 (mm)253025304.2Length to face of forksl2 (mm)161016104.21Overall widthb1/ b2 (mm)9489484.22Fork dimensionss/ e/ l (mm)920×100×35920×100×354.23Fork carriage type 2A2A4.24Fork carriage widthb3 (mm)8008004.31Ground clearance, loaded, below mastm1 (mm)85854.32Ground clearance, center of wheelbasem2 (mm)95954.33Aisle width, 1000×1200 pallet crosswaysAst (mm)310031604.34Aisle width, 800×1200 pallet lengthwaysAst (mm)285030004.35Outer turning radiusWa (mm)14501450 Performance5.1Travel speed, loaded/ unloadedkm/ h6/6.56/6.55.2Lifting speed, loaded/ unloadedm/ s0.13/0.20.12/0.25.3Reach speed , loaded/ unloadedm/ s0.14/0.1250.14/0.1255.5Drawbar pull(loaded/unloaded)N____5.6Maximum drawbar pull, loaded S2 5 min.N____5.7Gradeability ( loaded/unloaded )%6/86/85.8Maximum gradeability, loaded/ unloaded S2 5 min.%____5.9accelerating time, loaded/unloadeds____5.1Service brake Hydraulic/mechanicalHydraulic/mechanical Drive6.1Drive motor rating S2 60 min.kW1.51.56.2Lift motor rating at S3 15%kW336.3Battery standard ____6.4Battery voltage/ rated capacity V/ Ah24/ 36024/ 3606.5Battery weight kg360360Battery dimensions l/ w/ hmm____6.6Energy consumptionKw/ h____ Others8.1Type of drive control ACAC8.2Operating pressure for attachmentbar____8.3Hydraulic oil volume of attachmentsl/ min____8.4Sound level at operator's eardB (A)70708.5Tow bolt ____
