Environmental Protection 5000lbs 2 Ton 2.5ton Electric Forklift Price
XIAMEN LTMG CO., LTD.- Cab Location：Not Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：2.5 Ton
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：FB25
- Lift height：3000~5000mm
- Condition：New
- Fork Size：1070mm*120mm*40mm
- Weight：3900kg
- Wheelbase：1500mm
- Battery：60V-360ah
- Max. Lifting Height：3000mm
- Power Unit：Battery
- Tire Type：Pneumatic
- Ground Clearance：110mm
- Gradeability：13~15
- Transport Package：Container
- Specification：2353mm*1170mm*2098mm
- Trademark：LTMG
- Origin：China
- HS Code：8427109000
- Production Capacity：800sets,Year
Description
Model FB20 FB25 Rated Capacity kg 2000 2500 Load Centre mm 500 500 Lift Height mm 3000 3000 Fork Size (L×W×T) mm 1070×120×40 1070×120×40 Mast Tilt Angle F/R (α°/β°) Deg 6/12 6/12 Length to fork face of fork (Without fork) mm 2353 2353 Overall Width mm 1150 1170 Mast Lowered Height mm 1995 1995 Mast Extended Height (With backrest) mm 4045 4045 Overhead Guard Height mm 2098 2098 Turning Radius (outside) mm 2172 2172 Front Overhang (Wheel center to fork face) mm 440 440 Tread (Front/Rear) mm 970/950 970/950 Ground Clearance (Bottom of mast) mm 110 110 Wheelbase mm 1360 1500 Fork Spread (Min./Max) mm 240/1040 240/1040 Travel Speed km/h 12~14 12~14 Lifting Speed (Full load) mm/s 320~450 320~450 Max. Gradeability % 13~15 13~15 Service Weight kg 3600 3900 Front Tire×2 23x9-10 23x9-10 Rear Tire×2 18×7-8 18×7-8 Driven Motor kw 7.5 7.5 Lift Motor kw 6 8 Battery Standard V/Ah 60/360 60/360
Product Features
1.Equipped with Chinese Famous Brand Controller or original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3.Equipped with full set of LED lamps, which are brighter and energy saving
4.At the rear of the forklift truck equipped with a rear combination lamp, includes tail lights, brake lights, backup lights and flash warning light function, which greatly improved the visibility at the back of the forklift truck.

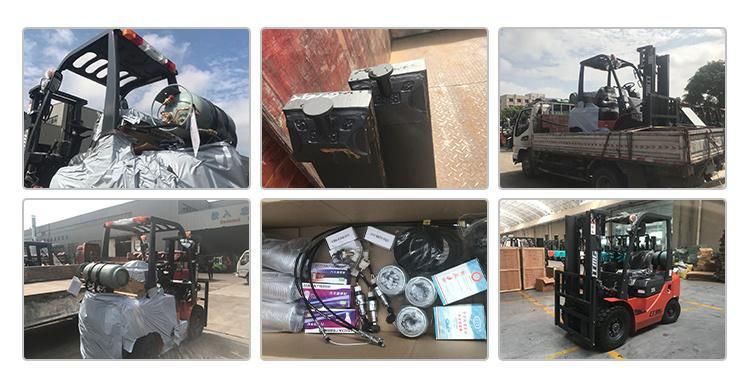

Shipping & Packaging
About us
Exhibition & Customer
After sales service
Product Features
1.Equipped with Chinese Famous Brand Controller or original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3.Equipped with full set of LED lamps, which are brighter and energy saving
4.At the rear of the forklift truck equipped with a rear combination lamp, includes tail lights, brake lights, backup lights and flash warning light function, which greatly improved the visibility at the back of the forklift truck.
Shipping & Packaging
About us
Exhibition & Customer
After sales service
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
