Hecha Forklift 4 Ton Diesel Forklift Truck

HECHA INTELLIGENT EQUIPMENT CO., LTD.
  • Type:Powered Pallet Truck
  • Power:Diesel Engine
  • Load Capacity:1T - 5T
  • Fuel:Diesel
  • Load center:500mm
  • Lift height:3000~5000mm

Base Info

  • Model NO.:MiniFD40t
  • Condition:New
  • Colour:Red
  • Transport Package:International Standed Packing
  • Specification:CE ISO9001: 2008 GOST
  • Trademark:HECHA
  • Origin:China
  • HS Code:8427109000
  • Production Capacity:150PCS,Month

Description

HECHA MINI 4.0T Diesel Forklift Specification  General1Model FD40T2Power type Diesel3Rated capacitykg40004Load centermm5005Operator type Seated6Tyre typeFront/Rear Pneumatic7Number of wheels(X=driven))Front/Rear 2 X /2Dimensions8Lifting heightmm30009Free lift heightmm17010Fork sizeLxWxTmm1070×150×5011Mast tilt rangeF/R 6/1212Overall Length(Without fork)mm310013Overall widthmm134014Mast lowered heightmm211015Mast extended heightmm410016Overhead guard heightmm215017Turning radius(Outside)mm264018Fork overhang(Wheel center to fork face)mm51019Min.right angle stacking aisle width (Add load length and clearance)mm262020Wheelbasemm190021Tread Frontmm103022Rearmm97023Ground clearancemm150Performance24Travelkm/h1925Max.Drawbar PullFull load/No loadKN19/172627Max.GradeabilityFull load/No load%15Weight28Self weightkg4950Wheels29TyresSpecFront 250-1530Rear 6.50-10-10PRBrake31Brake typeDriving brake Hydraulic32Parking brake Mechanical hand brake 33BatteryVoltage/CapacityV/AH12V/80AH34TransmissionModel type Powershift (Manual)35StageFWD/RVS 1/1(2/2)36Operating pressureMpa1737Fuel tank capacityL80

All Hecha forklifts come with:

- comlpete set of working lights
- buzzer
- reverse alarm light
- mirrors
- seat belt
- complete set of maintanance tools


Options:

  • Side shift
  • Buit-in forkpositioner + side shift
  • Paper clamps / brick clamps
  • Cushion tires
  • Double front tires
  • Extra hydrolic valves
  • Full free lift triplex mast
  • Lifting heights up to 6000 mm
  • Extra LPG tanks

3.After sevice

1)  We provide excellent after service:

Our company consists of sales department after sale service department, dealer customer

relationship center, finance department and administrate department to offer you a wonderful

service.

2)  We guarantee the quality and free repalcement, our warranty period is 12 month,within 12 months if you have any quality problems, except for electrical parts, because they are easily damaged if mis-installation.

3) If you have any questions, pls feel free to contact us, we are always here to help.

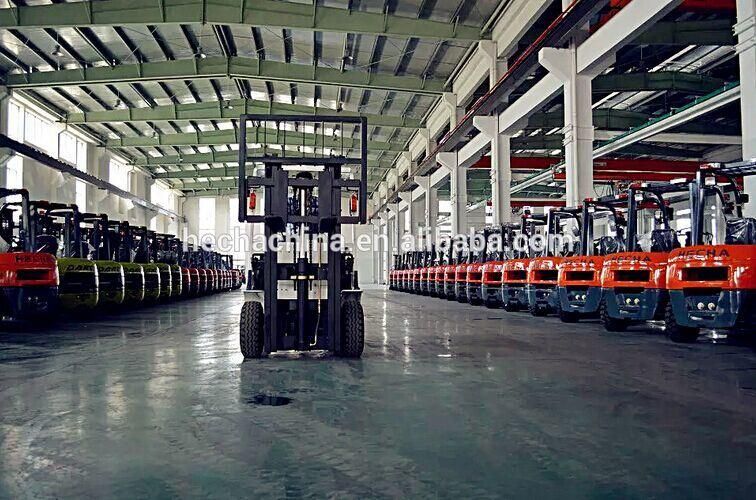

Company show


Hecha Forklift 4 Ton Diesel Forklift Truck

Heli forklift co., ltd. Is a dedicated forklift maker in China. It is located in Jiaxing city, Zhejiang Province, P.R China. With the area of about 80.000 square meters and the advanced product line, the company has totally invested 20million US dollars. With 11,000sqm modern assembling hall, the designed production capacity is 20000 units of forklifts per year.


Heli Forklift Co., Ltd insists on the philosophy "Quality First, Customers supreme" and targets to be the most professional and excellent player in China forklift industry. Branded "HECHA", the forklifts are very popular with its high performance, comfortable operation, good looking and reliable working. The company will continuously keep its advantages with strict QC system.


The product range we have covered is 1.0-7.0Ton Internal Combustion Forklift, 1.0-3.0Ton 4wheeler Battery Forklift and 1.0-2.0ton 3pointer Battery Forklift. All the forklifts can be supplied with necessary attachments for different material handling application. The company will continuously strengthen the research force and enlarge the range of the products to meet the different demand of domestic and overseas customers.


What we are pursuing is to supply the best forklifts with best service. Welcome to join HECHA!

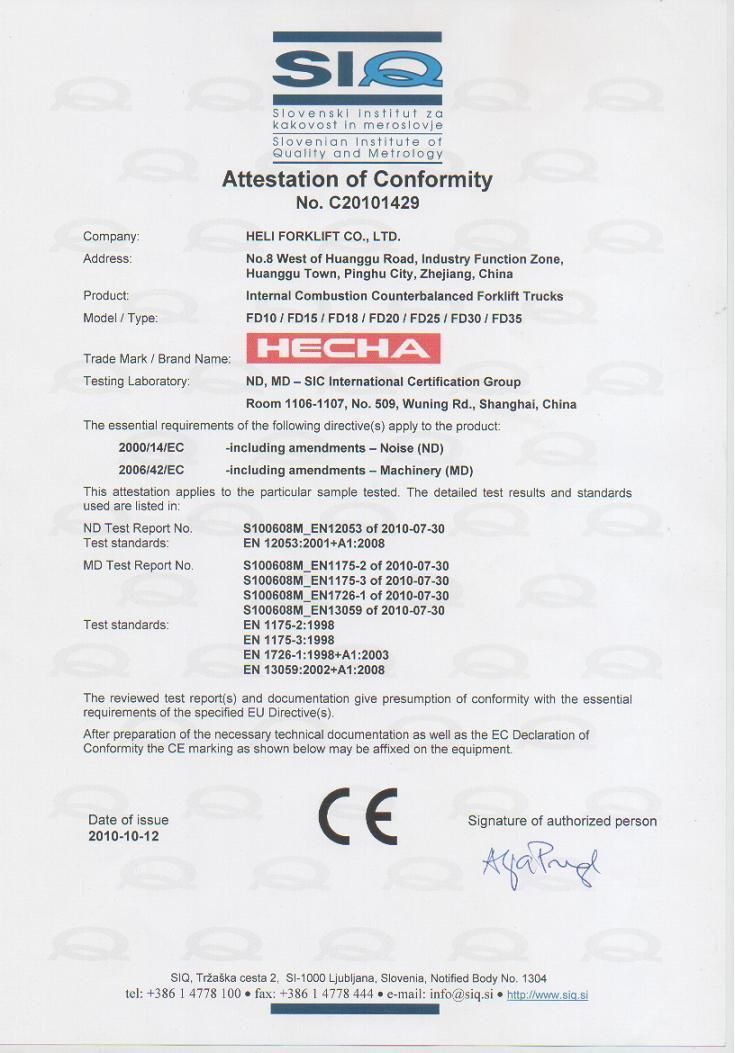

Certifications


Hecha Forklift 4 Ton Diesel Forklift Truck



4.Contact us

Judy HECHA forkliftAddress:No.8 West of Huanggu road, Industry Function Zone,Huanggu Town, Pinghu City, Zhejiang Province, China   Tel:+86-571-86095853Fax:0086-571-86098527                         Web:hechaforklift.en.made-in-china.com
