• HS Code：8428909090
• Production Capacity：10000pieces,Year

Basic Info.

HS Code 8428909090 Production Capacity 10000pieces/Year

Product Description

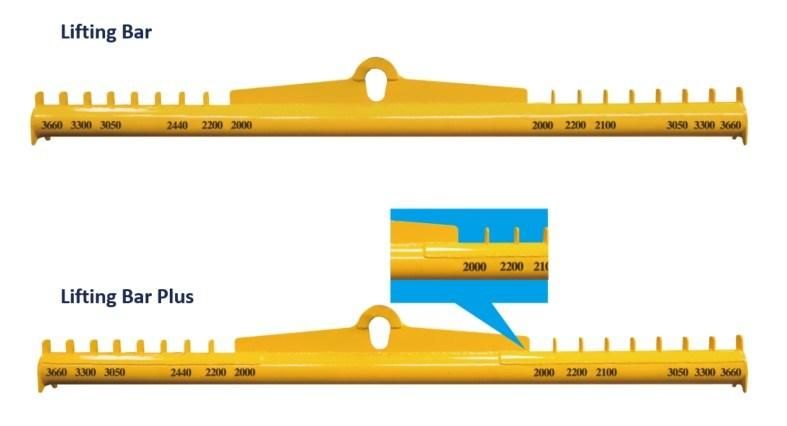

Glass Lifting Bar

 Description
The hanging bar has many advantages. Based on the different size of the glass pack, the hanging bar is a universal for the glass length from 2000mm-3600mm. Designed in accordance with the principles of mechanics, the longitudinal and transverse bearing capacity is precisely calculated, and a new style of perfectionist suspension bar is designed by using 3D model.

The diameter of seamless steel pipe ups to 146mm. The industrial-grade welding machine is used for deep penetration welding, and the welding point is polished finely without damaging the sling to ensure the safety of use. The surface is treated with epoxy paint to prevent rust and corrosion, UV, strong adhesion and long service life. There are eye-catching specifications on each position of the strap, which is more worry-free. Can be more customer requirements, special customization.
 Features
 Suitable for different size glassSeamless steel pipe with diameter ups to 146mmSmooth surface makes zero damage to the glass slingEpoxy paint, anti-rust and anti-corrosionEye-catching specification Specification


Model	RSY-XSDGO8
Capacity	4 tons
Length	3150mm
Diameter	146mm
Suitable glass length	2000,2200,2400,3050,3300,3600(mm)
Slots number	8

Notes:

The length of the glass sling should be glass tall plus 700mm
The length of the glass hanging bar should be the glass length minus 500mm

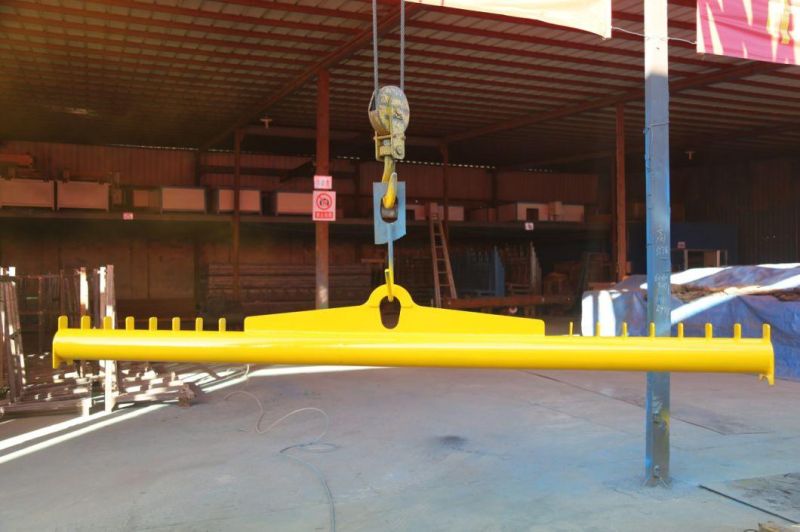

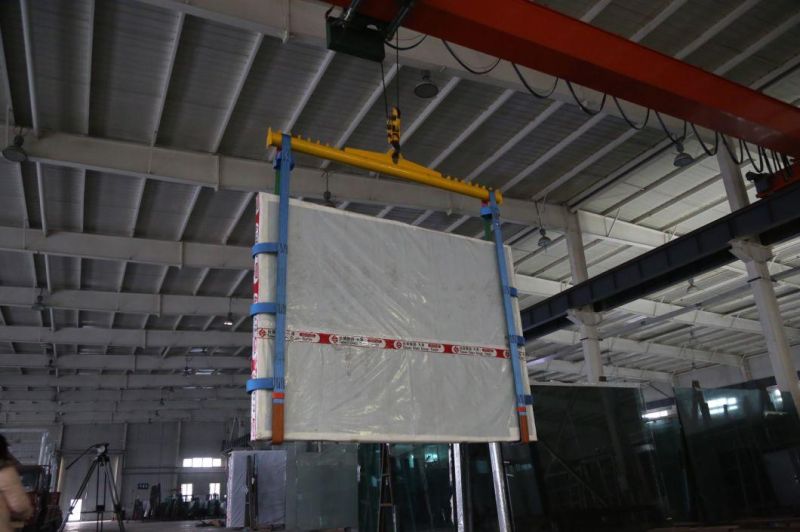

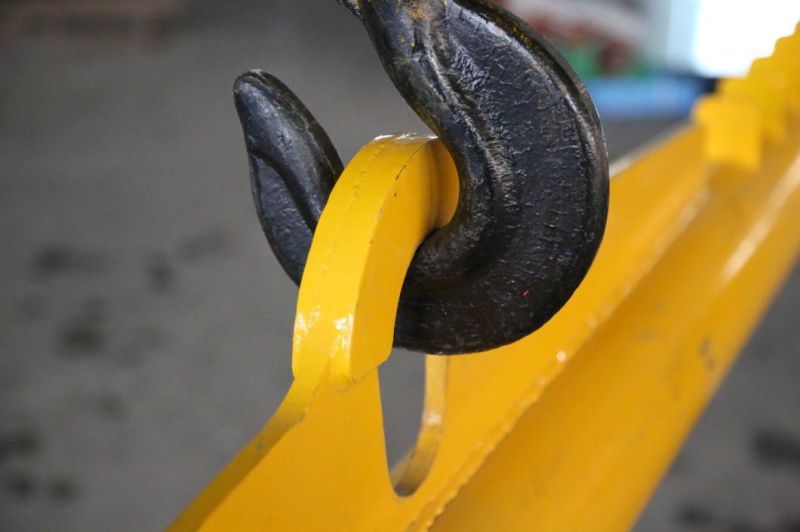

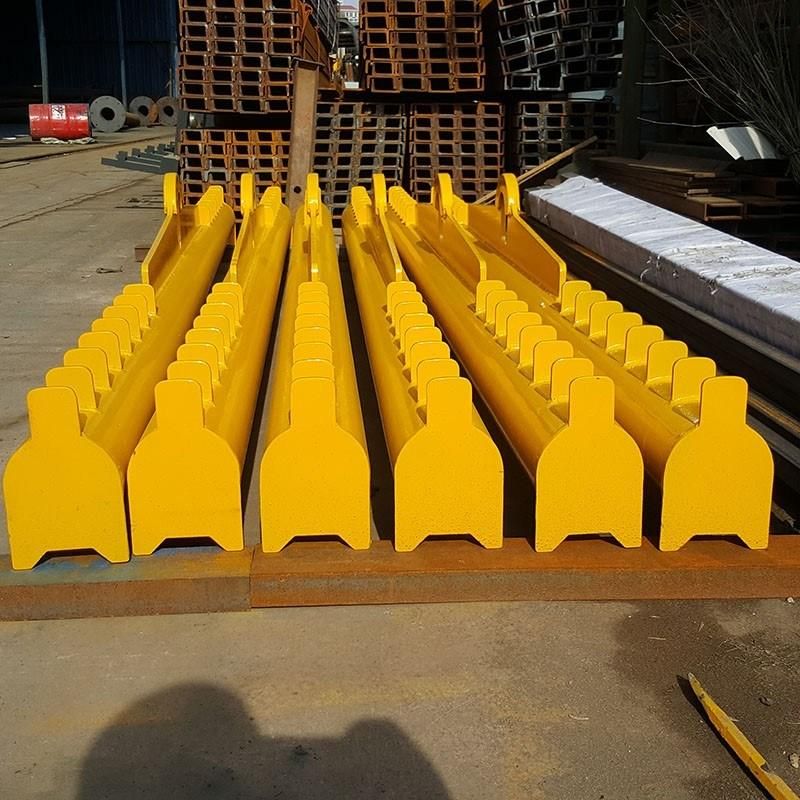

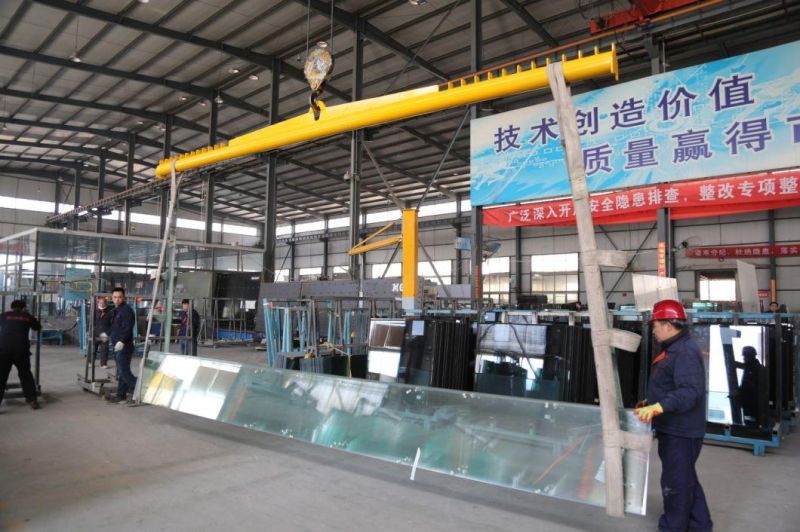

 Pictures Showing
