Good Price Chinese Engine Lifting Counterbalance Truck Diesel Forklift
Xiamen Hifoune Technology Co., Ltd.- After-sales Service：Available
- Warranty：Available
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Fuel：Diesel
- Load center：500mm
- Lift height：>5000mm
- Condition：New
- Engine：Xinchai,Isuzu,Mitsubish
- Weight：4500kg
- Rated Capacity：3500kg
- Fork Size：1220X125X50mm
- Transmission Box Type：Automatic Transmission
- Tire Type：Pneumatic Tire
- Transmission：Hydraulic
- Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
- Mast：Duplex Mast (Triplex Mast Optional)
- Color：Customized
- Certification：CE,ISO
- Transport Package：Container
- Specification：3840x1240x2145mm(LXWXH)
- Trademark：Hifoune
- Origin：Cn
- HS Code：8427109000
- Production Capacity：4500sets,Year
Description
ModelUNIT FD35T Specifications Power Unit Diesel Operator Type Driver/Seat Transimission Box Type Automatic Transimission Rated Capacity kg 3500 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type Pneumatic Tire Tire Number Front 2 Rear 2 Tire Size Front 28×9-15-14PR Rear 6.5-10-10PR Performance Lifting Speed Loaded mm/s 460 Unloaded 500 Lowering Speed Loaded mm/s 420 Unloaded 400 Travelling Speed Loaded km/h 20 Unloaded 21 Max.Gradeability (Loaded) % 20 Max.Drawbar Pull (Loaded) kn 17 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 150 Turning Radius mm 2415 Dimensions Overall Length (with fork) mm 3840 Overall Width mm 1240 Overhead Guard Height mm 2145 Fork Size (LxWxT) mm 1220×125×50 Mast Height (Fork lowered) mm 2140 Battery (Voltage/Capacity) V/Ah 12/90 Truck Weight kg 4500 Fuel Tank Capacity L 70 Engine Brand XINCHAI ISUZU MITSUBISH Model C490 4JG2 S4S Rated Power kw/rpm 40/2650 44.8/2450 35.3/2250 Rated torque n-m/rpm 160/1600-2000 186/1800 169/1700 Number Of Cylinder 4 4 4 Displacement 2.67 3.06 2.49
Shipping & Packing
About us

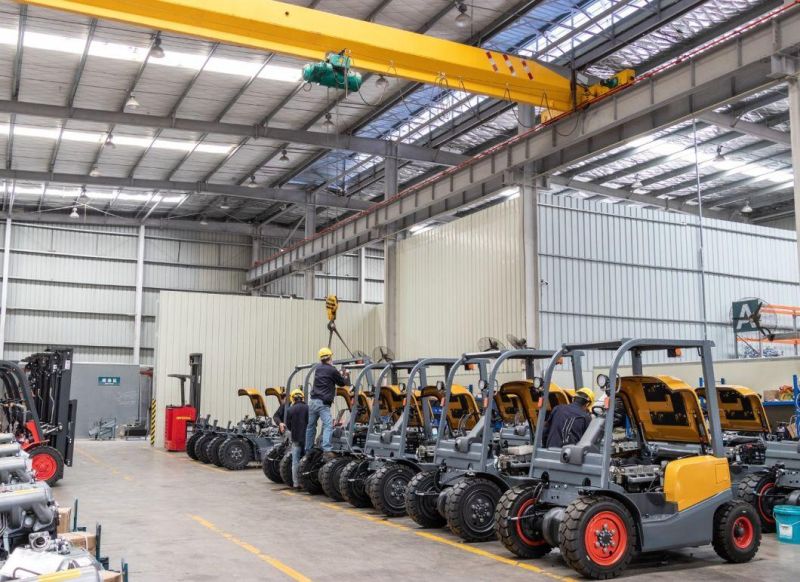

Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
