Forklifts & Parts

Ltmg Stand on 1.5 Ton 2 Ton 1.5t 2t Extended Reach Forklift for Sale

Xiamen LTMG Machinery Co., Ltd.
  • Cab Location:Not Adjustable
  • Type:Reach Forklift
  • Power:AC Motor
  • Load Capacity:1T - 5T
  • Fuel:Electric
  • Load center:500mm

Base Info

  • Lift height:>5000mm
  • Condition:New
  • Lifting Height:3000mm-7200mm
  • Certificate:ISO CE
  • Color:It Could Be Designed by Buyer
  • Max.Lifting Height:4000mm
  • Fork Dimensions:1070mm*100mm*35mm
  • Battery:48V,300ah
  • Operate Type:Stand-on
  • Wheel Type:Polyurethane Solid Tyre
  • Reach Stroke:560
  • Transport Package:Container
  • Specification:2266mm*1098mm*2580mm
  • Trademark:LTMG
  • Origin:China
  • HS Code:8427109000
  • Production Capacity:1000sets,Year

Description

Model No.FRB15Rated Capacity (KG)1500Operate TypeStand-onMax. Lifting Height (MM)4000Min. Turning Radius (MM)1625Min. Stacking Aisle---mm (1000*1000 Pallet)2622Max Travel Speed km/h-laden/unladen7.5/8.5Load center MM500Fork Dimensions-L/W/T---mm---8.1070*100*35Max. Gradeability ---%10Lifting Speed (MM/S)-laden/unladen117/243Overall Length (MM)2266Overall Width (MM)1098Height-Overhead guard--mm2320Height---Mast Lowered(MM)2580Height-Mast Extended w/ Load-Backrest -mm4885Height--Free Lift --mm100Tilt Angle----Upward/Downward--deg.3/5Fork Spread Range (MM)220-662Reach Stroke560Min Ground Clearance--mm80Wheel TypePolyurethane Solid TyreDriving Wheel (MM)Φ343×108Balance Wheel (MM)Φ180×76Front Wheel (MM)Φ267×114Battery V/AH- "TONGBA"BRAND48V /300 AHService BrakeMECH.Parking BrakeMECH.Charger-Intelligent48V/40ADriving Motor (KW)5.5 (AC)Lifting Motor (KW)6.3

Product Features
1.The large and strong chassis ensures sufficient stability of the forklift, with lifting height range from 3 to 6.2 meter.
2.Steel of mast is imported from Germany offers superior stability and safety.
3.Large and comfortable compartment with adjustable seat reflects a concept of ergonomic design. The stand type cab gives big operation space, offers the best visibility.
4.Rear axle is equipped with two separate floating devices, enhances stability in terms of structure, reduces the self-weight, and prolongs the use time of the driving wheel.


Packing&Shipping

Ltmg Stand on 1.5 Ton 2 Ton 1.5t 2t Extended Reach Forklift for Sale


Company Information

Ltmg Stand on 1.5 Ton 2 Ton 1.5t 2t Extended Reach Forklift for Sale


Our Customers

Ltmg Stand on 1.5 Ton 2 Ton 1.5t 2t Extended Reach Forklift for Sale

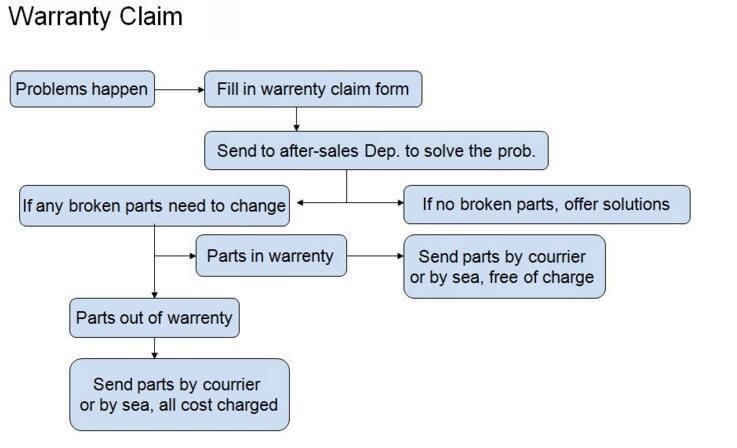

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.


Ltmg Stand on 1.5 Ton 2 Ton 1.5t 2t Extended Reach Forklift for Sale
