• Model NO.：(HL3.5T)-A7T74-30001-HL
• Advantage：Long Working Life
• Keywords：Steer Axle Assembly
• Transport Package：Inside PVC Bag, Outside Carton
• Specification：126*56*34 cm
• Trademark：Leading Forklift Parts
• Origin：China
• HS Code：8431209000
• Production Capacity：5000 PCS , Mounth

Basic Info.

Model NO. (HL3.5T)-A7T74-30001-HL Advantage Long Working Life Keywords Steer Axle Assembly Transport Package Inside PVC Bag, Outside Carton Specification 126*56*34 cm Trademark Leading Forklift Parts Origin China HS Code 8431209000 Production Capacity 5000 PCS / Mounth

Product Description

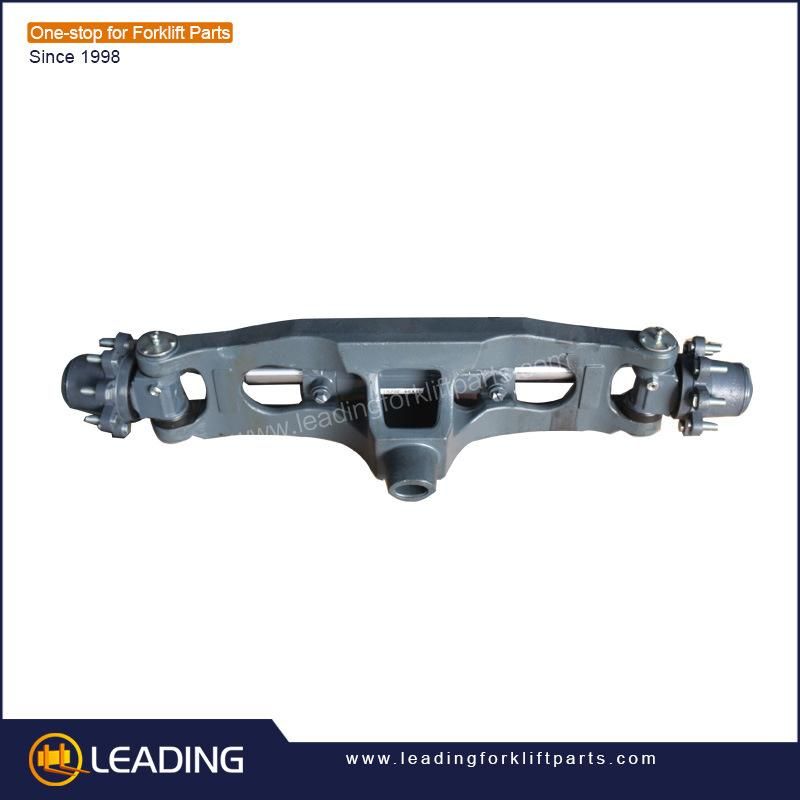

Product Title: Forklift steer axle assembly
Product Model: (HL3.5T)-A7T74-30001-HL Forklift steer axle assembly




Item	Description
Product Name	Forklift steer axle
P/N	(HL3.5T)-A7T74-30001-HL
Applied Model	For HELI electric forklift CPD3.5T  (HL genuine parts)
Net Weight (kg)	104
Gross Weight (kg)	120
Qty per Carton	1
Carton Size (cm)	126*56*34

The Forklift Rare Steer Axle Assembly Include Below:

1. Steer axle housing A02Z3-02052-HT (Genuine parts AQ) * 1
2. Power steering cylinder assembly A10C4-50201Y (genuine parts) * 1
3. Steering knuckle (left) H12C4-30401Z (overall forging) * 1
4. Steering knuckle (right) H14C4-30301Y (overall forging) * 1
5. Connecting rod H12C4-32041-XK  * 2
6. Steer wheel hub 24234-32221Y  * 2
7. Steer knuckle king pin 24234-32181YT * 2
8. Curved neck grease nipple Q701B90  * 4
9. Locking screw M12 * 35  * 2
10. Bearing 7206E (30 * 62 * 18) * 2
11. Bearing 7208E (40 * 80 * 20) * 2
12. Needle bearing 97942 / 25-HC  * 4
13. Plane bearing 198905-ZH-Y  * 2
14. Joint bearing GE15ES-JJ  * 4


Forklift Steer Axle Characteristics

The forklift is mainly used for loading and unloading short-distance transportation in the warehouse. The working site is small and the steering is frequent. Therefore, the forklift has higher steering requirements than other vehicles, such as a small turning radius, and light and flexible steering.

The steering axle of the forklift is the rear axle of the forklift, while the steering axle of automobile is the front axle. The rear axle steering structure of the forklift can make the forklift have flexible steering in a small environment such as a warehouse.

The forklift steering axle is fixed to a support plate of rear chassis. There are installed a shock absorber block between the forklift steering axle and the steering axle support. The setting of the shock absorber block can effectively relieve the transmission of the vibration of the steering axle to the vehicle body, thereby improving the stability of the whole vehicle, improving the working efficiency of the forklift and reducing noise.
