3.0ton Forklift Truck Cpcd35 Diesel Forklift 3 Tons Cpcd30

HECHA INTELLIGENT EQUIPMENT CO., LTD.
  • Type:Diesel
  • Power:Diesel Engine
  • Load Capacity:1T - 5T
  • Fuel:Diesel
  • Load center:500mm
  • Lift height:3000~5000mm

Base Info

  • Condition:New
  • Color:Orange
  • Transport Package:Standard
  • Specification:CE ISO9001: 2008 GOST
  • Trademark:HECHA
  • Origin:China
  • HS Code:8427209000
  • Production Capacity:2000PCS Years

Description

HECHA 3.0T Diesel forklift specification  General1Model FD30T4Power type Diesel2Rated capacitykg30003Load centermm5005Operator type Seated6Tyre typeFront/Rear Pneumatic7Number of wheels(X=driven))Front/Rear 2 X /2Dimensions8Lifting heightmm30009Free lift heightmm14510Fork sizeLxWxTmm1070x125x2511Mast tilt rangeF/R 6/1212Overall Length(Without fork)mm269813Overall widthmm122514Mast lowered heightmm207015Mast extended heightmm425016Overhead guard heightmm209017Turning radius(Outside)mm240018Fork overhang(Wheel center to fork face)mm49819Min.right angle stacking aisle width (Add load length and clearance)mm288536Wheelbasemm170037Tread Frontmm100038Rearmm97039Ground clearanceLowestmm13540Wheel base centermm140Performance20SpeedTravelFull loadkm/h1821No loadkm/h19.522LiftingFull loadmm/s45023No loadmm/s50024LoweringFull loadmm/s45025No loadmm/s50026Max.Drawbar PullFull load/No loadkg1100/10001350/10002728Max.GradeabilityFull load/No load%15/1819/20Weight29Self weightkg428030Wheel distributionFull loadFrontkg645531Rearkg82532No loadFrontkg172033Rearkg2560Wheels34TyresSpecFront 28*9-15-12PR35Rear 6.50-10-10PRBrake41Brake typeDriving brake Hydraulic42Parking brake Mechanical hand brake 43BatteryVoltage/CapacityV/AH12/100 44Operating pressureMpa17.5











All Hecha forklifts come with:

- comlpete set of working lights
- buzzer
- reverse alarm light
- mirrors
- seat belt
- complete set of maintanance tools






Options:



  • Side shift
  • Buit-in forkpositioner + side shift
  • Paper clamps / brick clamps
  • Cushion tires
  • Double front tires
  • Extra hydrolic valves
  • Full free lift triplex mast
  • Lifting heights up to 6000 mm
  • Extra LPG tanks





3.After sevice



1)  We provide excellent after service:



Our company consists of sales department after sale service department, dealer customer

relationship center, finance department and administrate department to offer you a wonderful

service.



2)  We guarantee the quality and free repalcement, our warranty period is 12 month,within 12 months if you have any quality problems, except for electrical parts, because they are easily damaged if mis-installation.



3) If you have any questions, pls feel free to contact us, we are always here to help.

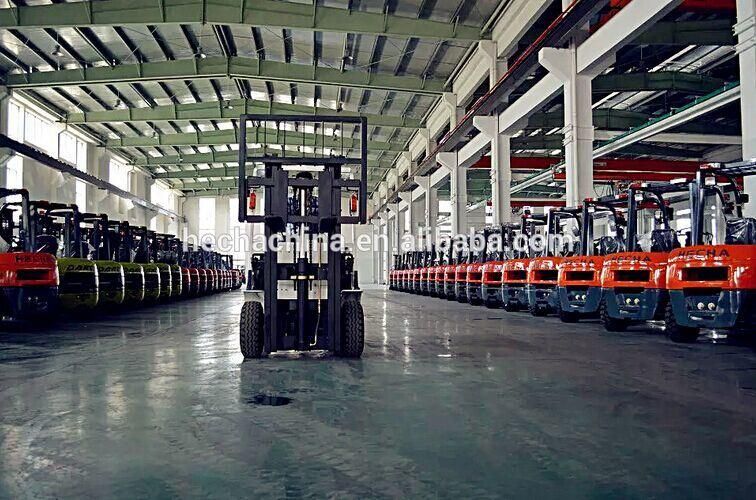

Company show




3.0ton Forklift Truck Cpcd35 Diesel Forklift 3 Tons Cpcd30



Heli forklift co., ltd. Is a dedicated forklift maker in China. It is located in Jiaxing city, Zhejiang Province, P.R China. With the area of about 80.000 square meters and the advanced product line, the company has totally invested 20million US dollars. With 11,000sqm modern assembling hall, the designed production capacity is 20000 units of forklifts per year.


Heli Forklift Co., Ltd insists on the philosophy "Quality First, Customers supreme" and targets to be the most professional and excellent player in China forklift industry. Branded "HECHA", the forklifts are very popular with its high performance, comfortable operation, good looking and reliable working. The company will continuously keep its advantages with strict QC system.


The product range we have covered is 1.0-7.0Ton Internal Combustion Forklift, 1.0-3.0Ton 4wheeler Battery Forklift and 1.0-2.0ton 3pointer Battery Forklift. All the forklifts can be supplied with necessary attachments for different material handling application. The company will continuously strengthen the research force and enlarge the range of the products to meet the different demand of domestic and overseas customers.


What we are pursuing is to supply the best forklifts with best service. Welcome to join HECHA!
