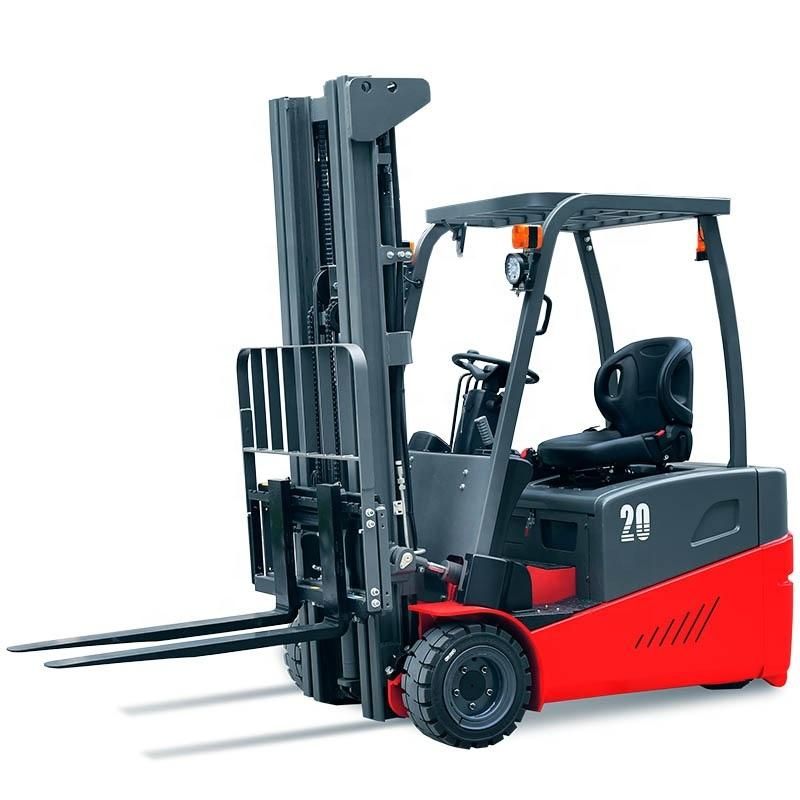

1600kg Small Three Wheels Mini 3 Wheel Electric Forklift
Hangzhou Vans Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Electric Forklift
- Power：Battery
- Load Capacity：1.6-2t
Base Info
- Model NO.：TKC16
- Fuel：Electric
- Load center：500mm
- Lift height：3000mm
- Condition：New
- Name：Electric Forklift
- Key Words：Battery Forklift
- Use：Material Handling Equipment
- Transport Package：Standard Packing
- Specification：As per model
- Trademark：VSM
- Origin：China
- HS Code：8427109000
- Production Capacity：15000 Units,Year
Description
VSM 3-wheel electric forklift
Main Features:
1.electric counterbalance forklift use Advanced Curtis controller, more stable and safer.
2.Multi-function digital instrument makes the operators to know the status of the forklift in time.
3.Electric power steering, teering lightly and lower energy consumption.
4.Wide-view gantry design to improve work efficiency.
5.Maintenance-free dual AC front drive system makes the vehicle react more quickly and accurately, and the power is stronger.
/Special for cold storage ;
/Power strength, double AC driving system of front wheel ;
/EPS,steering flexible;
/Intelligent instrument;
/Bigger operate space, operator feel comfortable;
/Low gravity center design.
Main Specifications
Our Services
Main Features:
1.electric counterbalance forklift use Advanced Curtis controller, more stable and safer.
2.Multi-function digital instrument makes the operators to know the status of the forklift in time.
3.Electric power steering, teering lightly and lower energy consumption.
4.Wide-view gantry design to improve work efficiency.
5.Maintenance-free dual AC front drive system makes the vehicle react more quickly and accurately, and the power is stronger.
/Special for cold storage ;
/Power strength, double AC driving system of front wheel ;
/EPS,steering flexible;
/Intelligent instrument;
/Bigger operate space, operator feel comfortable;
/Low gravity center design.

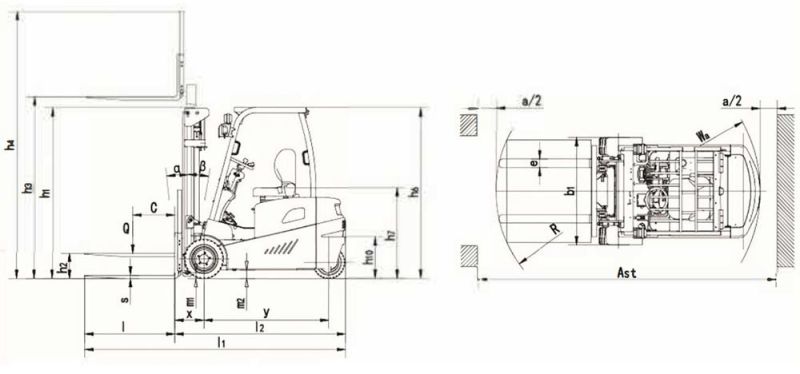

Main Specifications
| Brand | VSM | VSM | |
| Model | TKC16 | TKC20 | |
| Power Type | Battery | Battery | |
| Operation Type | Seated | Seated | |
| Rated Capacity | Q(kg) | 1600 | 2000 |
| Load Center | C(mm) | 500 | 500 |
| Mast closed height | h1(mm) | 1995 | 1995 |
| Lift height | h3(mm) | 3000 | 3000 |
| Mast extended height | h4(mm) | 4030 | 4030 |
| Overall length | L1(mm) | 3090 | 3090 |
| Overall width | b1/b2(mm) | 1250 | 1250 |
| Forks size | l/e/s(mm) | 1070/100/35 | 1070/100/40 |
| Turning radius | Wa(mm) | 1660 | 1660 |
| Driving speed(load/unload) | km/h | 12/13 | 12/13 |
| Lifting speed(load/unload) | mm/s | 260/340 | 260/340 |
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Photos&Videos for your order before shipment.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Whole lifetime supply for spare parts.
The following items are optional:
Color: Yellow, red, orange, green, blue or customized.
Mast: Standard wide-view 2 stage mast, wide-view 2-stage full free mast, wide-view 3-stage full free mast.
Power source: Diesel, Gasoline, LPG,CNG,AC/DC electric forklift are available.
