• Model NO.：SS201020, SS301100
• Trademark：BFP
• Origin：China
• HS Code：8431209000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. SS201020, SS301100 Trademark BFP Origin China HS Code 8431209000 Production Capacity 10000PCS/Year

Product Description

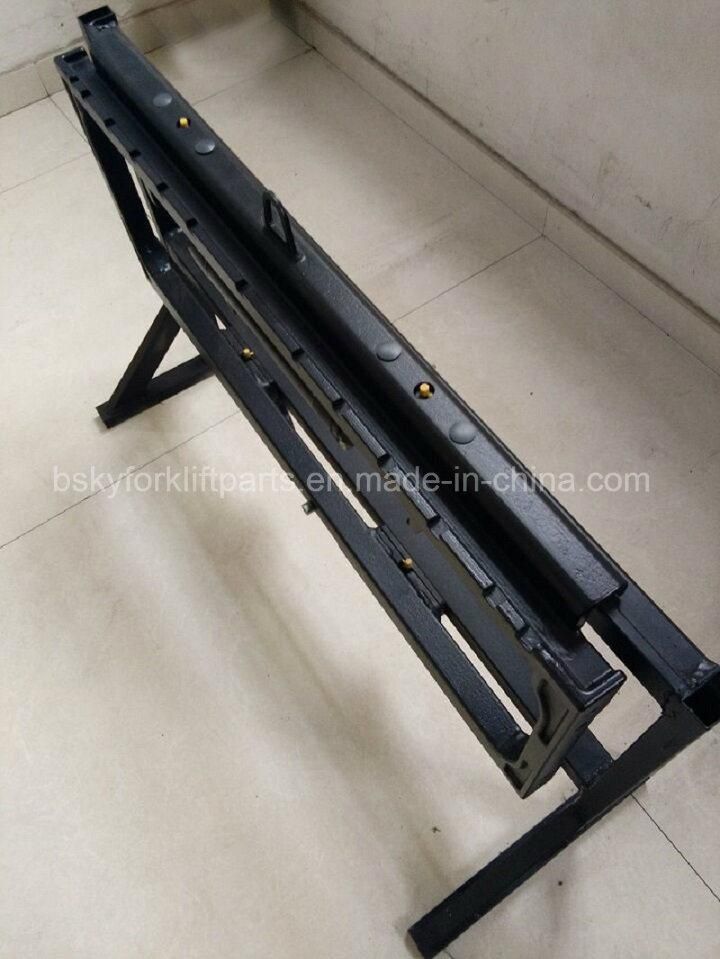

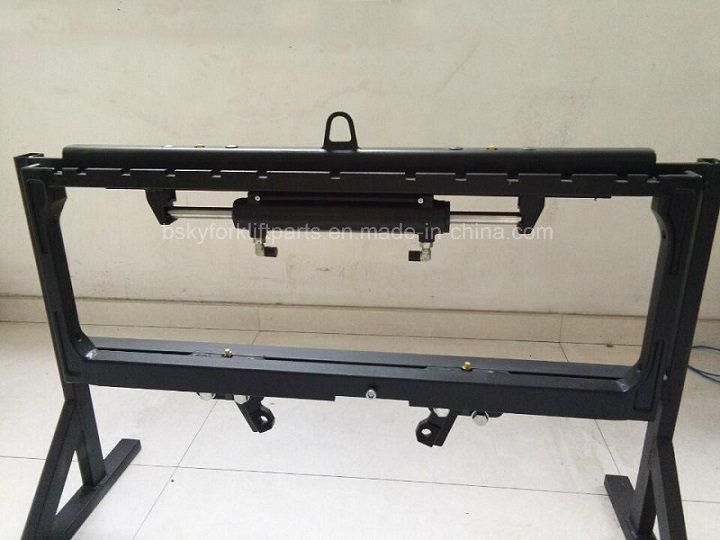

S modle Side Shifer

1. From 1ton to 10ton.

2.Frame made of rolled bar to offer a good looking.

3.30% overloaded with 3times  speed to test it's heavy-duty and impacting ability.

4.20000 times shifting test  to prove non-leakage seal ability.

5. High durability nylon pads will long life and less maintainance cost.

6. Very competitive cylinder, seal kits and Nylon pads make much less service cost.

7. Frame width available from 800mm to 1600mm for 2A,3A and 2400mm for 4A.

Model	Class	Width	Capacity	Width	Capacity
		mm	kg	inch	lb
SS200920	II	920	≤ 2500	36	≤ 5500
SS200940	II	940	≤ 2500	37	≤ 5500
SS200980	II	980	≤ 2500	39	≤ 5500
SS201020	II	1020	≤ 2500	40	≤ 5500
SS201100	II	1100	≤ 2500	43	≤ 5500
SS201150	II	1150	≤ 2500	45	≤ 5500
SS201200	II	1200	≤ 2500	47	≤ 5500
S201380	II	1380	≤ 2500	54	≤ 5500
SS201400	II	1400	≤ 2500	55	≤ 5500
SS301020	III	1020	≤ 3500	40	≤ 7700
SS301100	III	1100	≤ 3500	43	≤ 7700
SS301150	III	1150	≤ 3500	45	≤ 7700
SS301200	III	1200	≤ 3500	47	≤ 7700
SS301250	III	1250	≤ 3500	49	≤ 7700
SS301300	III	1300	≤ 3500	51	≤ 7700
SS301350	III	1350	≤ 3500	53	≤ 7700
SS301400	III	1400	≤ 3500	55	≤ 7700

Packing & Shipment


Shipping	By sea
N.W.:	46-90kgs
Package	Wooden pallet
Packing size	10-20pcs/pallet
20ft container Qty	320pcs for Class II and Class III
