• Model NO.：cpcd25
• Condition：New
• Brand Name：Yto
• Rated Loading Capacity：2500kg
• Max. Lifting Height：3300mm
• Fork Length：1070mm
• Fork Width：125mm
• Overall Dimensions：2910*1480*2310mm
• Transport Package：Nude Package
• Specification：CE, ISO
• Trademark：YTO
• Origin：China, Anhui
• HS Code：2736404
• Production Capacity：1000

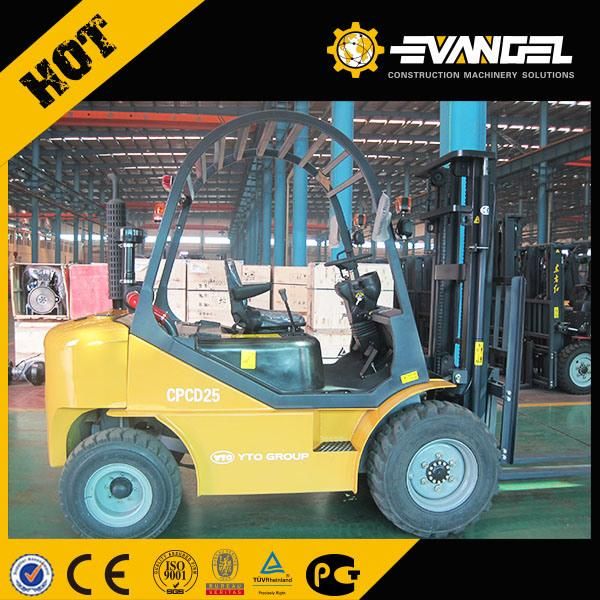

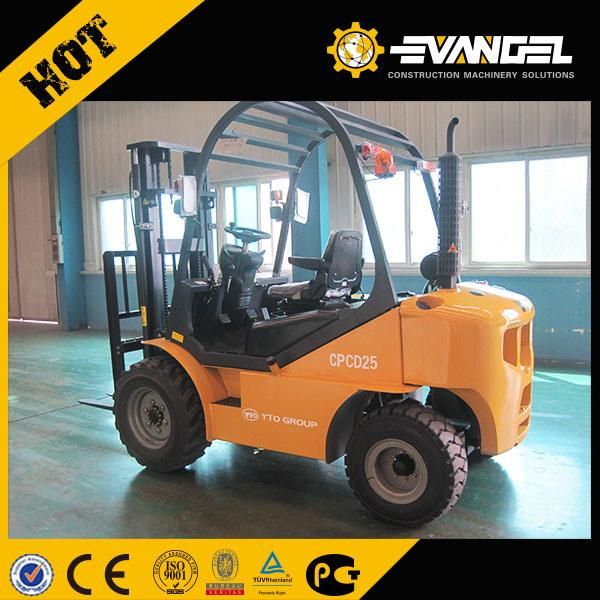

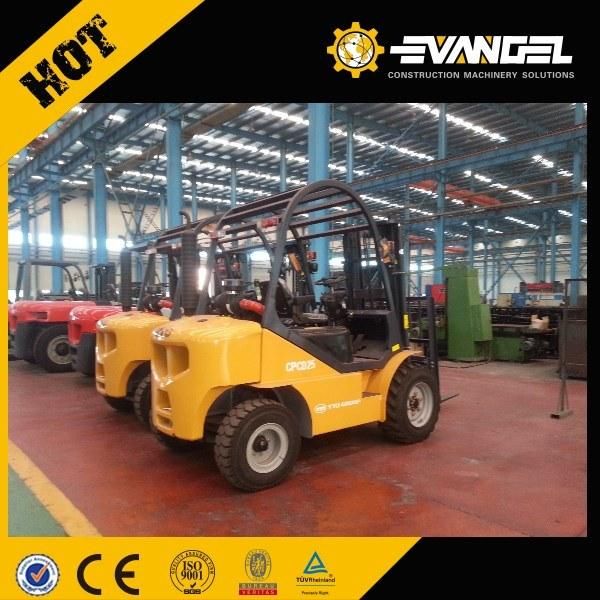

Technical Data for CPCD25 Forklift
Speciality parameter
Model
Unit
CPCD25
Power type
Diesel
Rated capacity
kg
2500
Load center
d
mm
500
Lift height
h2
mm
3000
(/)Mast tilt angle (forward/backward)
α/β
Deg
6/12
Wheel-base
L4
mm
1600
(/)Tread(front/rear)
b4/b5
mm
960/970
                                           Performance                 parameter
Travel brake
-Hydraulic-Foot pedal
Parking brake
-Mechanical-Hand level
(/)Lift speed(with/without load)
mm/s
550/600
(/)Lower speed (with/without load)
mm/s
(with load)<600 ,(without load)>300
(/)Travel speed (with/without load)
km/h
18/19
()Max. gradeability (with load)
%
20
(/)Max. Towing (with/without load)
kN
17/13
Power, transmission and others
                   Engine
Model
C490BPG
Manufacturer
Xinchang
Rated power
kw
40/2650
Max.   rotation
Nm/rpm
162/1800
Displacement
L
2.54
                         Battery
Voltage
V
12
Capacity
Ah
100
                       Gearbox
Transmission type
Hydraulic
(/)Gears,speed (front/rear)
I/I
                           Tire
   type
   Pneumatic tyre
                     Model
Front
7.00-12-12PR
Rear
6.00-9-10PR
                                 Others
Self.weight
kg
3540
Free lift height
h4
mm
160
Fork
×× Thickness×Width×Length
c×b×a
mm
40×125×1070

Overall dimensions
()Overall length(without forks)
L2
mm
2480
Overall width
b1
mm
1150

Overall height
Extended height(mast)
h1
mm
4030
Lower height(mast)
h3
mm
2000
Overhead guard
h7
mm
2120
Min. turning radius
Wa
mm
2240

Min. under ground clearance
Under mast
m1
mm
105
Center of wheel-base
m2
mm
150
