• Model NO.：CPCD50
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：5t
• Model No.：Cpcd50
• Payment Term：Tt or LC
• Delivery Time：10-20 Days
• Transport Package：Nude Package
• Specification：ISO9001
• Trademark：YTO
• Origin：China
• HS Code：8472090
• Production Capacity：100 Sets Per Month

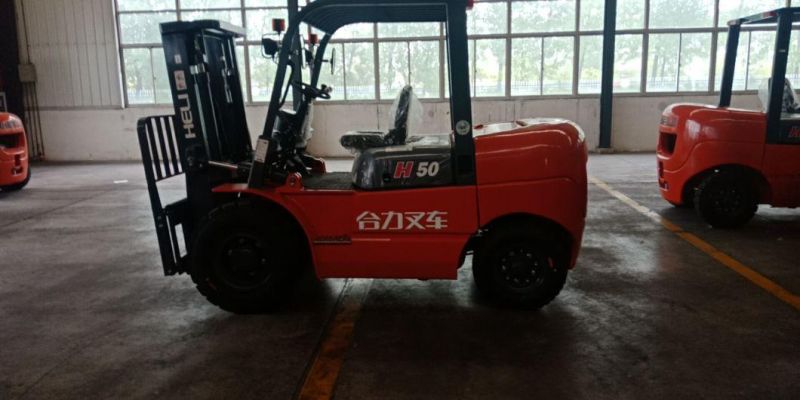

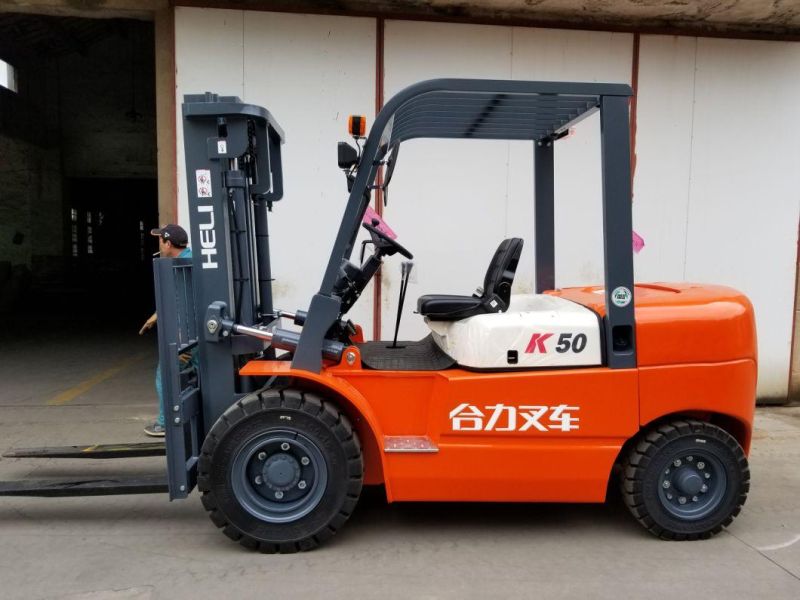

CPCD50A/B Internal Combustion Counter -balanced Forklift  (Hydraulical)
ModelUnitCPCD50ACPCD50B
Power type DieselDiesel
Rated capacitykg50005000
Load centermm600600
Lift heightmm30003000
Free lift heightmm195195
Mast tilt angle (Forward/Backward)Deg6° /12°6° /12°
Travel speed (with/without load)km/h20/2120/21
Max. gradeability (with load)%2020
Min. turning radiusmm33003300
Fork
Lengthmm12201220
Widthmm150150
Thicknessmm6060
(L× W× H)Overall dimensions(without forks)mm3510× 1995× 25003510× 1995× 2500
Tyre
Type Pneumatic tyresPneumatic tyres
Model
Front 8.25-15-14PR8.25-15-14PR
Rear 8.25-15-14PR8.25-15-14PR
Dead weightkg81008100
Engine
Model LR4B3-24LR6A3-22
Manufacturer YTOYTO
Rated outputkw64/240070/2200
Max. torqueN. m/r/min288/1700400/1600
DisplacementL4.5786.49
