• Lift height：3000~5000mm
• Condition：New
• Fork Length：1000mm
• General Dimension：1470,790,2040 mm
• Identification：Ce,ISO
• Guarantee Period：1 Year
• Fork Width：:220-940mm
• Lowered Height：90mm
• Color：Yellow
• Key Words：Pallet

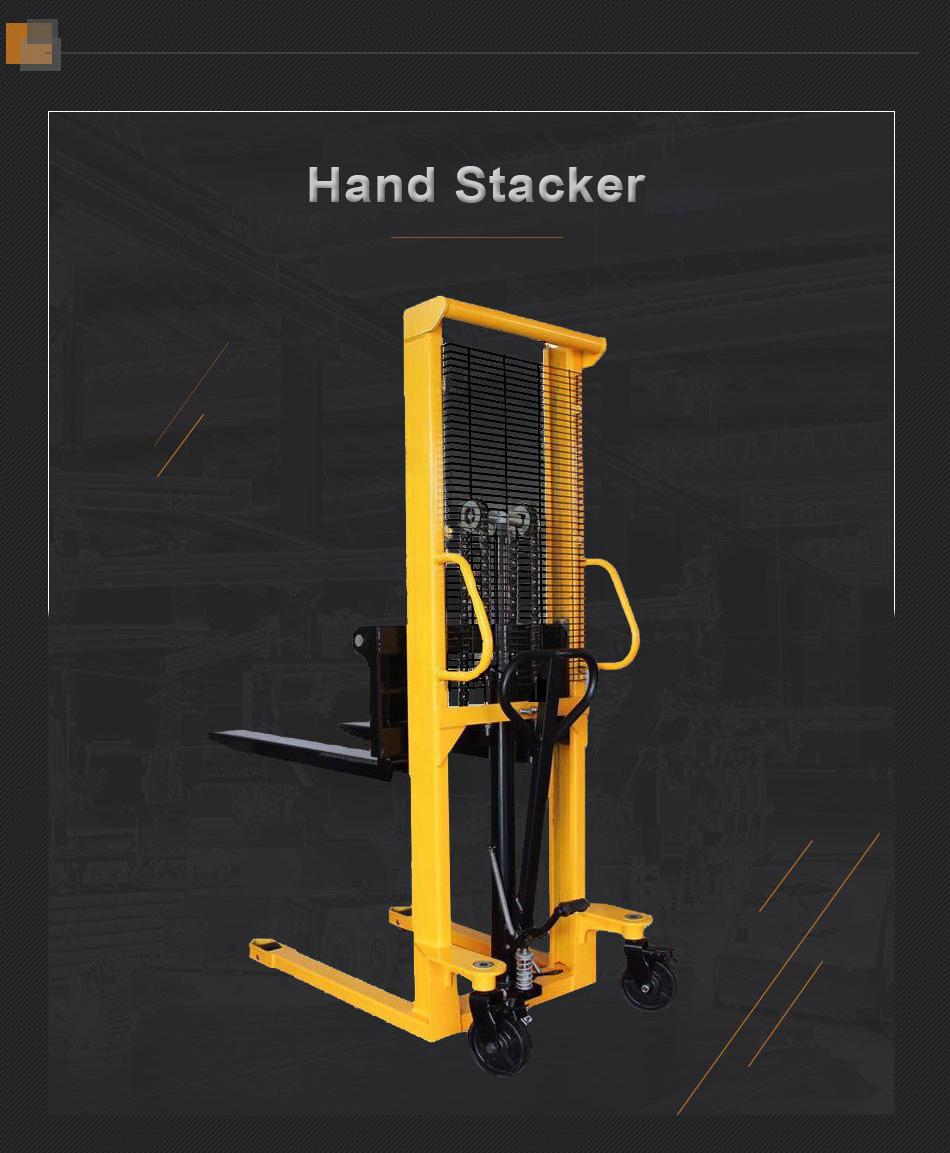

• Product Name：Hand Stacker
• Product Type：Internal Combustion Counterbalanced Forklift
• Transport Package：Box
• Specification：1470,790,2040 mm
• Trademark：TXK
• Origin：Shanghai
• Production Capacity：1000

Model NumberHS10-20SHS10-25SHS10-30SRated Capacity(Q)kg10001000Load Center(C)mm400400Min.Fork Heightmm9090Max.Fork Heightmm200025003000Fork Length(H)mm900900Fork Width(L)mm220-900220-900Min.Turning Radius(E)mm12501250Wheel Base(R)mm11001100Front-Wheel Distance(Y)mm210210Overall Length (X)mm13401340Overall Width (A)mm950950Overall Heigth (B)mm181018102060Overall Net Weight(H1)kg350355370
product description:

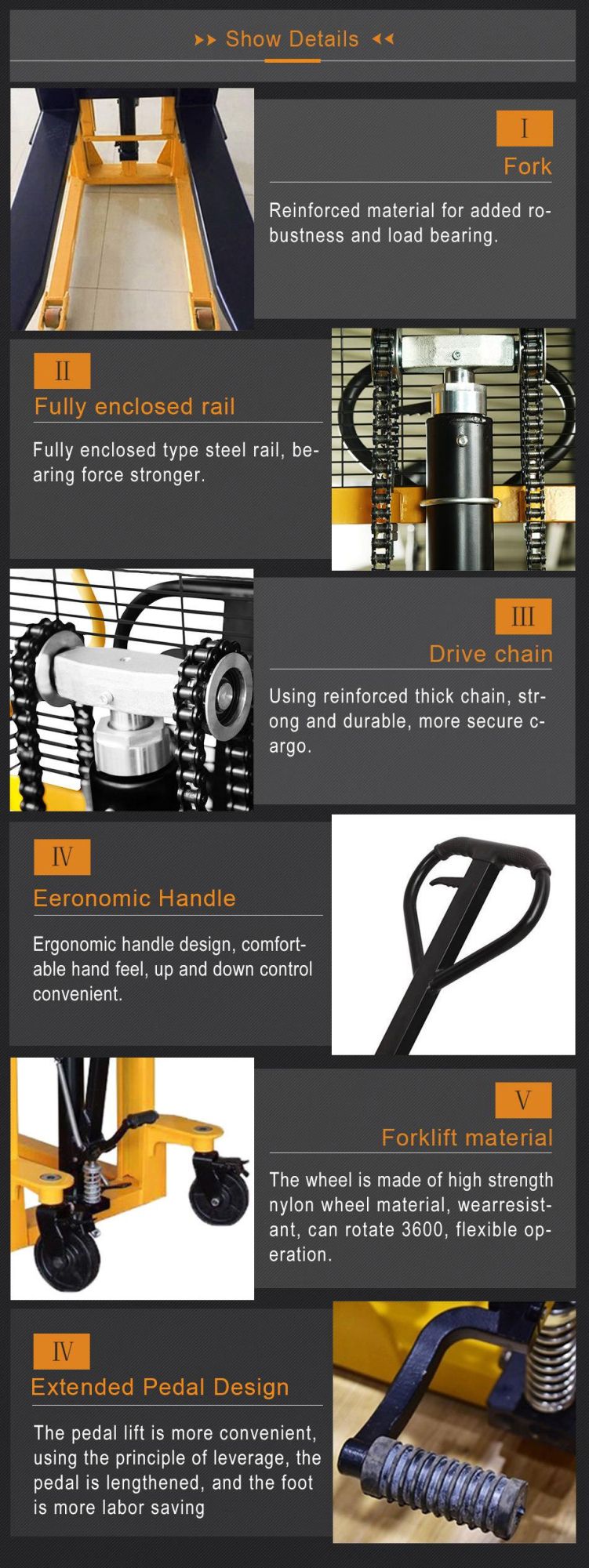

1,high quality cylinder and imported seal ring.Greatly improved sealing performance.Reduce maintenance cost by using high grade national standard channel steel door frame to ensure
Longer and safer use
2,flexible movement, safe operation, labor saving
3, two door frame design, in line with the European standards of ENl757
4, adjustable fork, fork adjustment range of 200- 900rnm
5,adjust the fork width symmetrically to prevent unbalanced load
