Accept Customized Rough Terrain Electric Forklift Truck Mount
JINING OKING TEC CO., LTD.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：3T,5T,7T
- Lift height：3000~5000mm
- Condition：New
- Rated Lifting Capacity：3000 Kg
- Center Distance of Load Rating：500mm
- Standard Mast Lifting Height：3000mm
- Free Lifting Height：145mm
- Rear Tire：18X7-8
- Front Tire：23X9-10
- Appearance of High：2110mm
- Max Braking Distance：4.5m
- Warranty：1year
- Color：Optional
- OEM：Accept
- Engine：Optional
- Motor：Optional
- Transport Package：Export Package
- Specification：2T,3T,3.5T,4T,5T,6T,7T
- Trademark：OUKE
- Origin：Shandong
- HS Code：8427109000
- Production Capacity：200
Description
Basic Info.
Model NO. 3T/5T/7T Lift height 3000~5000mm Condition New Rated Lifting Capacity 3000 Kg Center Distance of Load Rating 500mm Standard Mast Lifting Height 3000mm Free Lifting Height 145mm Rear Tire 18X7-8 Front Tire 23X9-10 Appearance of High 2110mm Max Braking Distance 4.5m Warranty 1year Color Optional OEM Accept Engine Optional Motor Optional Transport Package Export Package Specification 2T/3T/3.5T/4T/5T/6T/7T Trademark OUKE Origin Shandong HS Code 8427109000 Production Capacity 200Product Description

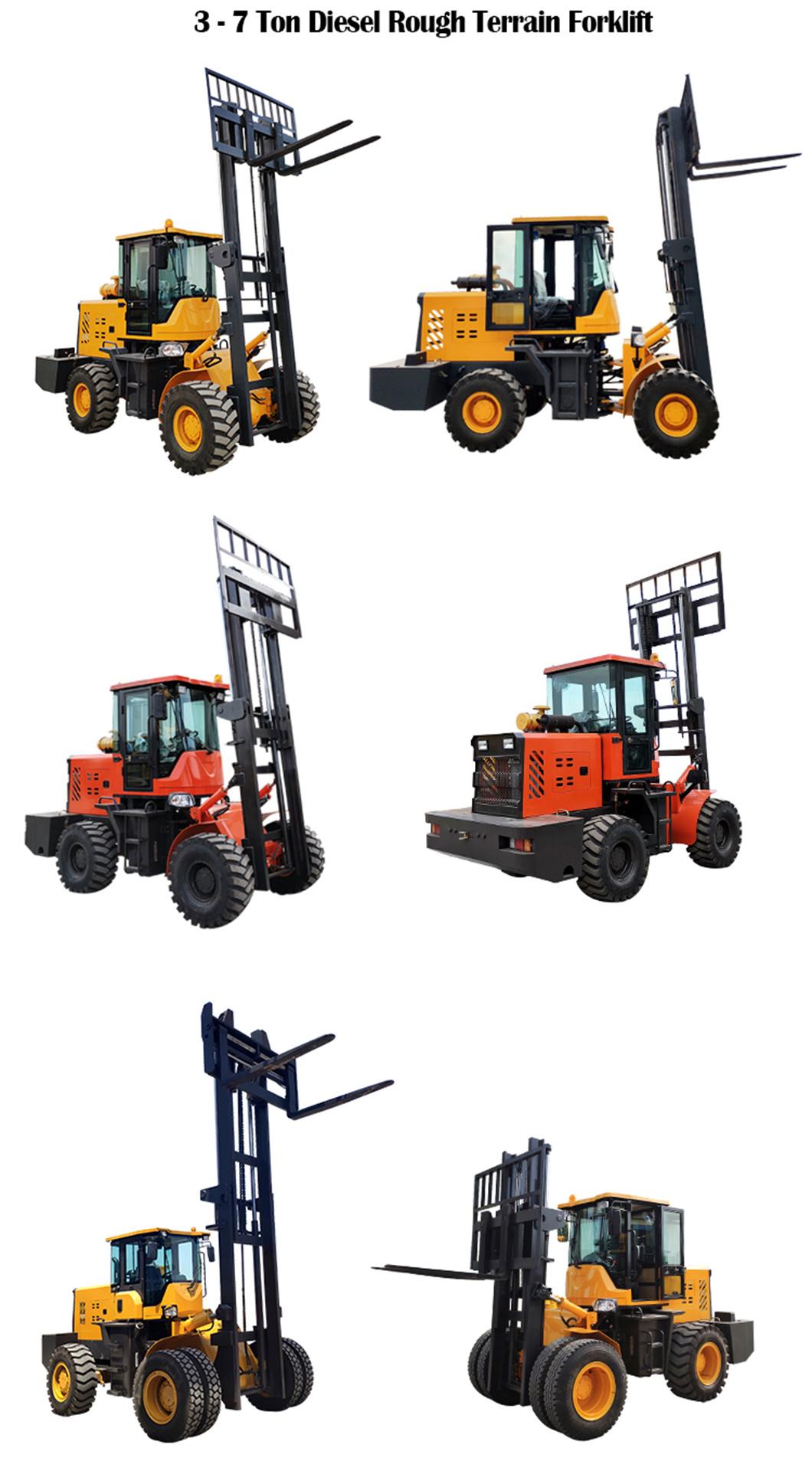

Accept Customized Rough Terrain Electric Forklift Truck Mount

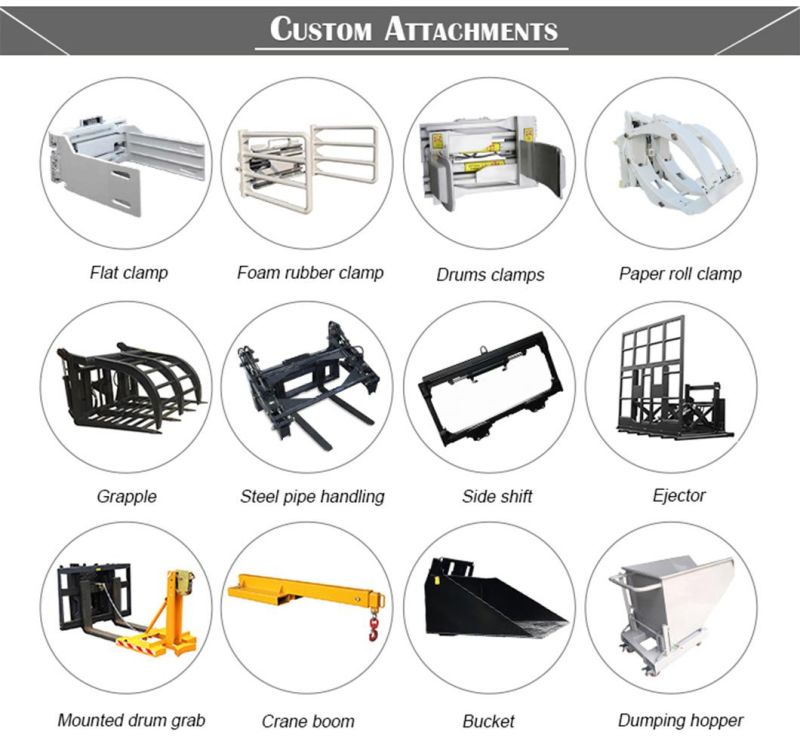

Rough Terrain forklift Trucks made of hydraulic transmission, wide-base tyre and four wheel driving, have excellent cross-country ability. It can be attached with all kinds of optional device. It can safely load and move goods on slopes and uneven ground.
It is mainly used for Construction site, dock yards, construction mines, stone yards, civil engineering, mountain forest areas, etc.
| Model | OKY-3.0T | OKY-5.0T |
| Rated Load | 3000 kg | 5000 kg |
| Max.unloading Height | 3500 mm | 3500 mm |
| Overall Weight | 4500 kg | 7800 kg |
| Max.Grade Ability | 16°≤30° | 16°≤30° |
| Engine Model | YUNNEI 490 Supercharged engine | YUNNEI 4102 Supercharged engine |
| Engine power | 55kw | 76kw |
| Drive mode | Four-wheel drive | Four-wheel drive |
| Steering mode | Articulated | Articulated |
| Front tire | 20.5/70-16 Steel wire tire | 900-20 Steel wire tire |
| Rear tire | 20.5/70-16 Pneumatic tire | 16/70-20 Pneumatic tire |
| Ground Clearance | 280 mm | 32 mm |
| Wheelbase | 2250 mm | 2450 mm |
| Min.Turning Radius | 3750 mm | 4250 mm |
| Max. speed | 25-30km/s | 25-30km/s |
| Dimensions | 4450*1800*2600 mm | 5350*2100*2800 mm |

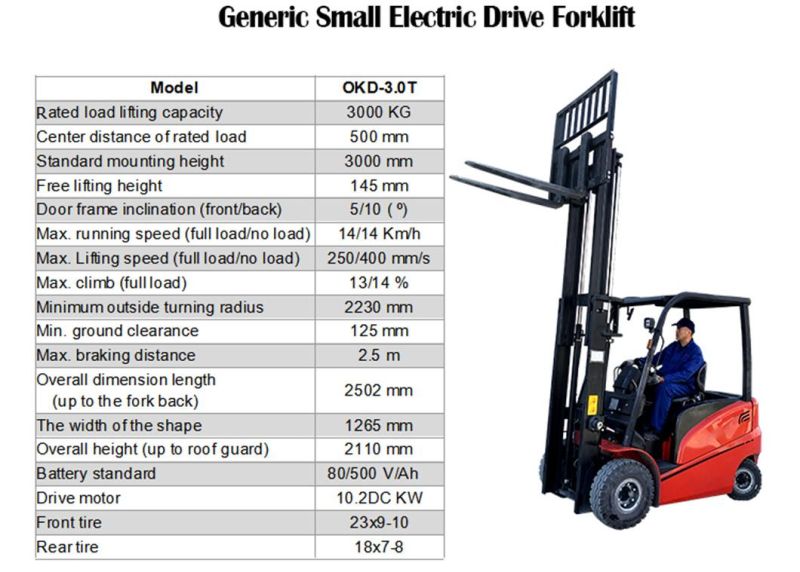

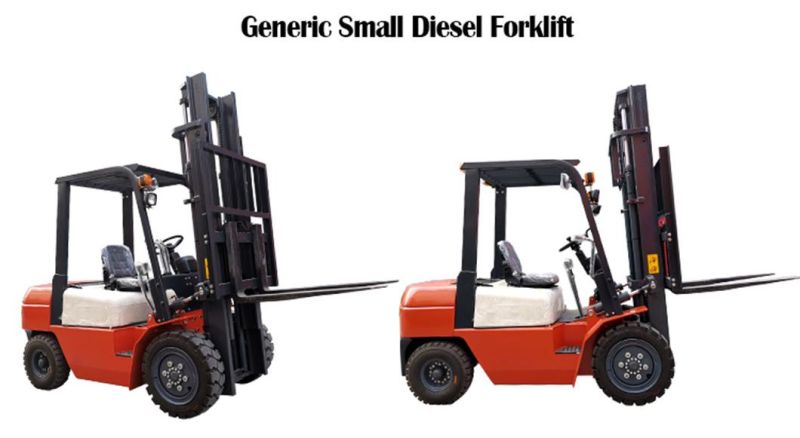

Small Forklift is a generic transportation vehicle, used for loading and unloading, short distance transport, heavy lifting, usually using diesel or battery driven. Simple operation and fast driving.
Widely used in railway station, port, airport, factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.
| Model | OKT-3.0T | OKT-3.5T |
| Engine | 4D27G31 | 4D27G31 |
| Rated load lifting capacity | 3000 KG | 3500 KG |
| Center distance of rated load | 500 mm | 500 mm |
| Standard mounting height | 3000 mm | 1220 mm |
| Door frame inclination (front/back) | 6/12 º | 6/12 º |
| Max. running speed (full load/no load) | 20 Km/h | 20K m/h |
| Lifting height | 2.2 m | 4.5 m(Customized) |
| Max. climb (full load) | 20% | 20% |
| Min. outside turning radius | 2510 mm | 2510mm |
| Max. braking distance | 2.5m | 2.5m |
| Overall dimension length (up to the fork back) | 3757 mm | 3757mm |
| The width of the shape | 1226 mm | 1226mm |
| Overall height (up to roof guard) | 2125 mm | 2125mm |
| Total Weight | 4220 KG | 4420KG |
