• Model NO.：CPCY35
• Lift height：3000~5000mm
• Condition：New
• Certification：Ce
• Optional Engine：Yanmar
• Dead Weight：4230kg

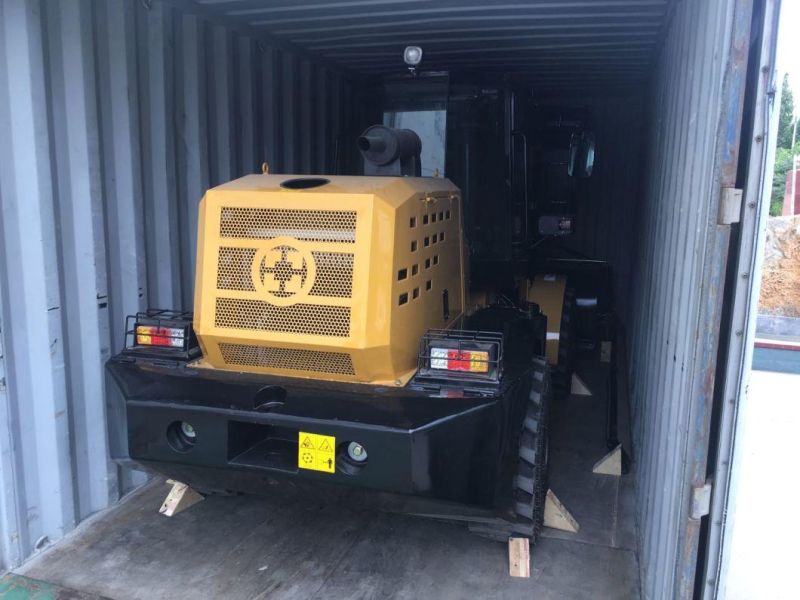

• Transport Package：40hq: 3units
• Specification：L*W*H mm 3655*1700*2170mm
• Trademark：WELIFT
• Origin：Mainland, China
• HS Code：84272090
• Production Capacity：2000 Sets ,One Year

Basic Info.

Model NO. CPCY35 Lift height 3000~5000mm Condition New Certification Ce Optional Engine Yanmar Dead Weight 4230kg Transport Package 40hq: 3units Specification L*W*H mm 3655*1700*2170mm Trademark WELIFT Origin Mainland, China HS Code 84272090 Production Capacity 2000 Sets /One Year

Product Description

Product Description
Features

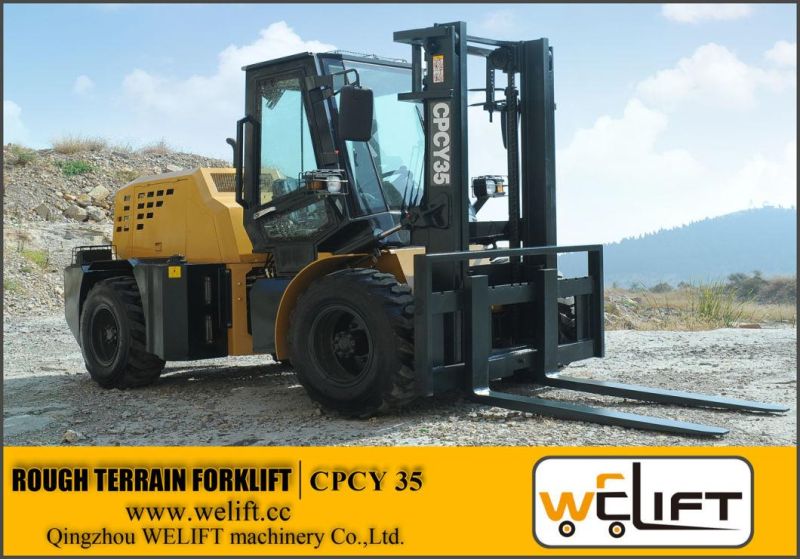

CPCY35 Terrain forklift is a product of combined technology from China and Australia.

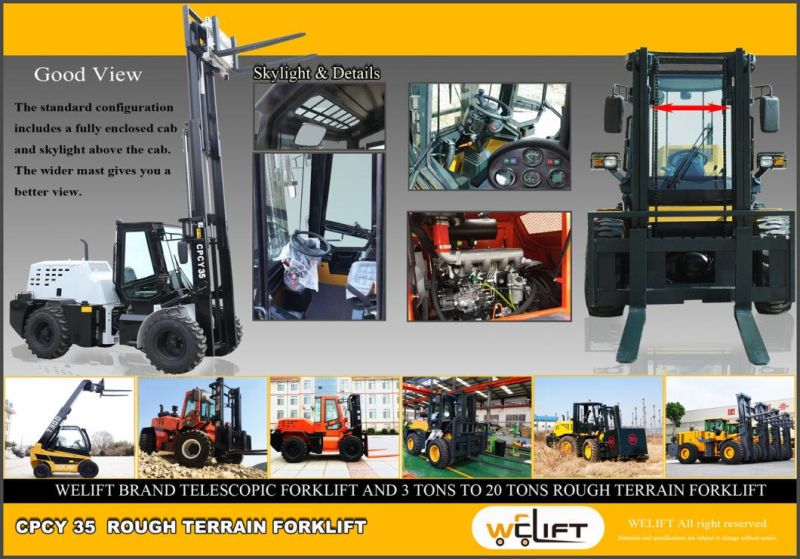

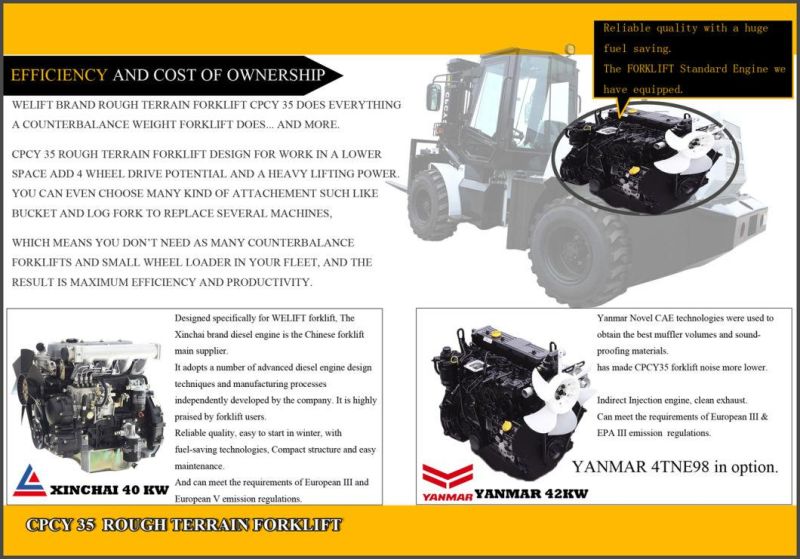

It is equipped with XINCHAI C490BPG engine for reduced noise and emission, this product uses full hydraulic mechanic automatic transmission and steering system for flexible and easy handing. This model has a large hauling capacity from its double-axle six wheel drive for improved safety and stability. Articulated body design reduces turning radius. This model is fitted with Grammer luxurious seat for extra comfort. Movement control stick incorporates German ZF technology.

Application

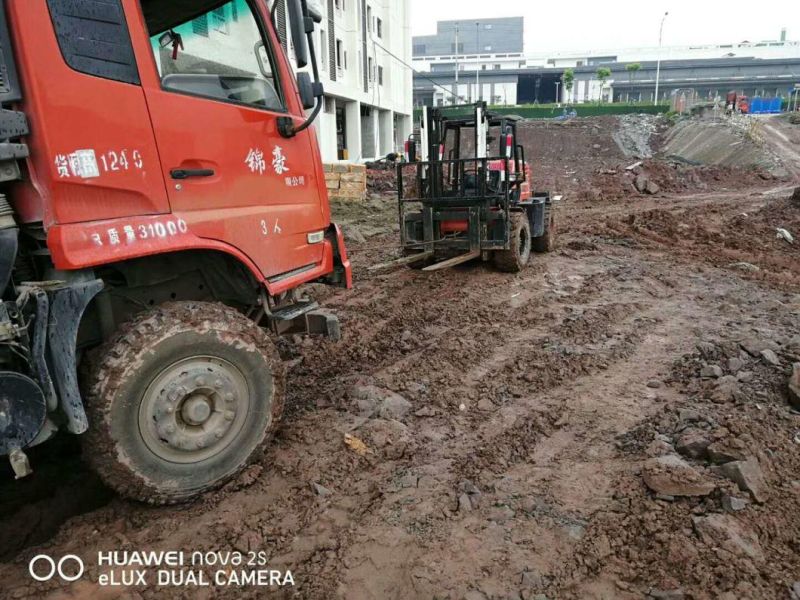

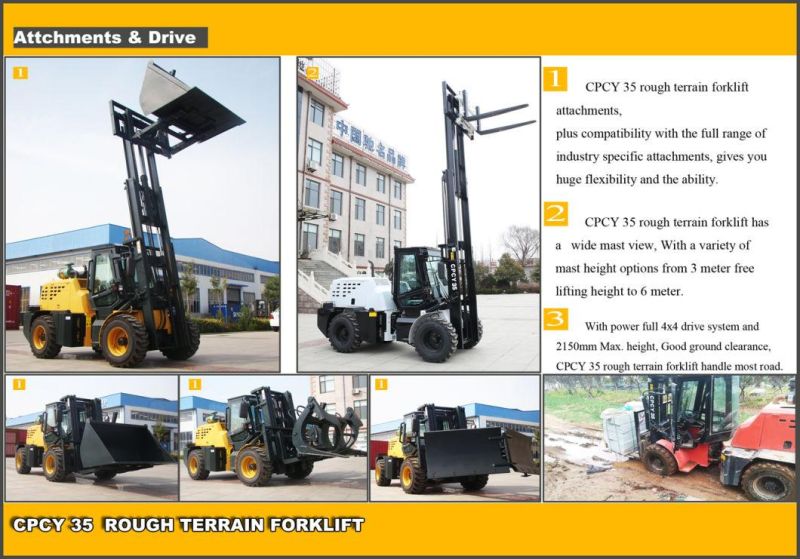

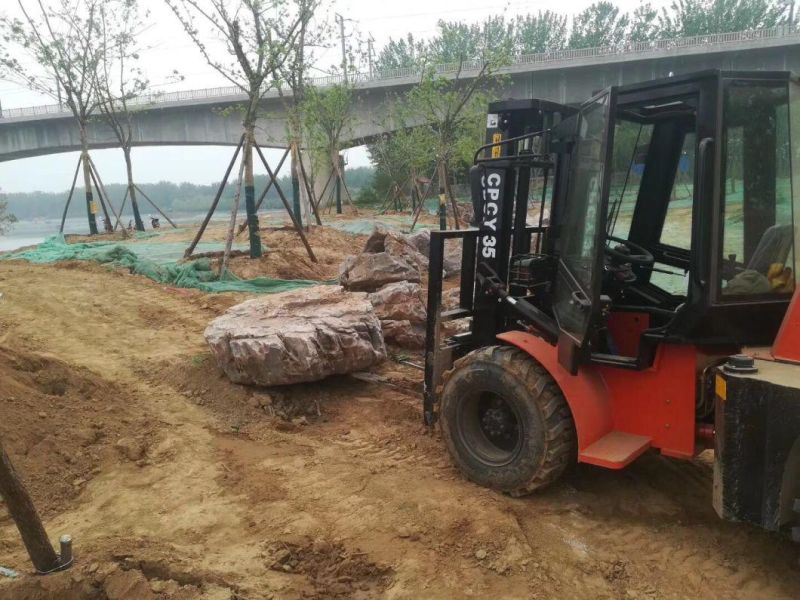

CPCY35 Terrain forklift is adaptable to various surface conditions, it is suitable to operate on soft soils, grass, terrain, mine sites and many other rugged surfaces. Extensive range of attachments is available for this model to extend its working capacity for heavy duty mining projects.

Certification
CE
BV
ISO
SGS

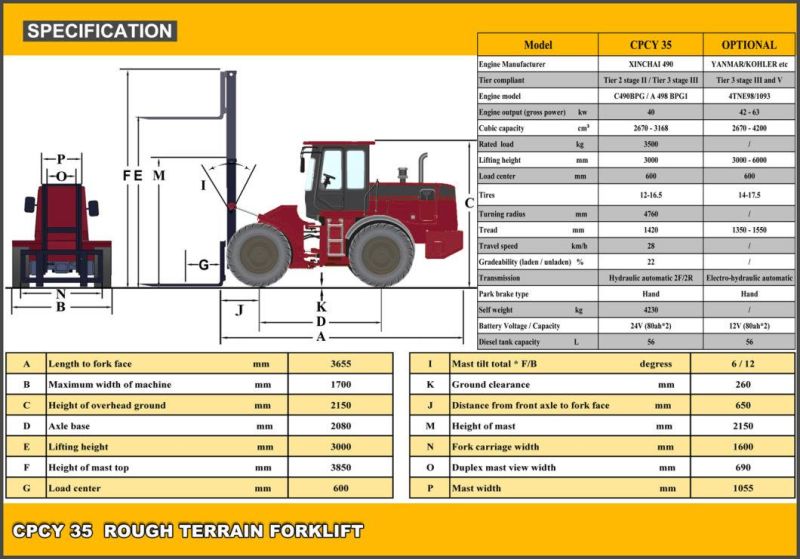

Technical Specifications

Item	Unit	Parameter
Rated load	Kg	3500
No fork	mm	3655
With fork	mm	4870
Width	mm	1725
Height of the mast	mm	2150
height of the cab	mm	2170
Wheelbase	mm	2080
Front overhang distance	mm	530
Ground clearance	mm	260
Max lifting height	mm	3000-6000
Forward/rear tilting angle	m(°)	6/ 12
standard Dead Weight(no-load)	kg	4000
Min turning radius	mm	4760
Max speed	km/h	22
Max climbing degree	%	20
Load center distance	mm	500
Engine model	xinchai	498BT1 40kw
