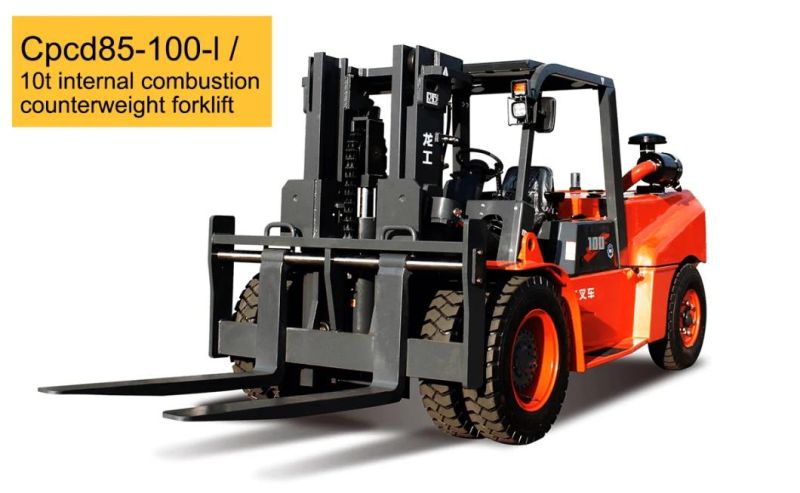

• Model NO.：CPCD85-100-L
• Fuel：Diesel
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Rated Load：8500,10000(Kg)
• Load Center Distance：600(mm)
• Maximum Lifting Height：3000(mm)
• Free Rise Height：200,215(mm)
• Gantry Inclination(Deg)：Front 10 Rear 12
• Dead Weight：12150,13250(Kg)
• Dynamic Form：Diesel Oil
• Origin：China
• HS Code：8427109000
• Production Capacity：30000

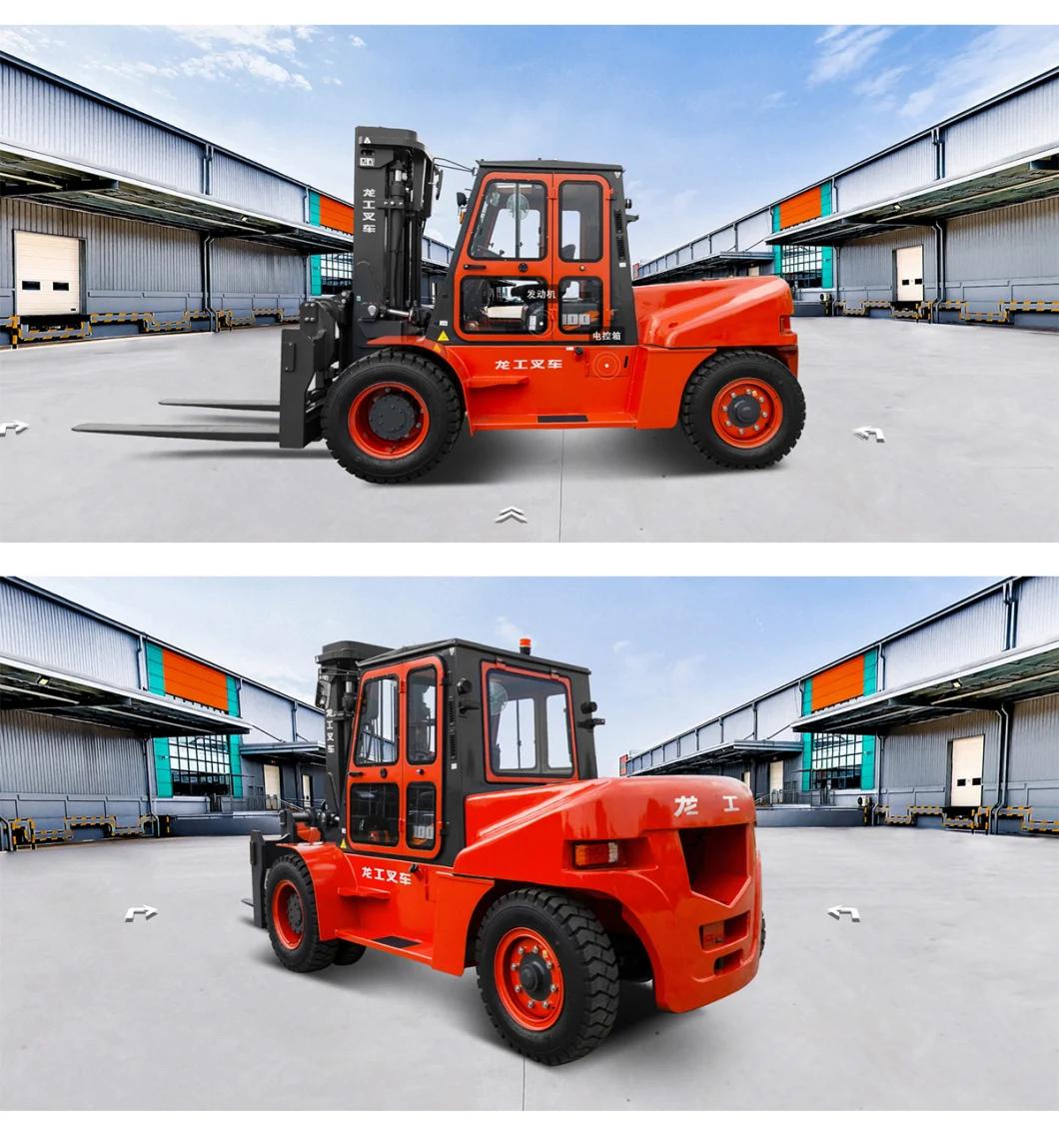

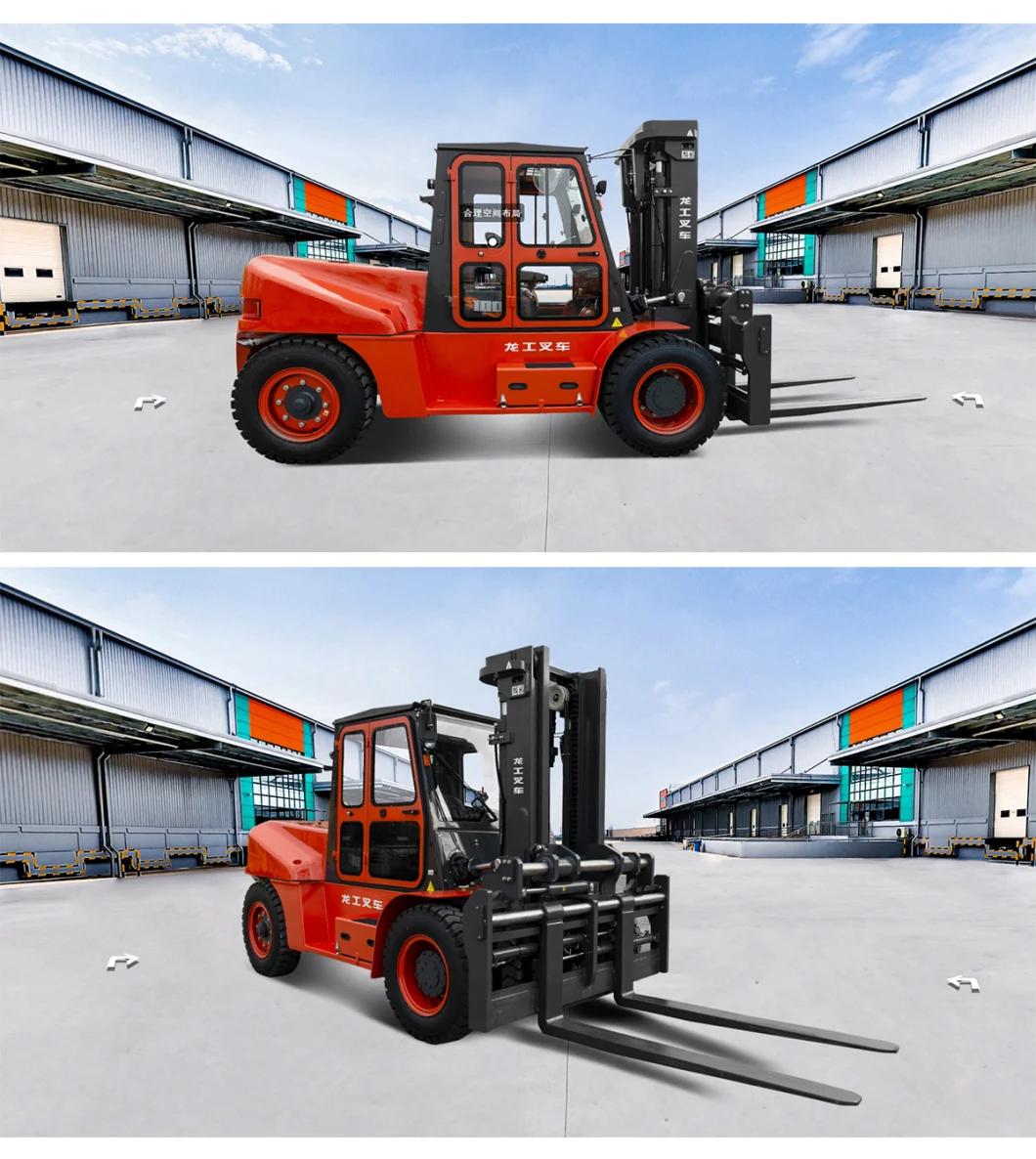

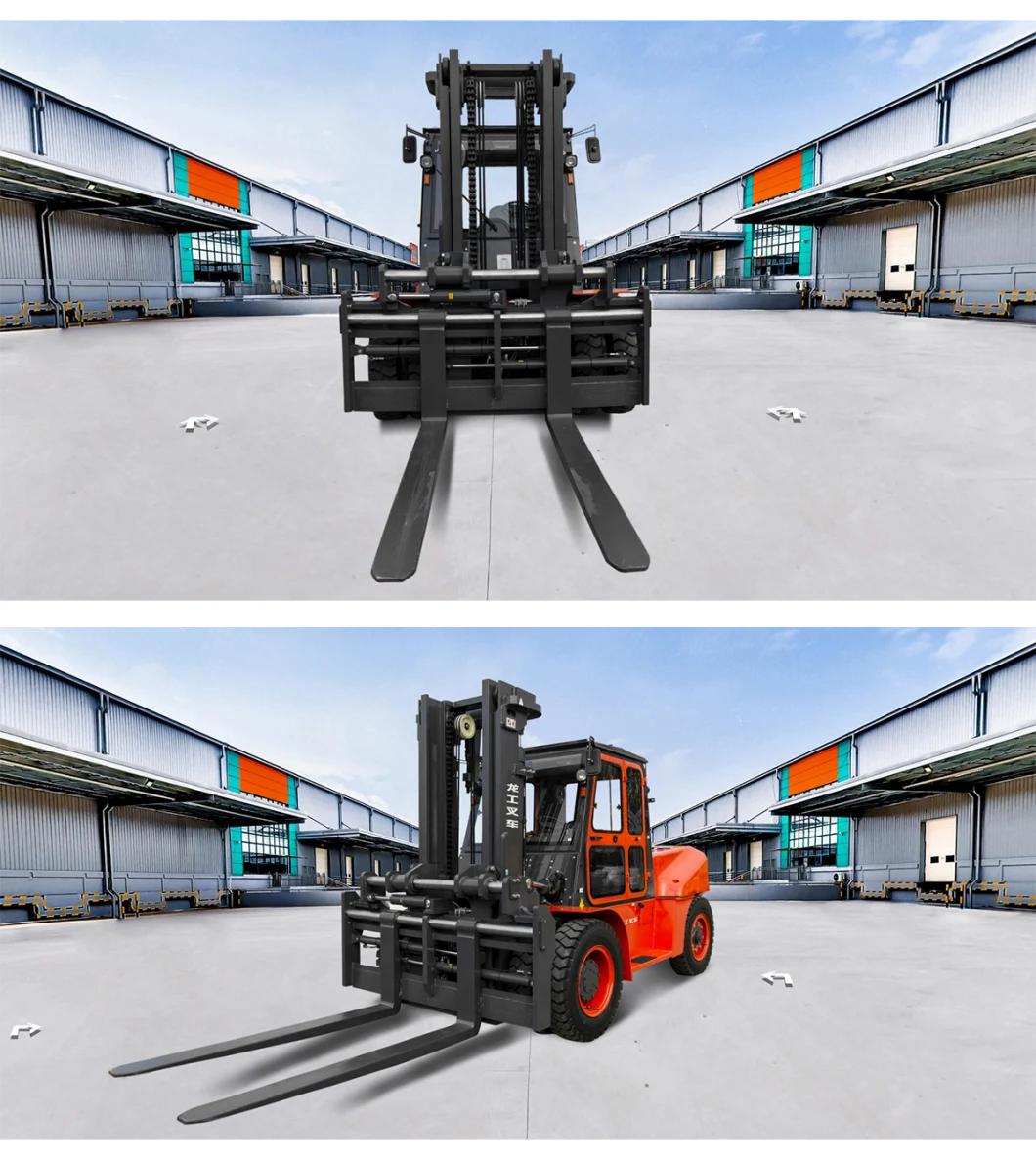

Overview Product DescriptionModelCPCD85-LW01CPCD100-LW01Dynamic formDiesel OilDiesel OilRated Load (kg)850010000Load Center Distance(mm)600600Maximum Lifting Height(mm)30003000Free Rise Height(mm)200215Gantry Inclination(deg)Front 10 Rear 12Front 10 Rear 12Maximum Driving Speed(Full Load/No Load)(Km/h)24/2824/28Maximum Starting Speed(Full Load/No Load)(mm/s)390/420330/350Maximum Climbing Gradient(Full Load/No Load)(%)20/2320/21Dead Weight(kg)1215013250Detailed Photos



Company ProfilePackaging & Shipping
