• Model NO.：DC560
• Fuel：Electric
• Load center：500mm
• Lift height：200mm
• Condition：New
• Operate Type：Electric
• Fork Width：550-685mm
• Fork Length：1100-1200mm
• Certification：CE , ISO9001
• Core Components：Pump
• Wheel Material：Nylon or PU
• Loading Capacity：1-3ton, 1500kg
• Min. Lifting Height：50mm
• Wheel：Nylon or PU
• Transport Package：Package
• Trademark：Maxing
• Origin：China
• HS Code：842790000
• Production Capacity：1000units

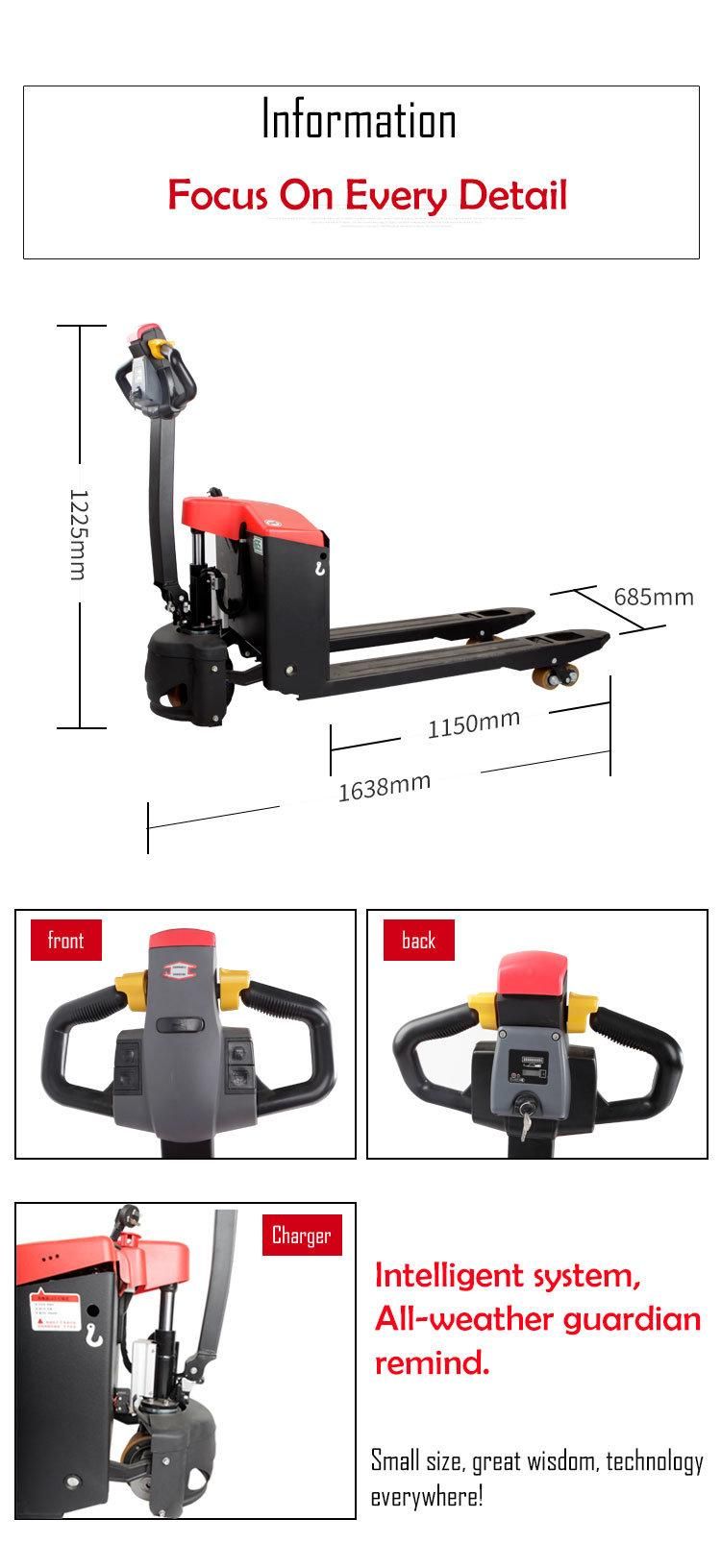

Model ELEP-15LIELEP-20LILoading capacitykg15002000Load centermm600600Operating typre WalkiewalkiedWheels type PUPUMax. lift heightmm200200Overall fork widthmm550/685550/685Fork lengthmm11501150Fork widthmm150150Overall lengthmm16151543Overall widthmm550/685550/685Overall height (With handle)mm12121212Min. turning radiusmm14051405Min. aisle width for pallets 1000*1200mm18151815Travel speed, laden/unladenkm/h4.2/4.54.2/4.5Gradeability, laden/unladen%5/86/10Driving motorkwDC0.75DC0.75Lift motorkwDC0.8DC0.8Battery V/AH24/3548/20Controller CURTISCURTISBattery weightkg87.5Service weight with batterykg153(151)/157(155)160

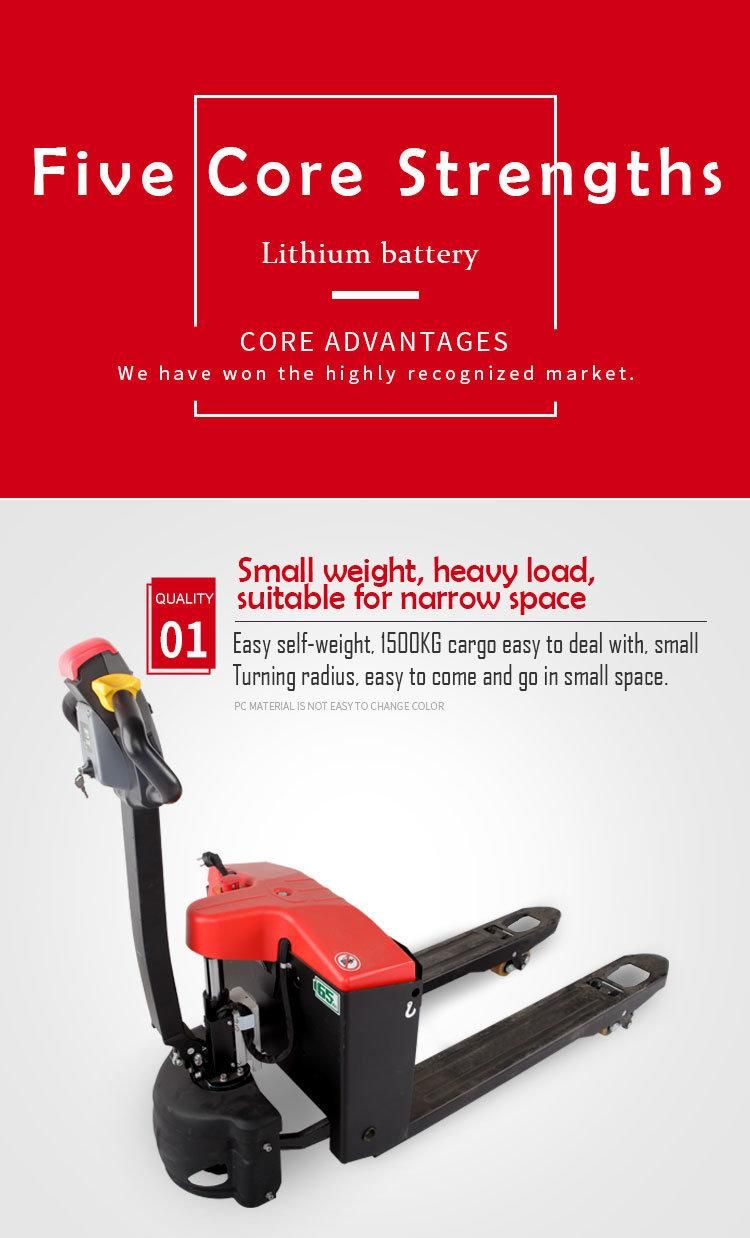

What are the product details?

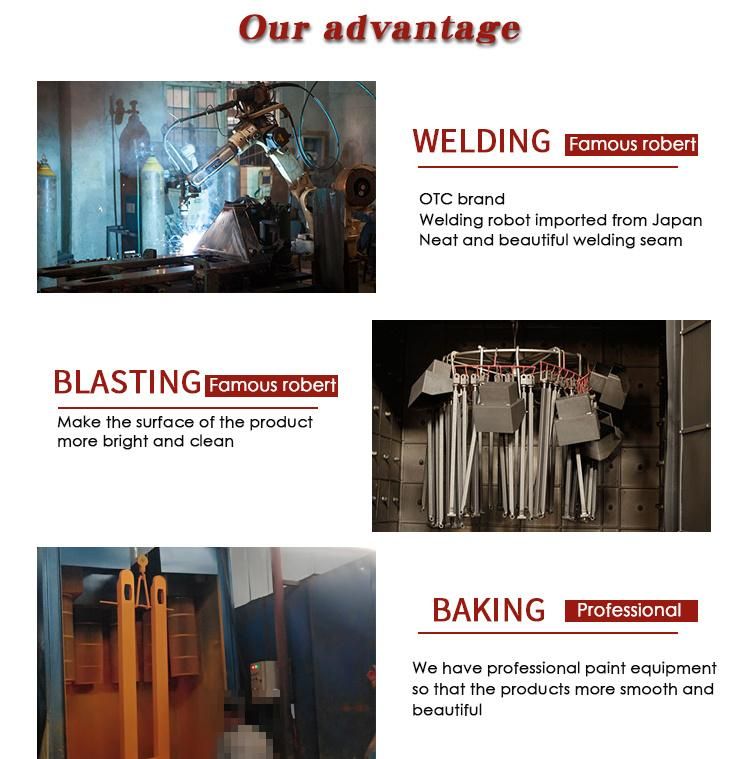

 Peoduction line

FAQ

Q1:Are you Factory?

Yes

Q2:Are the forklift trucks covered by a warranty?

Yes.All our machines carry a full 1 year major parts warranty.

Q3:Can I get discounts?

Yes.For big order,old customer and frequent customers,we give resonable discounts.

Q4:Can I place mix order?For example,I need 2 pc Electric stacker and 1 pc Hand Pallet Truck,can this ok?

Yes,of course.You can mix different model as your wish.

Q5:Can you add our own logo on the products or use our designs?

Yes,of course you can add logo on your products!

We provide OEM/ODM service.I addition,we promise your design would protect by law,we won't tell anyone else about this. It's your own copyright.

Q6:Can you send the machine to my factory in other city to load the container?

Yes,please tell US the detail address,we can arrange to send your factory in time.

Q7:How can the machines be send to us?

The transportation depends on client's choice,usually by sea,by train,by air etc.You also can choose other shipping method and inform us before shipment.
