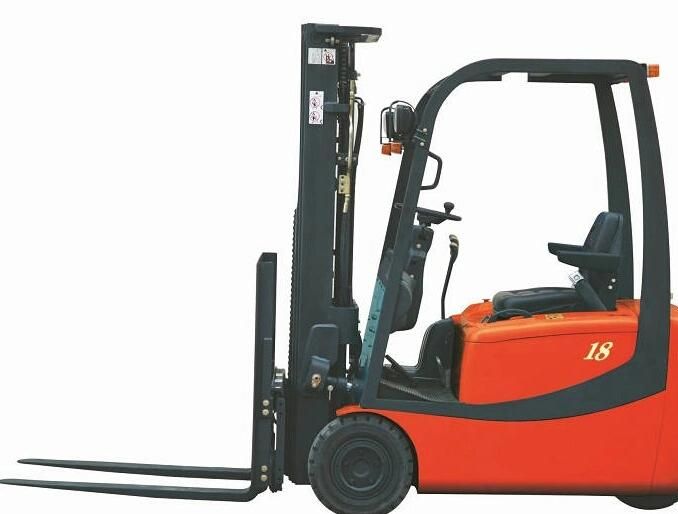

Selling Counter Balance Forklift 2t Electric Forklift with Zapi AC Systembrand (CPD20)
Jiangsu Gather Power Industry Co., Ltd.- Cab Location：Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：>500mm
Base Info
- Model NO.：CPD20
- Lift height：>5000mm
- Condition：New
- Transport Package：Nude Packing
- Specification：SAMLL
- Trademark：GP
- Origin：China
- HS Code：8427209000
- Production Capacity：10000units
Description
General Manufacturer GP 1 Model CPD20 CPD25 CPD30 CPD35 2 Rated capacity kg 2000 2500 3000 3500 3 Load center mm 500 4 Power type Battery 5 Tire type Front/Rear Pneumatic 6 Wheels Front/Rear 2*2 Dimensions 7 Lift height mm 3000 8 Free lift height mm 140 145 9 Fork size L*W*T mm 1070*120*40 1070*120*42 1070*120*45 10 Mast tilt angle Fwd/Bwd deg 6/12 11 Overall length (without fork) mm 2325 2481 12 Overall width mm 1170 1265 13 Mast height fork lowered mm 2070 2040 14 Overall height fork raised mm 4030 4270 15 Overall height (overhead guard) mm 2170 2125 16 Turning radius (outside) mm 2320 2230 17 Load distance (centerline of front axle to front face of forks) mm 479 484 454 450 18 Minimum Aisle -90 stack(Add load length and clearance) mm 4160 4360 4850 4950 19 Wheel base mm 1500 1630 1720 20 Tread Front mm 960 980 21 Rear mm 950 954 22 Min. Under-clearance Bottom of mast mm 100/120 85/105 23 Bottom of frame mm 100/120 120/140 Performance 24 Speed Travel Max. With load km/h 11 10.5 12 13.5 25 Without load km/h 12.5 12.5 13 13.5 26 Lifting With load km/h 260 250 250 280 27 Without load km/h 400 390 380 380 28 Max. Drawbar pull With/without load Kn 8 8 10 29 Max. Gradeability With/without load % (fan) 10 Weight 30 Service weight kg 3980 4120 4850 5150 Tyre 31 Tyre Size Front 7.00-12-12PR 23*9-10 28*9-15 32 Rear 18*7-8-14PR 18*7-8 18*7-8-14PR power control 33 Battery Voltage V 48 80 34 Capacity AH 620 700 500 500 35 Travel motor power kw 8 10 36 Subsidiary motor power kw 8.6 10 12 13.5 37 controller GE separate excitation controller
