New Electric Reach Truck 2ton

Jinan Shine International Trade Co., Ltd.
  • Cab Location：Not Adjustable
  • Type：Reach Forklift
  • Power：AC Motor
  • Load Capacity：1T - 5T
  • Fuel：Electric
  • Load center：500mm

Base Info

  • Model NO.：YB20
  • Lift height：3000mm-11000mm
  • Condition：New
  • Controller：USA Curtis
  • Tire：Polyurethane
  • Mast：Duplex,Full Free Lift Mast
  • Color：Customer Customized
  • Battery Voltage/Rated Capacity：48V,500ah
  • Motor：AC
  • Charger：Shineng
  • Battery：Torch
  • OEM Serviece：Yes
  • Transport Package：Container Shipment
  • Specification：3332kg
  • Trademark：SNSC
  • Origin：China, Wuhu
  • HS Code：84271090
  • Production Capacity：15000pieces,Years

Description

No. YB20-S21PowerBattery2Operator typeSeated3Rated capacity20004Centre of load6005Front overhang3786Wheelbase15707Curb weight (battery included)33328Axle loading (none load) driving/bearing1580/17529Axle loading (full load&mast extended) driving/bearing783/162910Axle loading (full load&mast retracted) driving/bearing1942/339011Tire driving/bearingPU/PU12Driving tire size φ343X14013Bearing tire size φ350×10814Auxiliary tire size--15Wheel No. driving/bearing (x=driven)1x/216Track width,drive wheel-17Track width,load wheel118618Fork carriage tile angle,forward/backward2/4 19Height of mast,lowered219020Free lifting height128521Lifting height450022Height of mast,extended551023Height of overhead guard(cab)218024Height of reach legs37825Overall length264226Length to fork face142227Overall width1270/129428Fork dimensions40*122*122029Fork carriage installation Level DIN 151732A30Fork outer width,minumum/maximum244/75031Width between reach legs92032Reach travel58533Ground clearance,mast8034Ground clearance,centre of wheelbase9035Aisle width,pallet 1000×1000 pallet crossways266836Aisle width,pallet 800×1200 pallet lengthways286737Outer turning radius182538Travel speed, laden/ unladen9/9.539Lifting speed, laden/ unladen260/36040Lowering speed, laden/ unladen500/40041Forward speed laden/ unladen10042Maximum gradeability, laden/ unladen10/1543Accelerating time laden/ unladen5.8/544Drive motor6.445Lift motor1146Steer motor0.647Battery voltage/capacity(5h)4848Battery weight78649Type of drive controlMOSFET50Working pressure18051Steering angle180
PRODUCT DESCRPTIONSReach truck welcome by the market, they can be very good to adapt to urban construction sites and warehouses, supermarkets, lifts, warehouse, wharf, warehouse, shipping space, buildings and underground engineering assignments within the environment of special use requirement

Full AC Motor:Excellent Driving & Lifting AC motor,free Of Maintenance, AC power system makes operating efficiently, longer life.

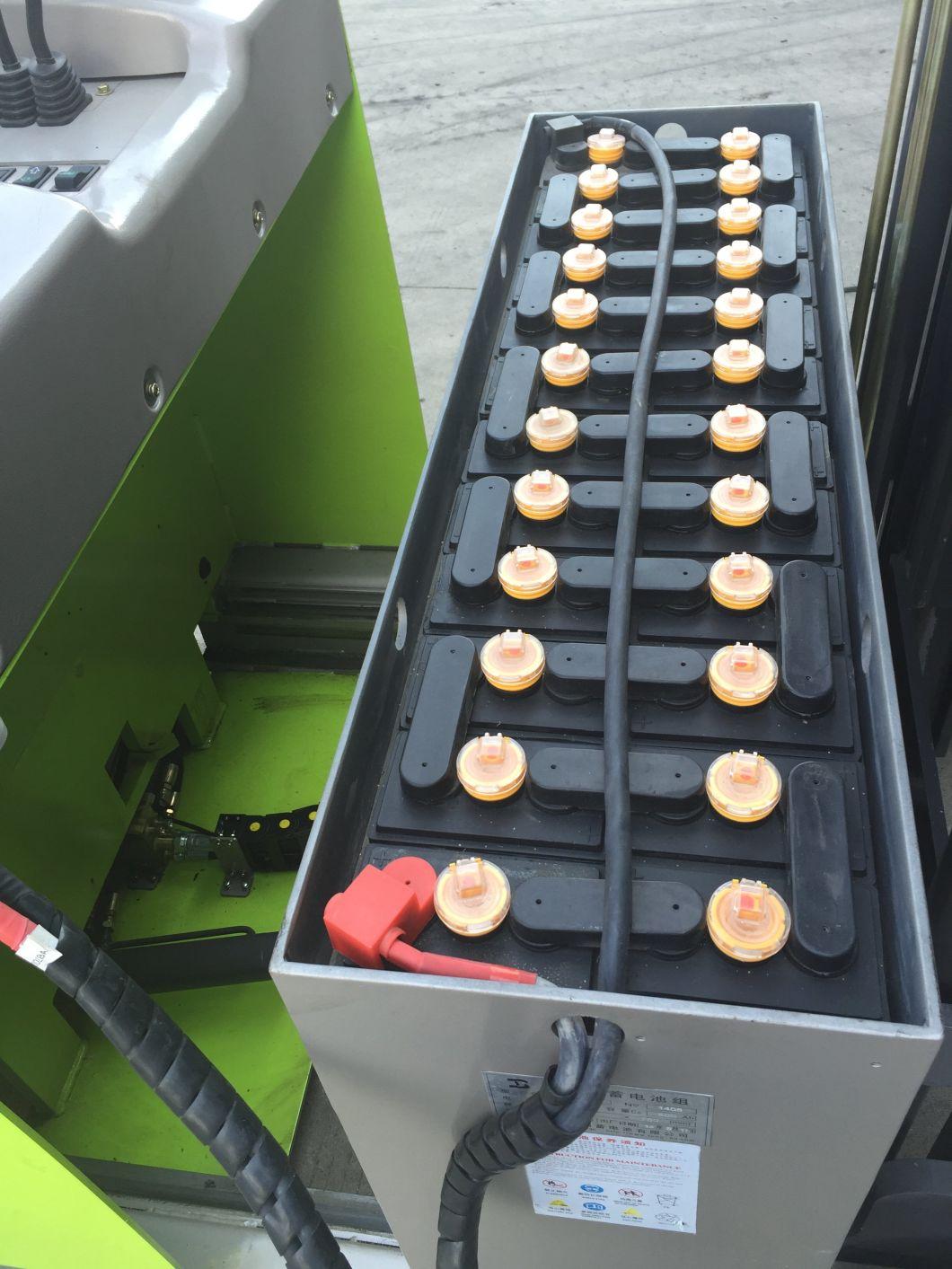

Easy Maitenance:For daily maitenance of the battery, you don't need to hang up the battery box. Simply using a battery handle controller. You can automatic remove and replace the battery box.

New Electric Reach Truck 2ton

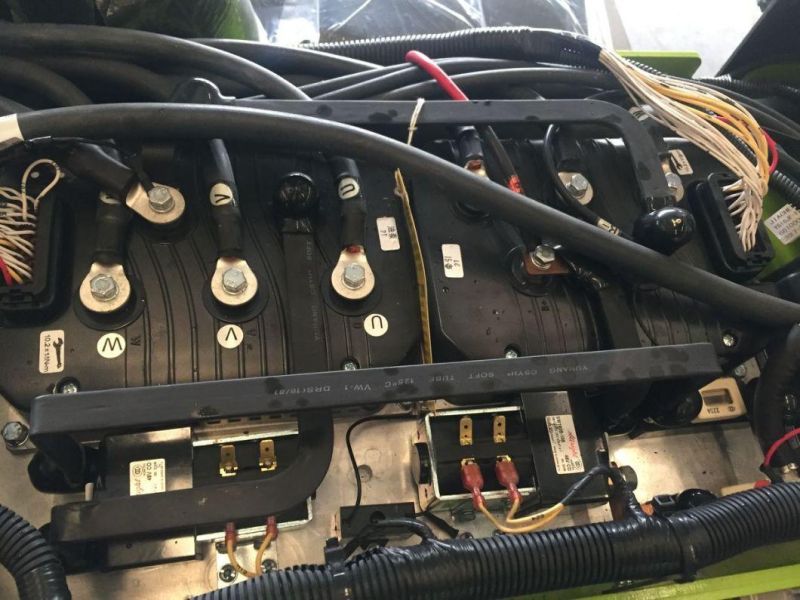

USA Curtise controller:SNSC electric rrach Truck adopts world-class Curtis Controller to ensure excellent performance.

New Electric Reach Truck 2ton
 Easy operation:Full hydraulic steering system, with integrative design of driving ans steering, provides low-effort and flexible power steering.New Electric Reach Truck 2ton

New Electric Reach Truck 2ton

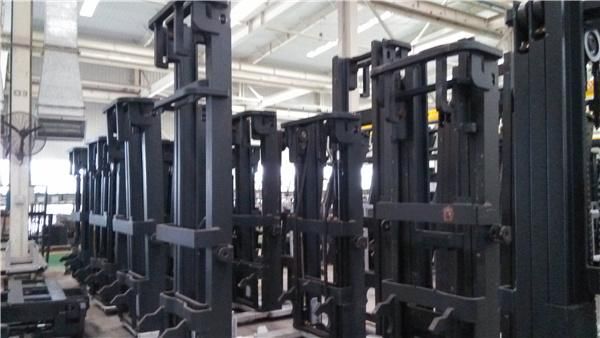

3000mm -11000mm Lifting Mast:We can customized all kinds of lifting lift mast from 3000mm -7000mm to 2ton reach truck.

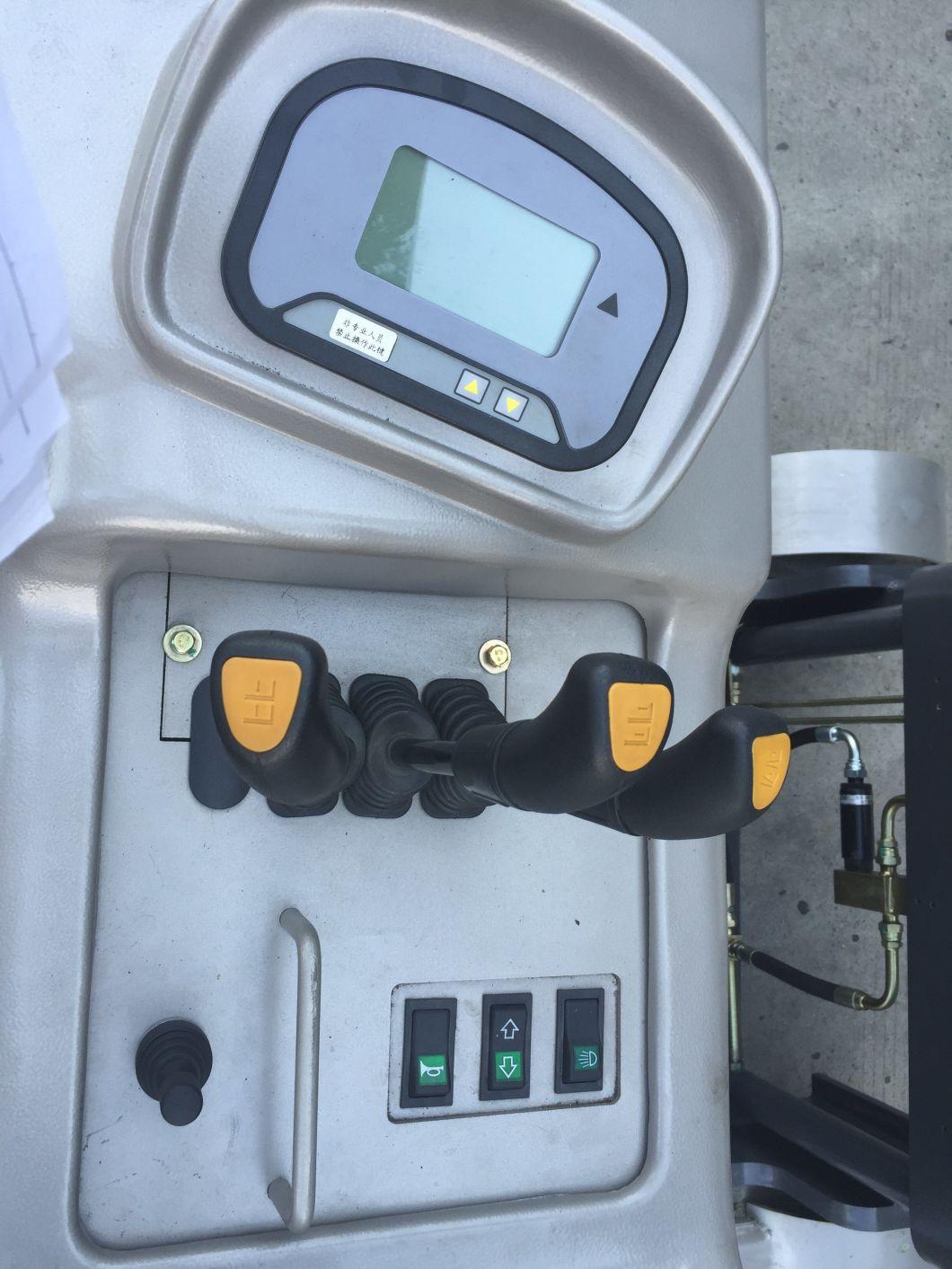

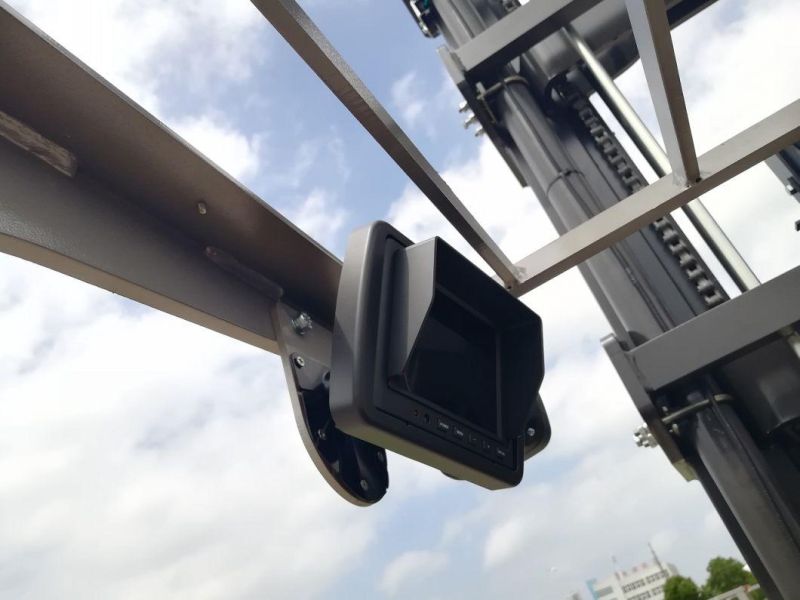

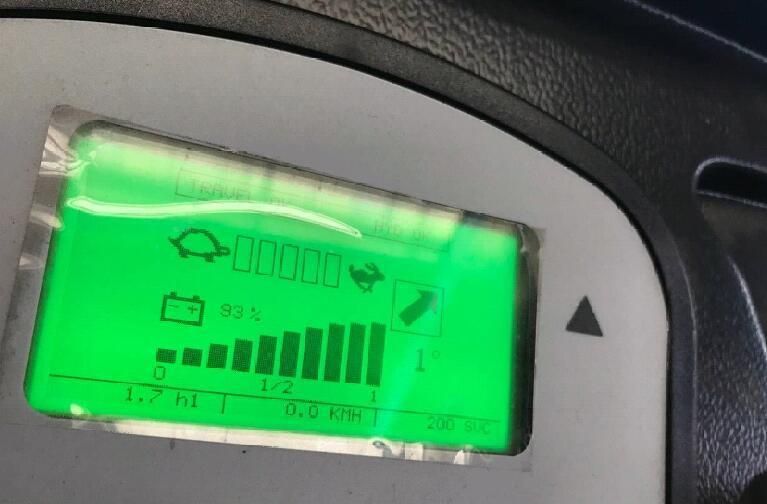

New Electric Reach Truck 2ton  Camera and Lcd instrument:Interface friendly interactive multi-function Liquid Crystal Display With Password Setting Function.
New Electric Reach Truck 2ton


Packing & DeliveryNew Electric Reach Truck 2ton

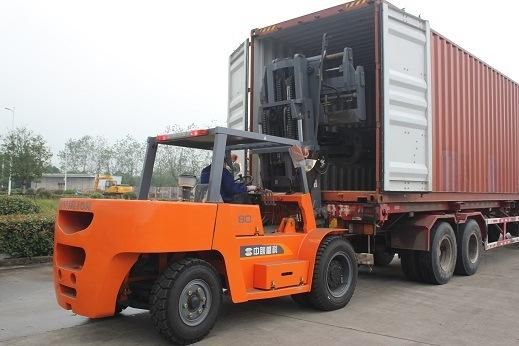

SNSC Forklift is shipped by container.

Packaging&Shipping 1*20'GP - 2 Units,     1*40'GP - 4 Units

Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals and Spare Parts together.


Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.
