Fotma 2t/2000kg Diesel Forklift Truck
Hubei Fotma Machinery Co., Ltd.- Cab Location：Not Adjustable
- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：CPCD20
- Lift height：8000mm
- Condition：New
- Rated Capacity：2000kg
- Fork Size：55*150*1070mm
- Tilting Angle：6,12 Degree
- Transmission：Hydraulic
- Transport Package：Export Package
- Specification：ISO
- Trademark：FOTMA
- Origin：China
- HS Code：8427109000
- Production Capacity：100units Per Month
Description
Number of speeds for transmission
transmission
Standard configuration
| 1 | Fork |
| 2 | Water-themometer |
| 3 | Traction Pin |
| 4 | Load-backrest |
| 5 | Overhead guard |
| 6 | Electric Horn |
| 7 | Reversing Light |
| 8 | Chronoscope |
| 9 | Fuel Gauge |
| 10 | Charging Indication |
| 11 | Tool Box |
| 12 | Free Spare Parts |
| 13 | Oil Pressure Alarm |
| 14 | Turn Light Indicator |
| 15 | Wide Visibility Mast |
| 16 | Chair with seat belt |
| 17 | Headlamp |
| 18 | Rear Combined light |
| 19 | Formed Pedal Pad |
| 20 | Dual multi-valve |
| 21 | Transmissioin Oil Filter |
| 22 | Back-up Buzze |
| 23 | Transmission Oil Scale |
| 24 | Hydraulic Circuit Oil Filter |
| 25 | Neutral Safety Switch |
| 26 | Overhead Guard Appentice |
| 27 | Air Intake Installation |
| 28 | Durable Tyre |
| 29 | Cable Type Packing Brake |
| 30 | Hydraulic Oil Scale |
| 31 | Preheat Indicator |
| 32 | Hydraulic Power Transmission |
| 33 | Lifting Jack Governor Valve |
| 34 | Lifting&Tilting joystick |
| 35 | Whirlwind Joy Air Filter |
| 36 | Automatic Engine Preheating System |
III.Optioin Fuction
| 1 | Cabin |
| 2 | Speed Indicator |
| 3 | Fire Extinguisher |
| 4 | Solid Tyre |
| 5 | Rear Working light |
| 6 | Auxiliary Piping |
| 7 | Floated Seat |
| 8 | Specify Colors |
| 9 | Transmission Oil Temperature Gauge |
| 10 | Fan Heater |
| 11 | High Exhaust Device |
IV Optional Device
| 1 | Sideshifter |
| 2 | Fork Positioner |
| 3 | Paper Roll Clamp |
| 4 | Push/Pull |
| 5 | Carton Clamp |
| 6 | Rotator |
| 7 | Carpet Boom |
| 8 | Tipping Multi-Pupose Clamp |
| 9 | Drum Clamp |
| 10 | Turnaload |
| 11 | Single/Double Pallet Handlers |
| 12 | Double Sideshifters |
| 13 | Intelligent Weigh Fork |
| 14 | Glass Handler |

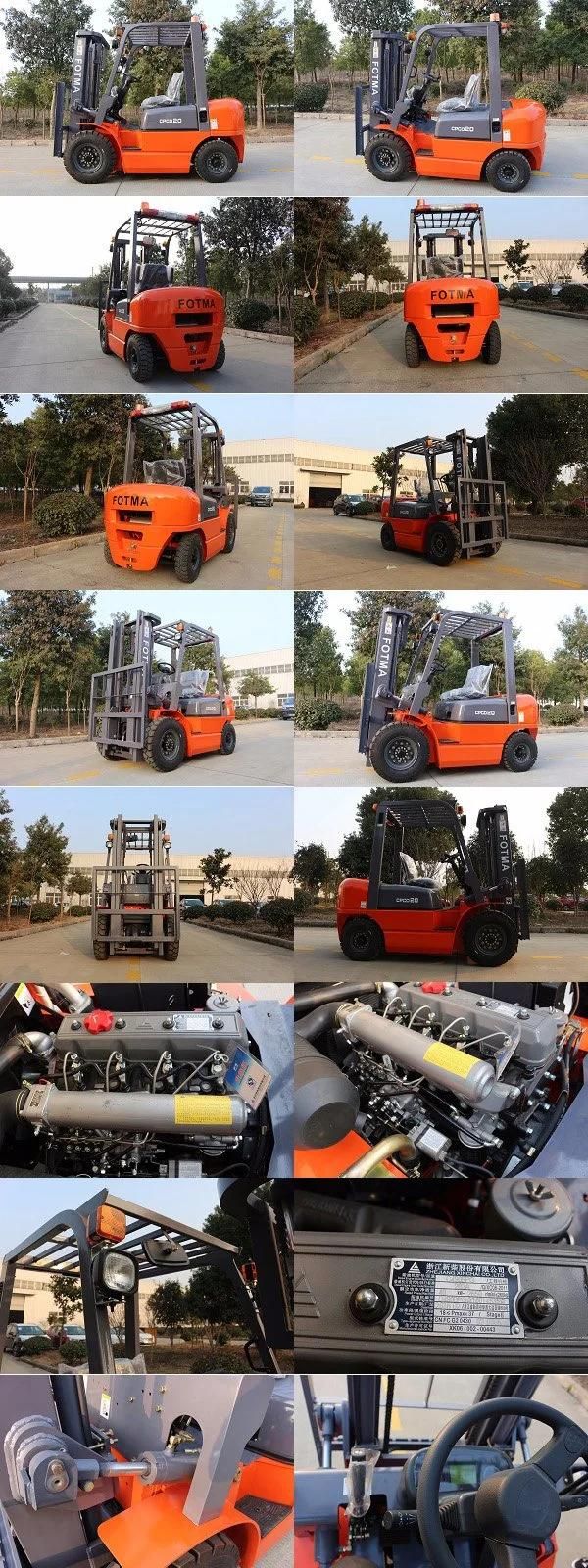

V.More photos
