Portable Forklift Electric Stacker
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- Cab Location：Not Adjustable
- Type：Powered Pallet Truck
- Power：DC Motor
- Load Capacity：1500kg
- Fuel：Electric
- Load center：600mm
Base Info
- Lift height：115mm
- Condition：New
- Fork Lenghth：1150mm
- Overall Width：560,685mm
- Service Weight：205kg
- Certification：CE,ISO9001
- Ground Clearance：35(25)mm
- Rated Loading Capacity：1500kg
- Fork Width：150mm
- Lowered Height：85(75)mm
- Battery Voltage：30ah,24V
- Wheelbase：1228,1268mm
- Turing Radius：1485mm
- Transport Package：Standard
- Specification：1588*560*715mm
- Trademark：EP
- Origin：Zhengjiang, China
- HS Code：8427109000
- Production Capacity：10000 Units,Year
Description
Basic Info.
Lift height 115mm Condition New Fork Lenghth 1150mm Overall Width 560/685mm Service Weight 205kg Certification CE/ISO9001 Ground Clearance 35(25)mm Rated Loading Capacity 1500kg Fork Width 150mm Lowered Height 85(75)mm Battery Voltage 30ah/24V Wheelbase 1228/1268mm Turing Radius 1485mm Transport Package Standard Specification 1588*560*715mm Trademark EP Origin Zhengjiang, China HS Code 8427109000 Production Capacity 10000 Units/YearProduct Description
Product Description

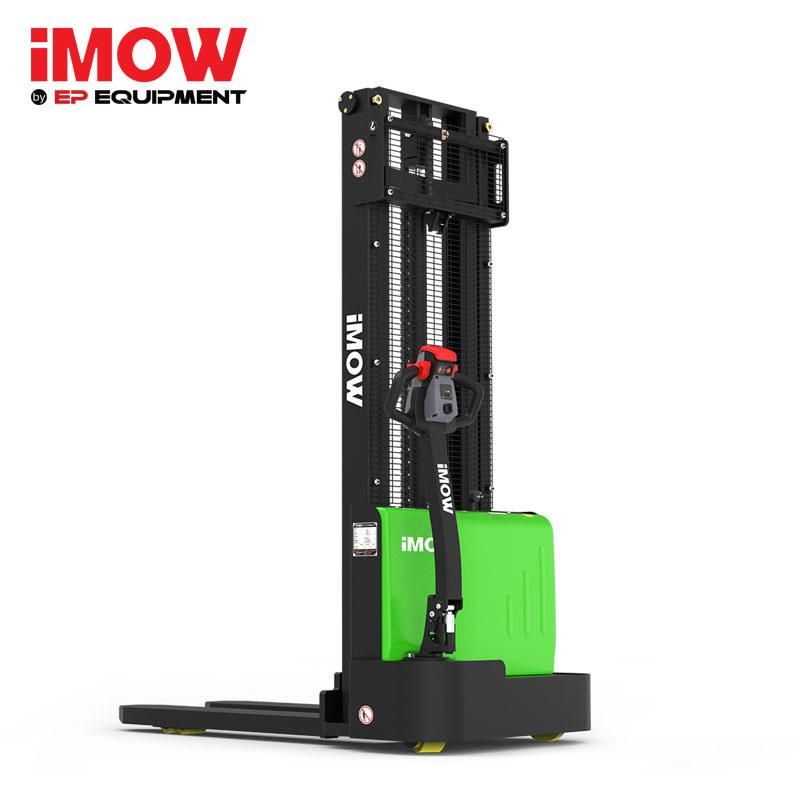

Factory Price 1500kg Self Loading Portable Forklift electric Stacker Stock
Main features:
- Capacity 1500KG,lifting height 2400MM OR 3000MM.
- DC motor, internal charger
- Acid battery:2x12V/85AH
- Economical choice, better price, high performance
- Mini type for narrow aisle
- Anti-burst hydraulic oil tube

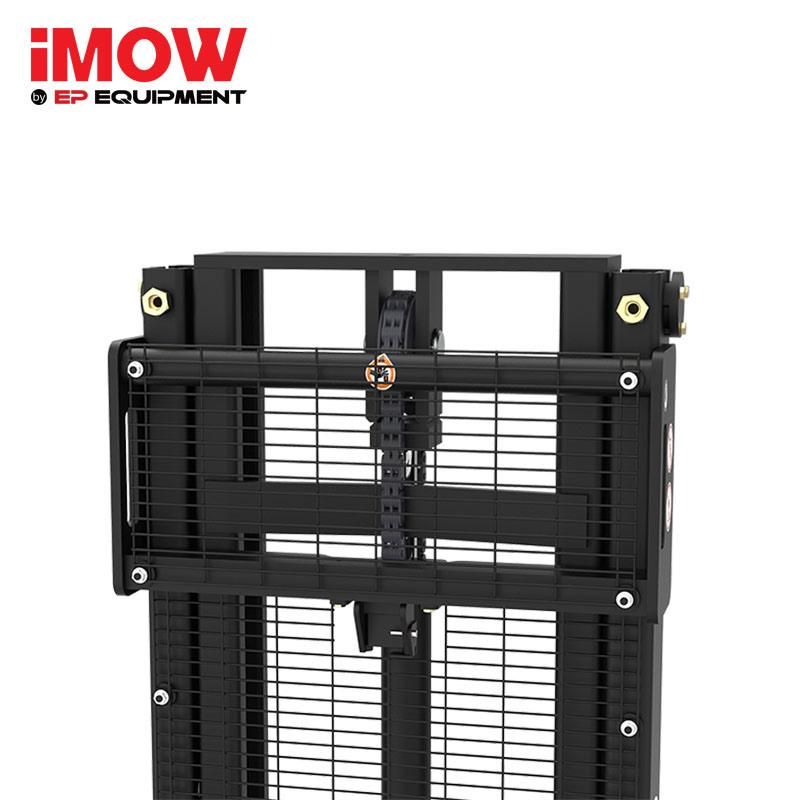

- Single chain design, providing wider view
- Robot cables with excellent twist resistance offers longer life span.
- Handy emergency discount button&durable driving unit ensure safety under any situation.
- Charger with temperature indicator protects battery.
- Compact design and small dimensions(the turning radius is only 1342mm),offering excellent visivility.
- Convenient control handle with all function on it.
- The comfortable and ergonomic handles enables easy maneuvering.
- The plastic shell is formed by injection moulding.
- The fork is formed by injection moulding and made of thickness steel plate reinforcement.
- Fix forks for standard configuration.

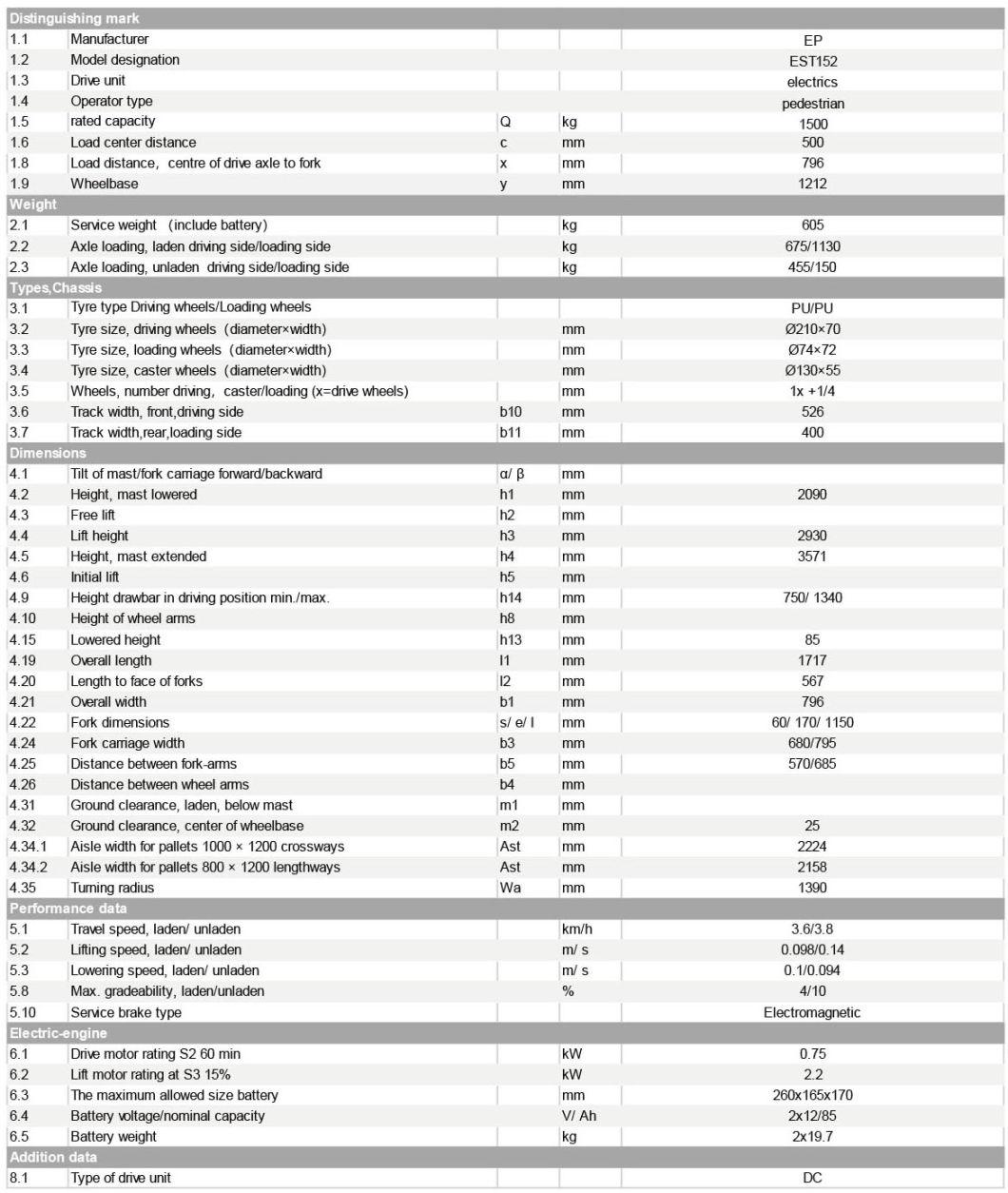

| No | Item | Data |
| 1 | Capacity | 1500kg |

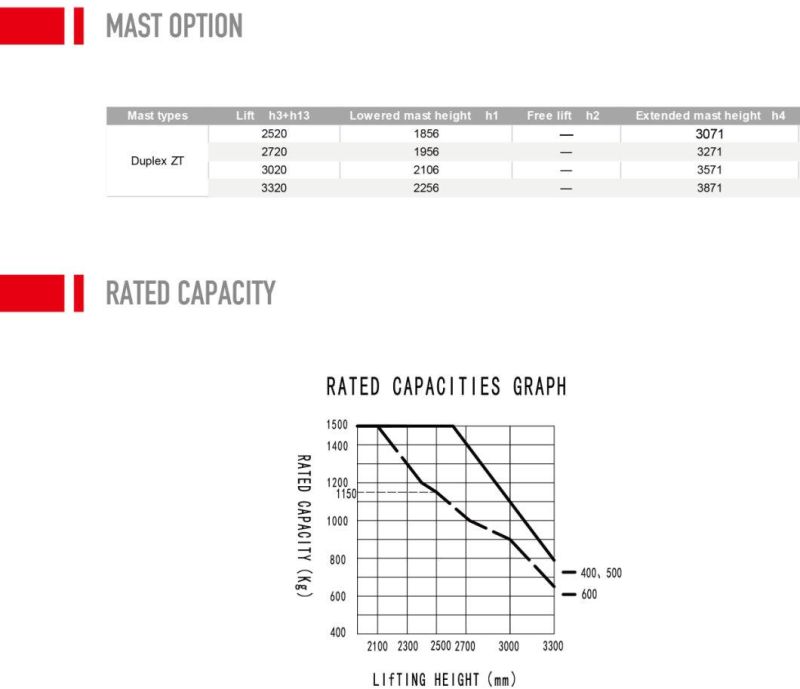

| 2 | Max lifting height | 2500/3000/3300/3500mm |
| 3 | Service weight | 605kg |
| 4 | Tires type | PU |
| 5 | Travel speed(laden/unladen) | 3.6/3.8km/h |
| 6 | Type of drive motor | DC |
| 7 | Steering type | mechanic |
| 8 | Battery | 24V/85Ah |
