Forklifts & Parts

Home > Product > Forklift

1t 2t 3t 4t 5t 6t 7t 8t 9t Outdoor Forklift Red Line LED Forklift 10 Tonluk Forklift

XIAMEN LTMG CO., LTD.
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：5T - 10T
  • Fuel：Diesel
  • Load center：>500mm

Base Info

  • Model NO.：FD100
  • Lift height：3000~5000mm
  • Condition：New
  • Engine：Cummins
  • Fork Size：1520*175*85mm
  • Wheelbase：2800mm
  • Transmission：Hydraulic
  • Product Name：New Brand 10 Ton Diesel Forklift with Cummins Engi
  • Product Type：Diesel Forklift
  • Color：Yellow
  • Certificate：Ce,ISO
  • Fork Length：1520mm
  • Tire：Pneumatic
  • Turning Radius：3970mm
  • Ground Clearance：230mm
  • Service Weight：13100kg
  • Fuel Tank Capacity：135L
  • Transport Package：Nude Packing
  • Specification：4280*2170*2830(Without fork)
  • Trademark：LTMG
  • Origin：Ningbo, China
  • HS Code：8427209000
  • Production Capacity：400units,Month

Description

LTMGModel Power shift T/MFD100TLoad capacity kg10000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3000Free lift mm205Fork sizeL*W*Tmm1220*175*75Tilt rangeMast forward/backwarddeg6/12Overall length mm4255Total width mm2245Mast height (fork lowering) mm2850Overall height fork raisedWith backrestmm4430Height to head guard mm2560Turning radius(outside) mm3900Front face of fork to front axle mm710Min. right angle stacking aislewithout load length& clearancemm6250SpeedMax Travelling   full/no loadkm/h24/30Lifting full/no loadmm/s390/410Lowering full/no loadmm/s470/340Max.drawbar pullfull/no loadkg5850/3200Gradeability at 1.6km/hfull load%22Max. Gradeabilityfull/no load%24/20Truck weight kg12450Weight  distributionFull load front/rearkg20160/2290No load front/rearkg5480/6970TiresNumberfront/rear4/2Modelfront axle9.00x20-14PRrear axle9.00x20-14PRWheelbase mm2800TreadFront/rearmm1600/1700At lowest point(mast)mm245Ground clearanceFramemm320BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2000110/2500Rated torqueg-m max.(N.m)42.5/150036/1650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M2-2 power shift T/M

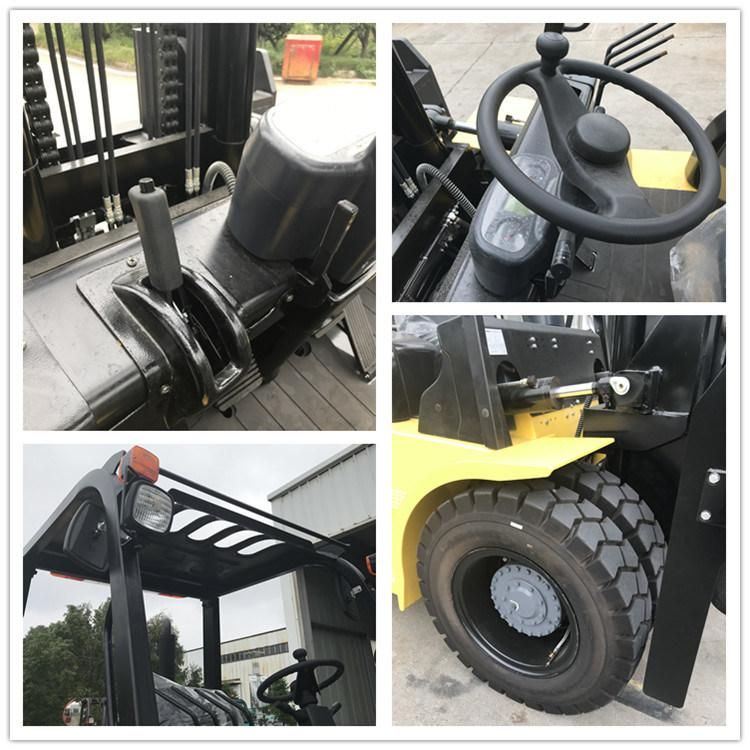

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

1t 2t 3t 4t 5t 6t 7t 8t 9t Outdoor Forklift Red Line LED Forklift 10 Tonluk Forklift

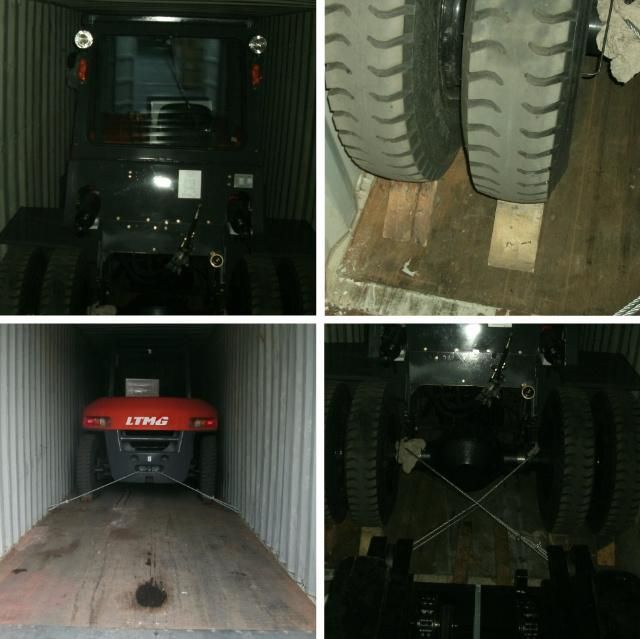

Packing & Shipping

1t 2t 3t 4t 5t 6t 7t 8t 9t Outdoor Forklift Red Line LED Forklift 10 Tonluk Forklift



Our Factory
1t 2t 3t 4t 5t 6t 7t 8t 9t Outdoor Forklift Red Line LED Forklift 10 Tonluk Forklift

Our Customers
1t 2t 3t 4t 5t 6t 7t 8t 9t Outdoor Forklift Red Line LED Forklift 10 Tonluk Forklift

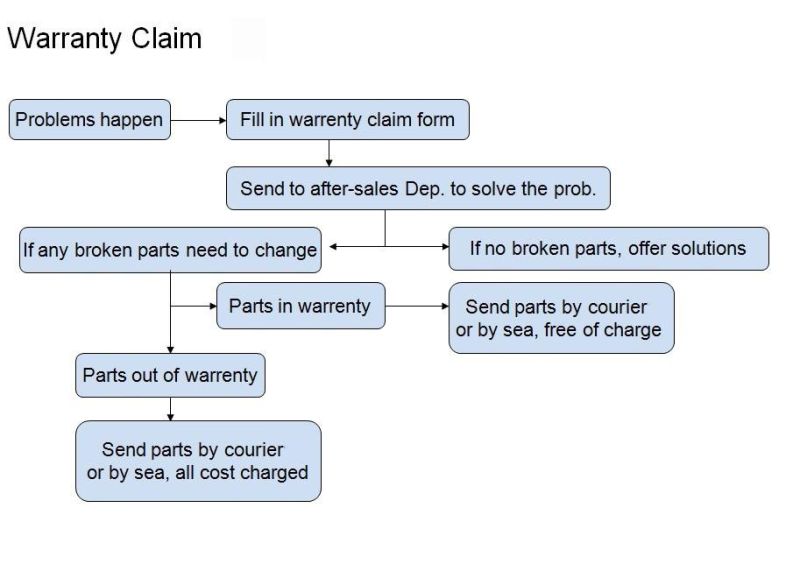

After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

1t 2t 3t 4t 5t 6t 7t 8t 9t Outdoor Forklift Red Line LED Forklift 10 Tonluk Forklift
1t 2t 3t 4t 5t 6t 7t 8t 9t Outdoor Forklift Red Line LED Forklift 10 Tonluk Forklift



FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
