• Model NO.：CPCD20
• Load Capacity：1T - 5T
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Certification：ISO9001: 2000, Ce
• Min.Lifting Height：3000mm
• Max.Lifting Height：6000mm
• Fork Size：1070*120*40mm
• Color：Orange,Yellow,Green
• Transmission Type：Manual,Automatic
• Weight：3550kg
• Engine Brand：Optional
• Tire Type：Pneumatic
• Gearbox Change Speed Type：Hydraulic,Mechanical
• Transport Package：Nude Packing
• Specification：2510*1150*2050mm
• Trademark：GP
• Origin：China
• HS Code：8427209000
• Production Capacity：1000 Units Per Month
• Package size per unit product：251.30cm * 115.00cm * 199.50cm
• Gross weight per unit product：3410.000kg

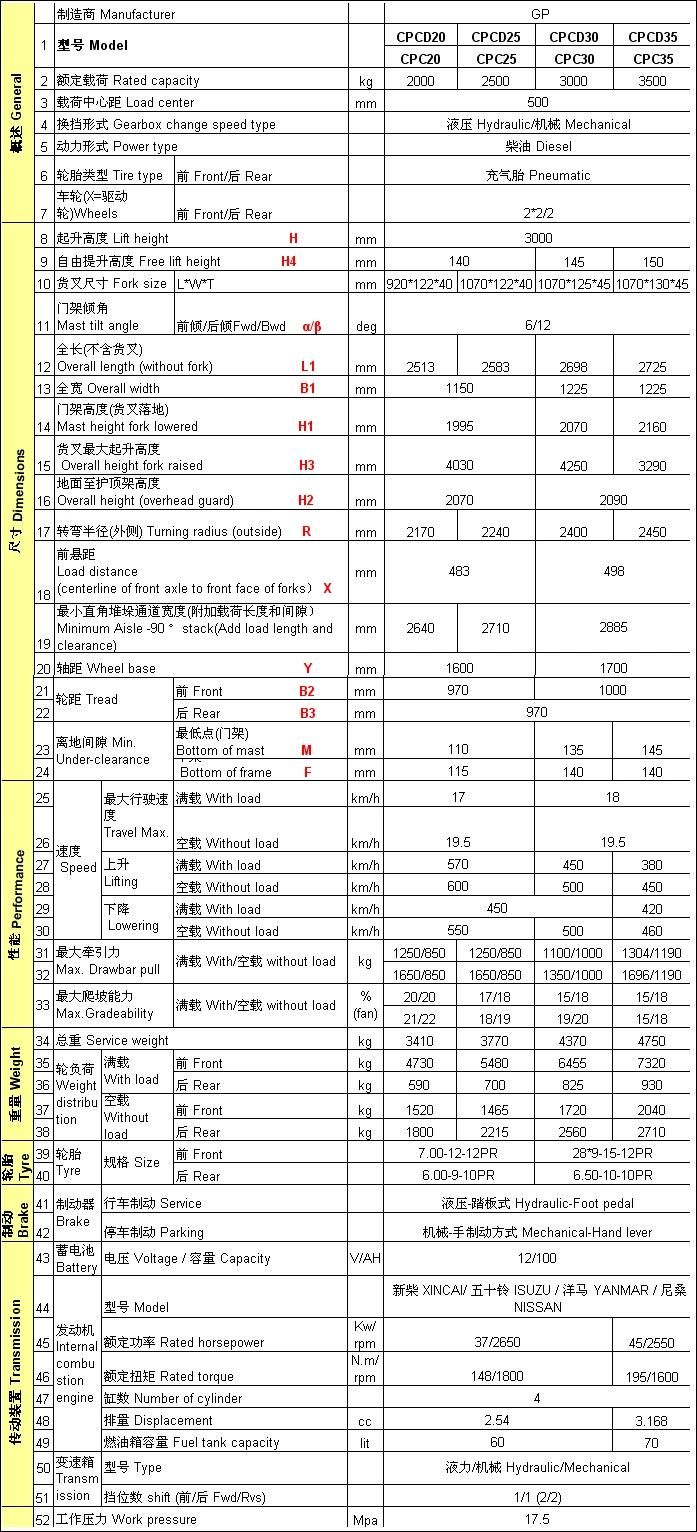

Basic Info.

Model NO. CPCD20 Load Capacity 1T - 5T Fuel Diesel Load center 500mm Lift height 3000~5000mm Condition New Certification ISO9001: 2000, Ce Min.Lifting Height 3000mm Max.Lifting Height 6000mm Fork Size 1070*120*40mm Color Orange,Yellow,Green Transmission Type Manual/Automatic Weight 3550kg Engine Brand Optional Tire Type Pneumatic Gearbox Change Speed Type Hydraulic/Mechanical Transport Package Nude Packing Specification 2510*1150*2050mm Trademark GP Origin China HS Code 8427209000 Production Capacity 1000 Units Per Month

Packaging & Delivery

Package size per unit product 251.30cm * 115.00cm * 199.50cm Gross weight per unit product 3410.000kg

Product Description

1. Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92/94/98 engine, and domestic Xinchai 490/495. Economical but powerful enough.
2. Transmission: with TCM technology.
3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low tensional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.
4. The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.
