• Model NO.：FG50
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Engine：Psi 4.3 EPA
• Wheelbase：2250mm
• Color：Decided by Buyer
• Certificate：EPA ISO Ce
• Weight：8550kg
• Attachment：Optional
• Transport Package：Container
• Specification：3450mm*2010mm*2550mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

General1Model FG502Power type LPG3Rated Capacitykg50004Load centremm600Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1220×150×607Mast title AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm5909Ground clearance (Bottom of mast)mm20010Overall DimensionLength to face of fork (without fork)mm345011Overall widthmm201012Mast Lowered Heightmm255013Mast Extended Height (with backrest)mm438014Overhead Guard Heightmm247015Turning Radius (outside)mm325016Min. intersecting aislemm2960Performance17SpeedTravel(no load)km/h3018Lifting(full load)mm/s50019Max Gradeability%20Chassis 20TireFront 8.25-15-14 PR21Rear 8.25-15-14 PR22Wheelbasemm225023Service Weightkg8550Power&Transmission24BatteryVoltage/Capacity                                      V/Ah(12V/80AH) × 225EngineModel GM4.3L26Manufacture GM27Rated output/r.p.m.kwt/r.p.m56/220028Rated torque/r.p.m.N·mt/r.p.m240/75029No.of Cylinder 630Bore×Strokemm101.6×88.3931Displacementcc430032 Fuel Tank CapacityL14033TransmissionType Hydraulic34StageFWD/RVS 2/235Operating pressure for attachmentMpa19

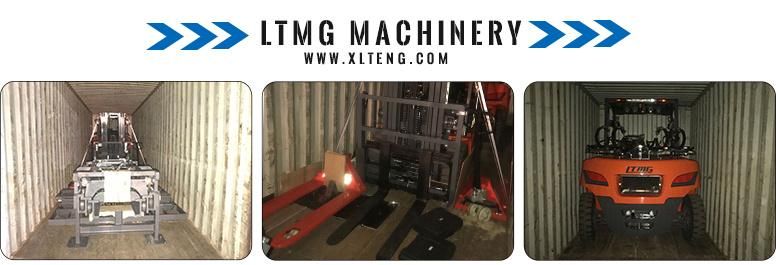

Shipping and Packaging


Our Client


company information





After sales service

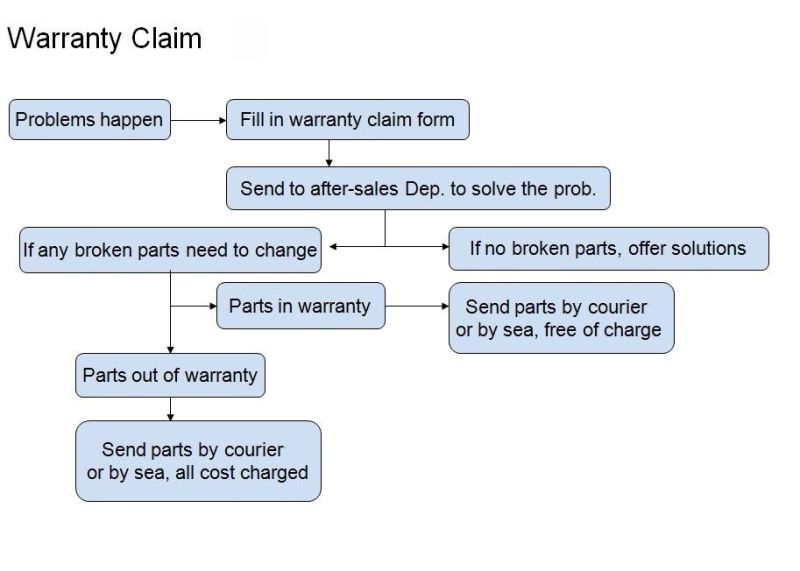

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
