• Model NO.：TFC2550
• Condition：New
• Drive Motor：AC Motor
• Lift Motor：AC Motor
• Controller：USA Curtis
• Rated Capacity：2500kg
• Max. Lifting Height：8000mm
• Warranty：12months or 2000hours
• Operation Type：Seated
• Transport Package：Standard Packing
• Specification：SGS, ISO
• Trademark：MiMA
• Origin：China
• HS Code：8427109000
• Production Capacity：2000 Units,Year

Basic Info.

Model NO. TFC2550 Condition New Drive Motor AC Motor Lift Motor AC Motor Controller USA Curtis Rated Capacity 2500kg Max. Lifting Height 8000mm Warranty 12months or 2000hours Operation Type Seated Transport Package Standard Packing Specification SGS, ISO Trademark MiMA Origin China HS Code 8427109000 Production Capacity 2000 Units/Year

Product Description

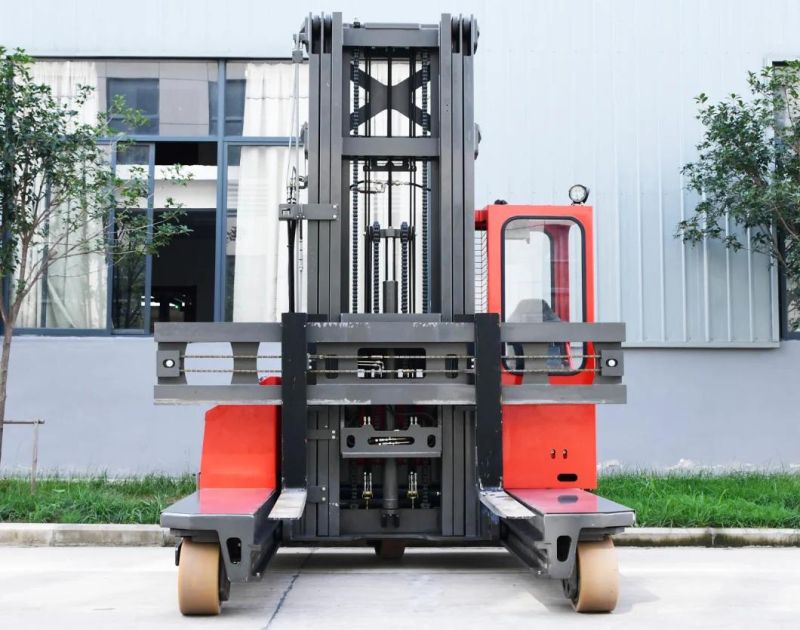

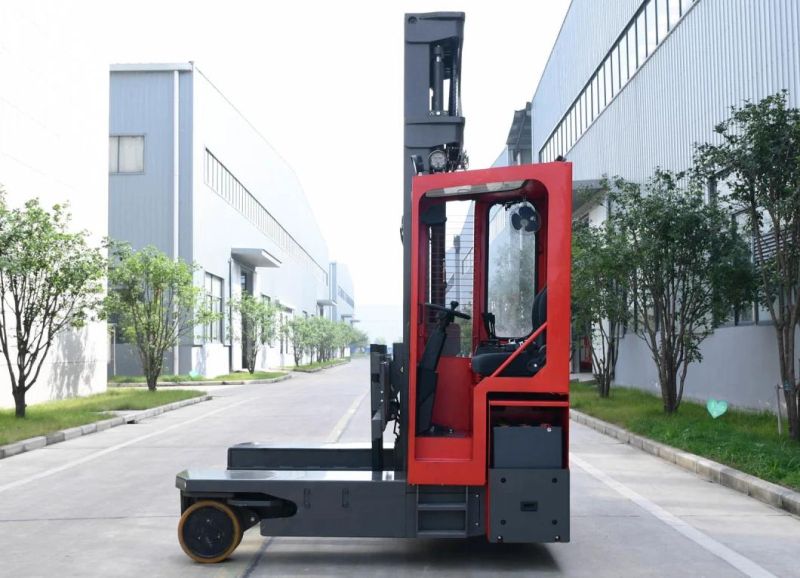

MIMA Multi-directional Sideloader Forklift for Long Material
1. Long material handling, with the function of go straight ,go side and  in situ rotation.
2. Free maintenance full AC drive system.
3.With OPS sensing system, when the operator leaves the seat, the vehicle accelerator will stop
working,  to avoid misoperation.
4. With positioner  to meet different requirements for long material handling.
5. With mast  buffering technology, reducing impact.
6. Ergonomic design of cab , provide a comfortable, safe and efficient operating  for operators.
7. With split battery layout.

Model		TFC40
Operate type		Seated
Rated capacity	kg	4000
Load center	mm	600
Wheelbase	mm	1800
Service weight(incl. battery)	kg	8100
Wheel type		PU
Load wheel size	mm	Φ377*100(double wheels)
Drive wheel size	mm	Φ457*160
Number of wheels, front/rear (x=drive)	mm	4/2x
Mast closed height	mm	3122
Free lift height	mm	1953
Lift height	mm	6000
Mast height with backrest	mm	7140
Cab height	mm	2670
Overall length	mm	2300
Overall width	mm	2960
Fork size	mm	1200*150*50
Fork outside width	mm	560~2900
Driving motor(S2-60min)	kw	7.0AC
Lifting motor(S3 15%)	kw	15AC
Battery voltage/capacity	V/Ah	48/900
Battery weight	kg	1470
Brake type		Electromagnetic

BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.
   Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.


Many of our models are in stock so we can support fast shipping.
For more details please feel free to contact us.


1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.

2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.

3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.

4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.

5.Can you provide training for the customer?
Yeah. We can provide training for our customer.

6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.

7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
