• Model NO.：JDY50D
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Engine：Xinchai
• Rated Loading：5000kg
• Dynamic Form：Diesel
• Max. Lifting Height (mm)：3000mm
• Shelf Size (mm)：1220*150*60
• Minimum Turning Radius (mm)：3250
• Maximum Running Speed Full Load (Km / H)：26
• Maximum Lifting Speed Full Load (M M / M：400
• Maximum Climbing Capacity (%)：20
• Full Length with Shelf (mm)：4650
• Full Width (mm)：2235
• Wheelbase (mm)：2250
• Dead Weight No Load (Kg)：7980
• Displacement (L)：5.785
• Working Pressure (MPa)：20
• Transport Package：Naked
• Specification：5TON
• Trademark：JDY
• Origin：Shandong, China
• HS Code：8408209001
• Production Capacity：100pieces Per Week

Basic Info.

Model NO. JDY50D Fuel Diesel Load center 500mm Lift height 3000~5000mm Condition New Engine Xinchai Rated Loading 5000kg Dynamic Form Diesel Max. Lifting Height (mm) 3000mm Shelf Size (mm) 1220*150*60 Minimum Turning Radius (mm) 3250 Maximum Running Speed Full Load (Km / H) 26 Maximum Lifting Speed Full Load (M M / M 400 Maximum Climbing Capacity (%) 20 Full Length with Shelf (mm) 4650 Full Width (mm) 2235 Wheelbase (mm) 2250 Dead Weight No Load (Kg) 7980 Displacement (L) 5.785 Working Pressure (MPa) 20 Transport Package Naked Specification 5TON Trademark JDY Origin Shandong, China HS Code 8408209001 Production Capacity 100pieces Per Week

Product Description

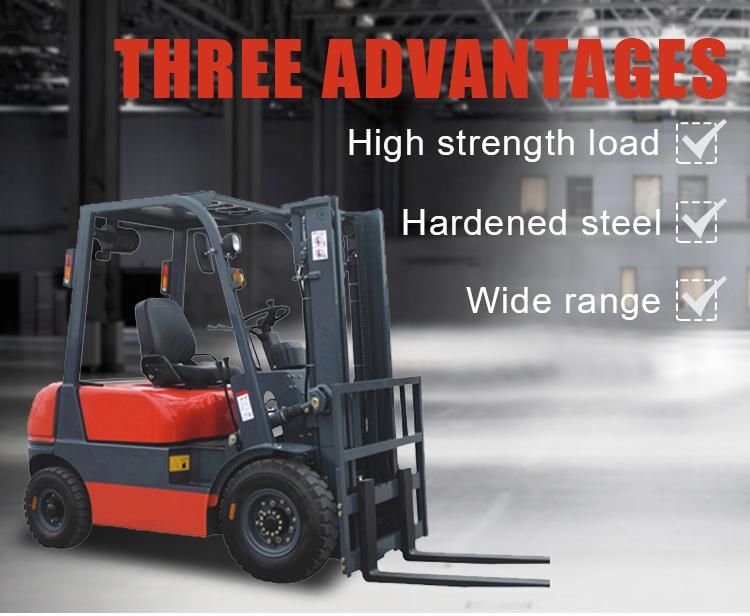

JDY50D WAREHOUSE USE DIESEL FORKLIFT MACHINE

FACTORY SALE,QUALITY GUARANTEE!


JDY50D

Technical specifications

Model	JDY50D
Dynamic form	diesel
Rated load (kg)	5000
Load center (mm)	600
Lifting height (mm)	3000
Free lifting height (mm)	205

Shelf size (mm)	1220*150*60
Gantry tilt front / rear	6/12
Minimum turning radius (mm)	3250
Minimum right angle stacking channel width (mm)	5500
Minimum right angle channel width (mm)	2960
Minimum ground clearance (mm)	200

Height of roof protection frame (mm)	2469
Front suspension distance (mm)	610
Maximum running speed full load (km / h)	26
Maximum lifting speed full load (m m / M)	400
Maximum traction full load (KN)	51.4
Maximum climbing capacity (%)	20

Maximum lifting height of fork (with retaining rack) mm	4380
Landing height of gantry (mm)	2500
Front wheel	8.25-15-14PR
Rear wheel	8.25-15-14PR
Wheelbase (mm)	2250
Track width front / rear (mm)	1470/1700
Dead weight no load (kg)	7980
Battery voltage / capacity V / ah	(12/80)x2
Rated power kW / rpm	81/2500
Rated torque Nm / rpm	353/1700
Bore x stroke (mm)	102*118
Cylinder number	6
Displacement (L)	5.785
Fuel tank capacity (L)	120
Working pressure (MPA)	20

Full length with shelf (mm)	4650
Engine model	CY6102BG6
Full length without fork (mm)	3430
Full width (mm)	2235
