• Model NO.：FB15
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：920mm*100mm*35mm
• Wheelbase：1250mm
• Max.Lifting Height：3000mm
• Turning Raduis(Outside)：1780mm
• Front Face of Fork to Front Axle：375mm
• Min. Right Angle：1770mm
• Ground Clearance：95mm
• Battery：48V,400ah
• Transport Package：Container
• Specification：1955mm*1070mm*2100mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer     LTMGModel    FB15Load capacity  kg1500Load center  mm500Power unit  BatteryOperator type  Driver/seat Tire type  PneumaticWheel(x=driving) Front/rear   2X/2Max. lifting height mm3000Free lift  mm155Fork sizeL*W*Tmm920*100*35Tilt range Mast forward/backward deg6/12Overall length(without fork) mm1955Total width  mm1070Mast height (fork lowering)   mm1995Overall height fork raisedWith backrestmm4030Height to head guard mm2100Turning radius(outside)     mm1780Load distance mm375Min. right angle stacking aisle not add load length&clearancemm2155Speed   Max Travellingfull load km/h14Max TravellingNoload km/h16Liftingfull load mm/s350Liftingnoload  mm/s530Gradeabilityfull load  %15Truck weight(with standard battery) kg2690Weight  distribution  Fullloadfront/rearkg3635/555Noloadfront/rear  kg1110/1580Tires        Number       front/rear   2/2Modelfrontaxle 6.00-9-10-10PRrear axle        16*6-8-10PRWheelbase   mm1250Tread   Front/rearmm910/900Ground clearanceAt lowest point(mast)mm105Frame   mm95BrakeServicebrake    Hydraulic-foot pedal Parking brake Mechanical-hand lever BatteryVoltage/capacity     V-AH/5hr48V-400Weight with box (standard) kg 735Electric motor AC Driving motorkw8DC Hydraulic driving motor kw8.2AC Hydraulic driving motor (as option) kw8Control type Driving AC  , lifting DC
Driving AC  , lifting AC(as option )  Operating pressure  kg/cm²145

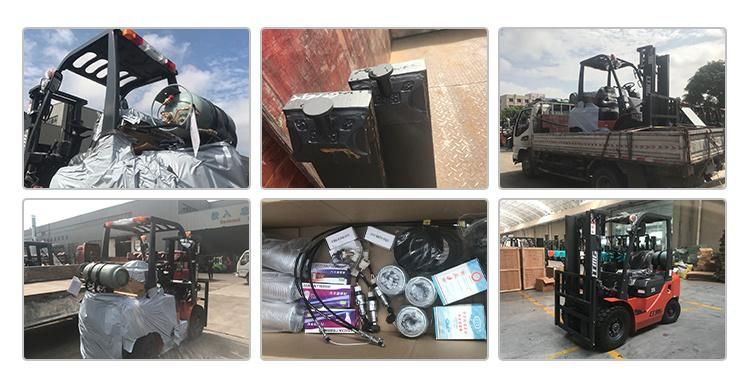

Packing&Shipping


Company information





After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
