• Model NO.：CDD-A
• Lift height：1600mm-3500mm
• Condition：New
• Colour：Red or Yellow
• Warranty：Twelve Months or One Year
• Fork Type：Fixed or Movable
• Certification：Ce
• Transport Package：Bubble Wrap
• Specification：L1760mm*W800mm*H1840mm
• Trademark：ANDY
• Origin：Jiangsu
• HS Code：8427109000
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. CDD-A Lift height 1600mm-3500mm Condition New Colour Red or Yellow Warranty Twelve Months or One Year Fork Type Fixed or Movable Certification Ce Transport Package Bubble Wrap Specification L1760mm*W800mm*H1840mm Trademark ANDY Origin Jiangsu HS Code 8427109000 Production Capacity 10000pieces/Year

Product Description

Product Application Technology Characteristics

1. With a rated load, it is easy to work on a 5% slope;
2. The stacker is compact, flexible, and has good maneuverability. It can also work efficiently and freely in a narrow space;
3. The handle has a turtle speed switch and the handle has an upright walking function;
4. With adjustable balance wheel, the stacker walks smoothly and there is no shaking on the left and right;
5. With good shock absorber effect, the balance wheel assembly is detachable as a whole, which is convenient for maintenance.

 Technology Parameter

model	unit	CDD-A10	CDD-A15
rated load	kg	1000	1500
load center distance	c(mm)	500	500
wheel tread	y  (mm)	1555	1555
weight (with battery)	kg	418-526	430-550
wheel material		pu	pu
front wheel size	(mm)	φ250*80	φ250*80
rear wheel size	(mm)	φ80*70	φ80*70
additional wheel size	(mm)	φ100*50	φ100*50
number of wheels(x=driving wheel)		1x+2/4	1x+2/4
front wheel track	b10(mm)	886	886
rear wheel track	b11  (mm)	525	525
lifting height of fork above ground	h3  (mm)	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500
height of gantry is lowed	h15  (mm)	2090/1590/1840/2090/2340	2090/1590/1840/2090/2340
minimum height of fork above ground	h13  (mm)	90	90
overall length	l1  (mm)	1760	1760
fork size	s/e/l  (mm)	60*170*1100	60*170*1100
overall width	b1  (mm)	800	800
fork width	b5  (mm)	690	690
channel width(1000mm*1200mm tray)	ast  (mm)	2200	2200
channel width  (800mm*1200mm tray)	ast  (mm)	2100	2100
radius of turning circle	wa  (mm)	1370	1370
driving speed,full load/no load	km/h	4/5.6	4/5.6
lifting speed,  full load/no load	m/s	0.08/0.1	0.08/0.1
falling speed,  full load/no load	m/s	0.09/0.12	0.09/0.12
maximum climbing ability ,full load/no load	%	3/7	3/7
service brake		electromagnetic brake	electromagnetic brake
driving motor power	kw	0.75(ac)	0.75  (ac)
lifting motor power	kw	2.2(dc)	2.2  (dc)
battery capacity	v/ah	24v/80ah	24v/80ah
noise level according to DIN12053	db(a)	<70	<70

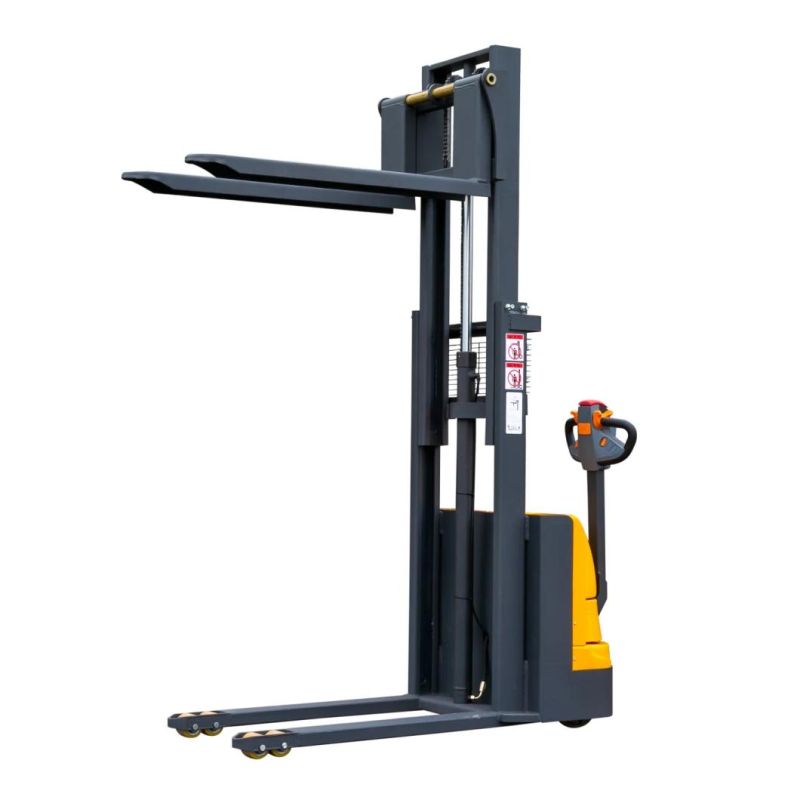

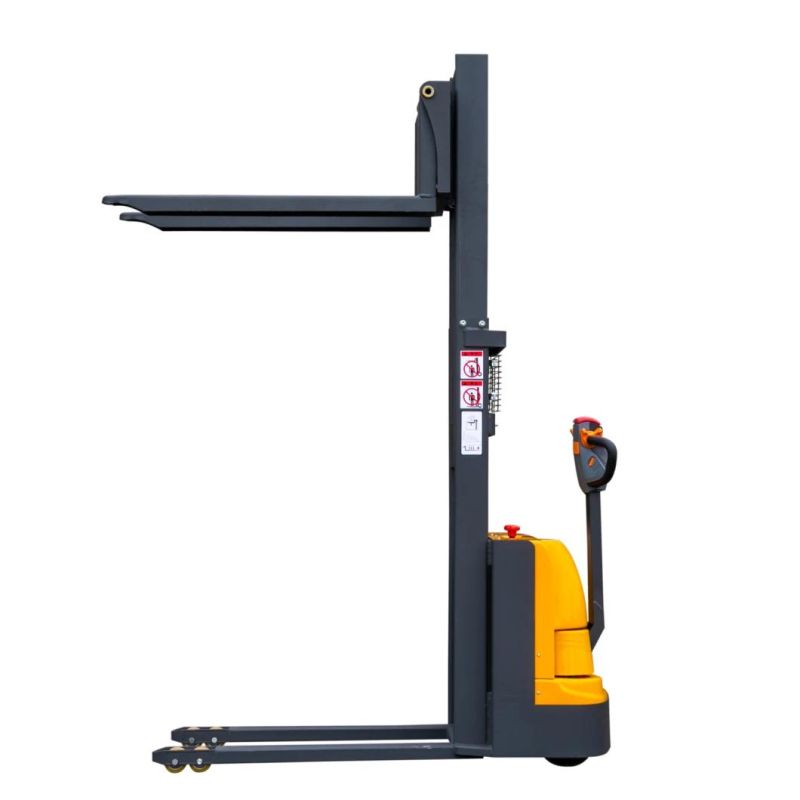

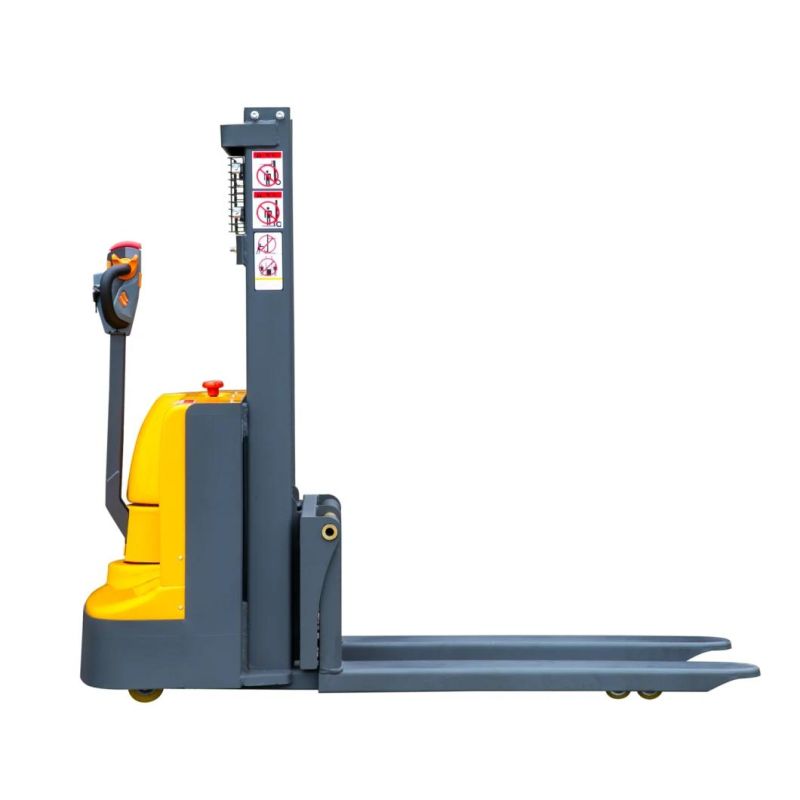

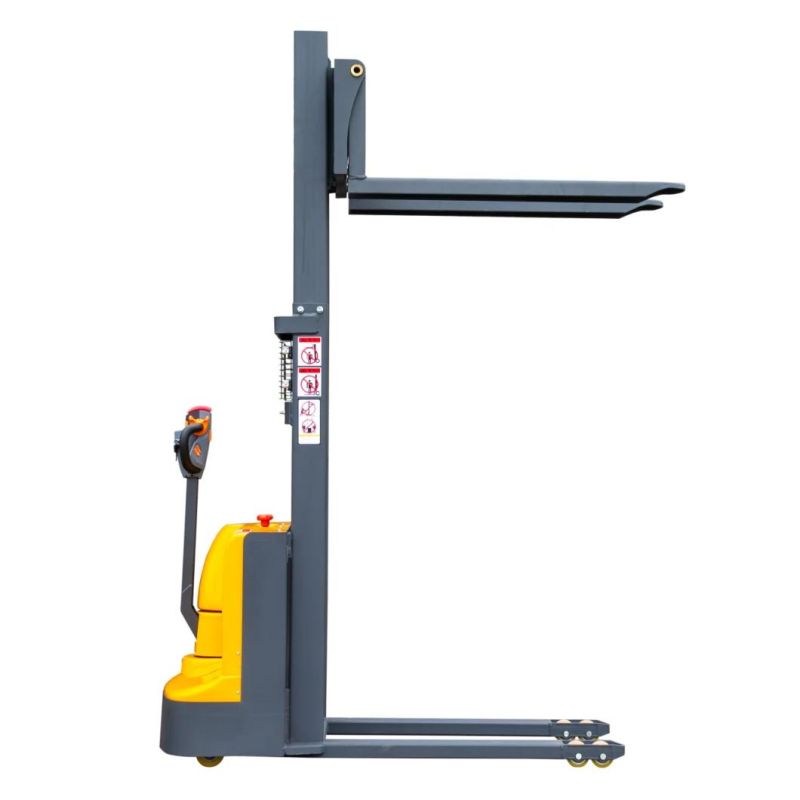

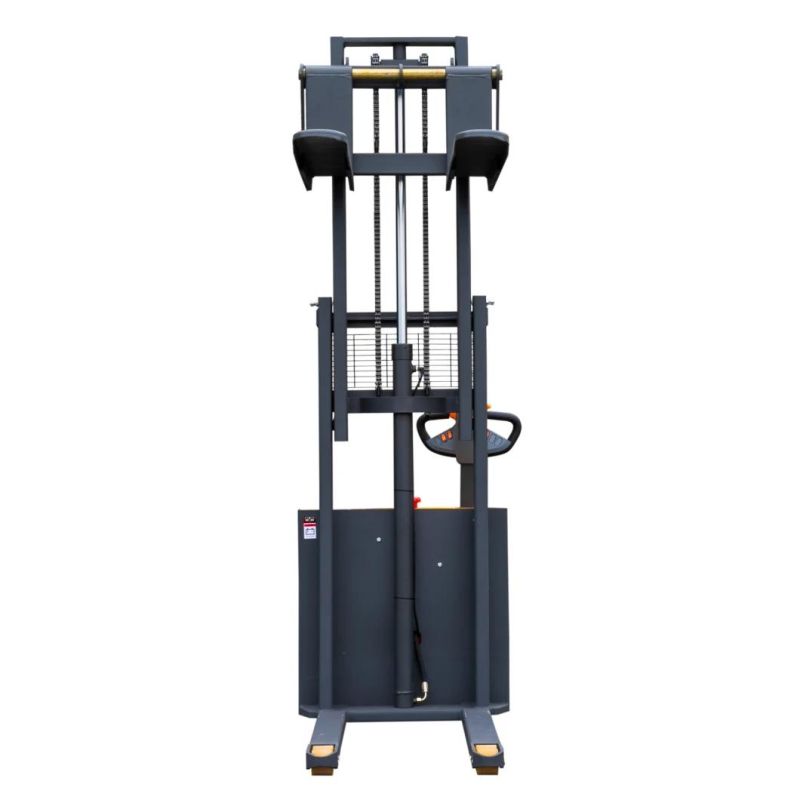

 Product images

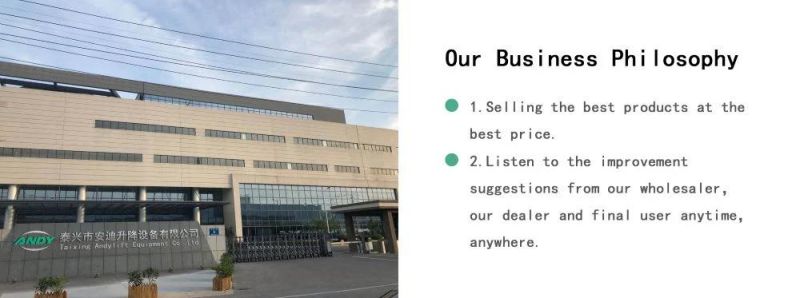

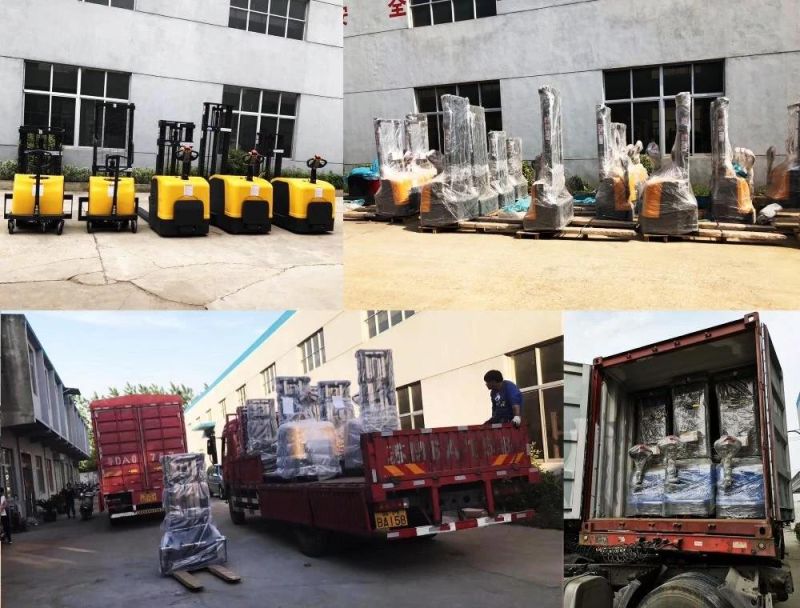

 Our Factory
    Taixing Andylift Equipment Co.,Ltd. was founded in 2009, we have powerful R&D ability and advanced production technology that make sure of product quality. We have accumulated abundant experience of production and marketing for hand stacker,semi-electric stacker ,electric stacker, manual pallet truck ,semi-electric pallet truck,electric pallet truck etc,our factory also accept customization.So many years of experience makes us professional in the field. We provide the most comprehensive range of products with stable quality, first class after-sale service, technical and parts supports by the professional and high efficiency team working behind. We have already exported various kinds of products to overseas countries and regions such as Indonesia, Vietnam, Myanmar, Korea, Malaysia, South African etc.
Our advantage includes:

1. Stocking for standard models, delivery timely;
2. Various customized products;
3. Response quickly for inquiry and complain;
4. Reliable quality and the competitive price;

Any request, any details,as long as you want to know,please feel free to contact us,we will warmly welcome!




FAQ1,   Q: How long is the warranty of your products?
      A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.

2,Q:What payment terms do you accept?
      A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.

3,Q:How long can I get my order finished?
      A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.

4,Q:Can you customize the configuration/logo/lable/color according to our requirements?
      A:Yes.

5.   Q:Do you accept small order?
      A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case by case.
