• Model NO.：XCS45
• Fuel：Diesel
• Load center：>500mm
• Lift height：>5000mm
• Condition：New
• Capacity：45000kg
• Drive：Wheel
• Wheel Base：6000mm
• Max. Lifting Height: 15100mm：15100mm
• Max. Lifting Speed：425mm,S
• Engine Rated Power：26,21005kw ,(R,Min)
• Transport Package：Nude
• Specification：11295x6052x4489mm
• Trademark：ORIEMAC
• Origin：Xuzhou
• Production Capacity：100unit,Month

Basic Info.

Model NO. XCS45 Fuel Diesel Load center >500mm Lift height >5000mm Condition New Capacity 45000kg Drive Wheel Wheel Base 6000mm Max. Lifting Height: 15100mm 15100mm Max. Lifting Speed 425mm/S Engine Rated Power 26/21005kw /(R/Min) Transport Package Nude Specification 11295x6052x4489mm Trademark ORIEMAC Origin Xuzhou Production Capacity 100unit/Month

Product Description

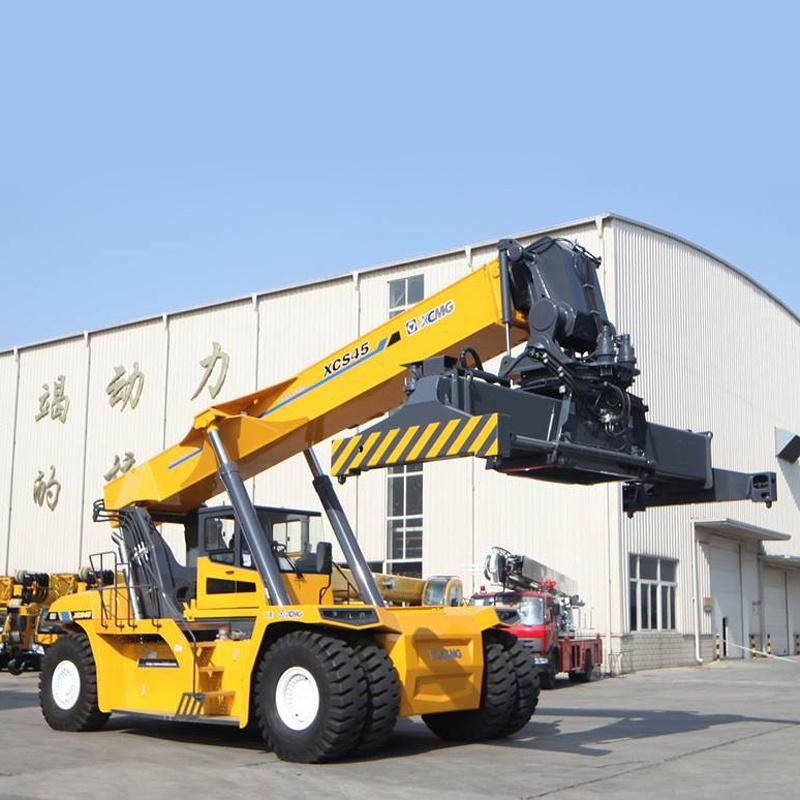

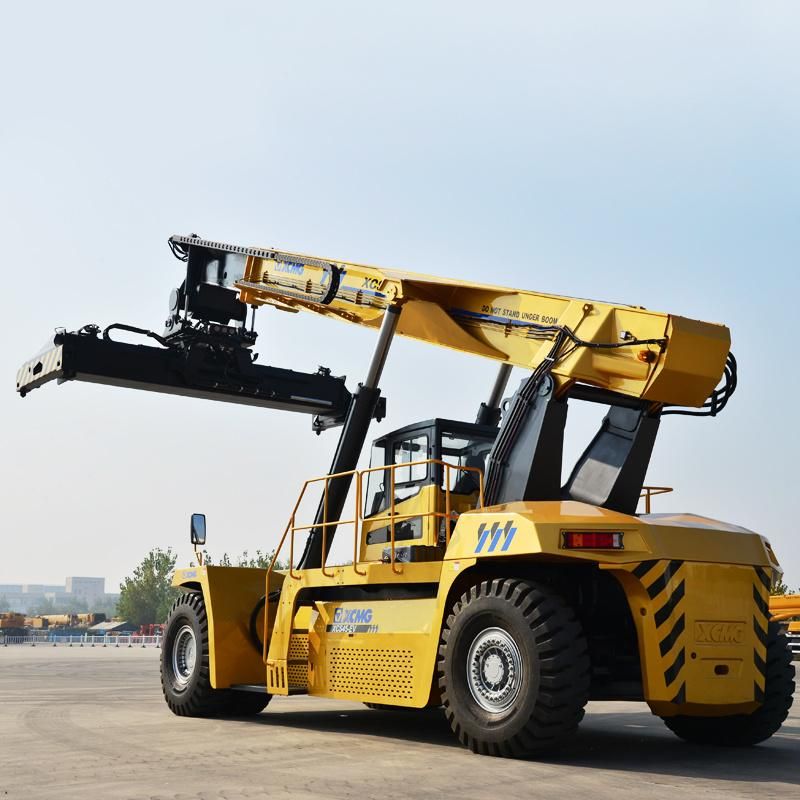

ORIEMAC XCS45 stacker 45tons reach stacker crane
45 t container reach stacker with best working efficiency and complete safety measures. Unique low speed large torque optimal transmission chain, innovative oil cylinder differential control technology and vertically lifting spreader technology contribute to highest working efficiency in the industry;the technologies specialized for container reach stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading and driving safety active protection, lead to better active safety; three energy-saving measures, such as flow self-adaptive load sensitive hydraulic system, efficient power transmission system and transmission ECO control, lead to more fuel-efficient.

(1) Efficient operation

Unique low speed large torque optimal transmission chain, max. travel speed of 27 km/h and high power performance contribute to quick job site transfer.

Innovative oil cylinder differential control technology and vertically lifting spreader technology contribute to rapid working speed, leading to 15% improvement in efficiency while lifting and stacking containers.

(2) Safe and free from worry

With accumulation of experience for 75 years in crane safety control and the technologies developed for container reach stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading, driving safety active protection, detection of driver in place, the active safety of the machine during driving and lifting operation are improved to the greatest extent.

(3) Energy-saving and economical

Three energy-saving measures, such as flow self-adaptive load sensitive hydraulic system, efficient power transmission system and transmission ECO control, lead to high transmission efficiency, less energy loss, reduced fuel consumption by 10% ~ 15%.

(4) Comfortable driving

Fourteen humanization-oriented designs, such as movable panorama driver's cab,man-machine interactive system for providing abundant information and perfect lighting system, etc. offer more comfortable driving and operating environment.

Note: due to the continuous modification and improvement of products, we reserve the rights to modify product model, parameters and configuration without any notice.

Item	Unit	Parameter
Rated lifting capacity	kg	45000
Max. lifting height	mm	15100
Max. lifting speed	mm/s	425
Max. travel speed	km/h	27
Engine rated power	kW /(r/min)	265/2100
