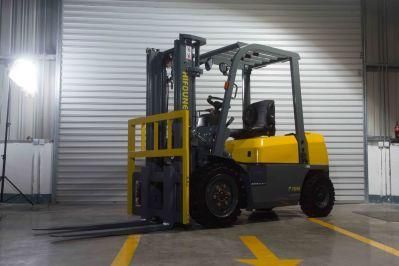

Hifoune 3t LPG Forklift with Triplex Mast 4.5 to 6 M Lifting Height

Xiamen Hifoune Technology Co., Ltd.
  • Warranty：One Year or 2000hours
  • Cab Location：Adjustable
  • Type：Gasoline&LPG Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Gasoline LPG

Base Info

  • Model NO.：FD30T
  • Load center：500mm
  • Lift height：>5000mm
  • Condition：New
  • Engine：Xinchai,Isuzu,Mitsubish
  • Weight：4310kg
  • Rated Capacity：3000kg
  • Fork Size：1220X125X45mm
  • Transmission Box Type：Automatic Transmission
  • Tire Type：Pneumatic Tire
  • Transmission：Hydraulic
  • Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
  • Mast：Duplex Mast (Triplex Mast Optional)
  • Color：Customized
  • Certification：CE,ISO
  • Transport Package：Container
  • Specification：2705x1240x2130mm(LXWXH)
  • Trademark：Hifoune
  • Origin：Cn
  • HS Code：8427109000
  • Production Capacity：4500sets,Year

Description

ModelUNITFG30TSpecificationsPower Unit gasolineOperator Type Driver/seatTransmission Box Type Electronic hydraulic transmissonRated Capacitykg3000Load Centermm500Max. Lifting Heightmm3000Tyre Type Pneumatic TyreTyre Number(Front/Rear) 2/4Tyre Size (Front/Rear) 28×9-15-14PR/6.5-10-10PRPerformanceLifting Speed (Loaded/Unloaded)mm/s500/550Lowering Speed (Loaded/Unloaded)mm/s480/450Travelling Speed (Loaded/Unloaded)km/h19/20Max. Gradeability (Loaded)%21Max. Drawbar Pull (Loaded)n18Mast Tilting Angle (Fwd/Bwd)deg6/12Free Lifting Heightmm150Turning Radiusmm2400DimensionsOverall length (without fork)mm2705Overall Widthmm1240Overhead Guard Heightmm2130Fork Size (LxWxT)mm1220×125×45Mast Height (Fork lowered)mm2140Battery(Voltage/Capacity)V/Ah12/90Truck Weightkg4310Fuel tank capacityL70EngineBrand  NISSANModel K25Rated Powerkw/rpm37.4/2300Rated torquen-m/rpm176.5/1600Number of cylinder 4Displacement 2.49
Hifoune 3t LPG Forklift with Triplex Mast 4.5 to 6 M Lifting Height
Hifoune 3t LPG Forklift with Triplex Mast 4.5 to 6 M Lifting Height
Hifoune 3t LPG Forklift with Triplex Mast 4.5 to 6 M Lifting Height

Hifoune 3t LPG Forklift with Triplex Mast 4.5 to 6 M Lifting Height
Shipping & Packing
Hifoune 3t LPG Forklift with Triplex Mast 4.5 to 6 M Lifting Height
About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
