• Model NO.：FD35
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*50mm
• Weight：4780kg
• Engine：Mitsubishi
• Color：Decided by Buyer
• Wheel Base：1700mm
• Service Brake：Hydraulic
• Rated Power：35.4kw,2250rpm
• Max. Lifting Height：3000mm
• Ground Clearance ：135mm
• Truck Weight：4780kg
• Transport Package：Container
• Specification：2760mm*1285mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

FD35T Technology SpecificationFeatures 1Manufacturer   LTMG2ModelPower shift T/M         FD35Manual shift T/M          3Load capacity       kg35004Load center   mm5005Power unit    Diesel 6Operator type    Driver/seat 7Tire type Front/rear Pneumatic  8Wheel Front/rear 2/2Dimension 9Max. lifting height  mm300010Free lift         mm15011Fork size                  L*W*Tmm1070*125*5012Tilt range    Mast forward/backwarddeg6/1213Overall length(without fork)  mm276014Total width   mm128515Mast height (fork lowering)   mm207516Overall height fork raised  With backrestmm425017Height to head guard  mm214018Turning raduis(outside)        mm249519Front face of fork to front axle mm48520Min. right angle stacking aisle
without load length&clearence                   mm2975Performance   21Speed Max Travelling    full/no loadkm/h18/19.522Lifting                 full/no loadmm/s450/50023 Lowering           full/no load mm/s450/42024Max.drawbar pull Power shift T/M   full/no load             kg2100/1000Manual shift T/M  full/no load              kg2100/100025Gradeability at 1.6km/hPower shift T/M   full/no load            %18/20Manual shift T/M  full/no load       %18/20Weight  26Truck weight kg478027Weight  distributionFull  load             front/rearkg7380/90028No  load              front/rear kg1820/2960Frame29Tires  Number front/rear2/230Modelfront axle  28x9-15-12PR31rear axle 6.50-10-10PR32Wheelbase  mm170033Tread   Front/rearmm1060/97034Ground clearence At lowest point(mast)mm120Frame mm13535Brake   Service  brake Hydraulic-foot pedal  Parking brake  Mechanical-hand lever   Engine36Battery    Voltage/capacityV/AH12/8037Engine  Model  ISUZU 4JG2Rated power kw/rpm44.8/2450Rated torque N.m/rpm186/1800Number of cylinders  4Placement L3.059Fuel tank capacity L7038TransmissionSpeed forward/backwardPower shift T/M            Manual shift T/M

1-1 power shift T/M

2-2 manual shift T/M

39Operating pressure Hydraulic system pressurekg/cm²180

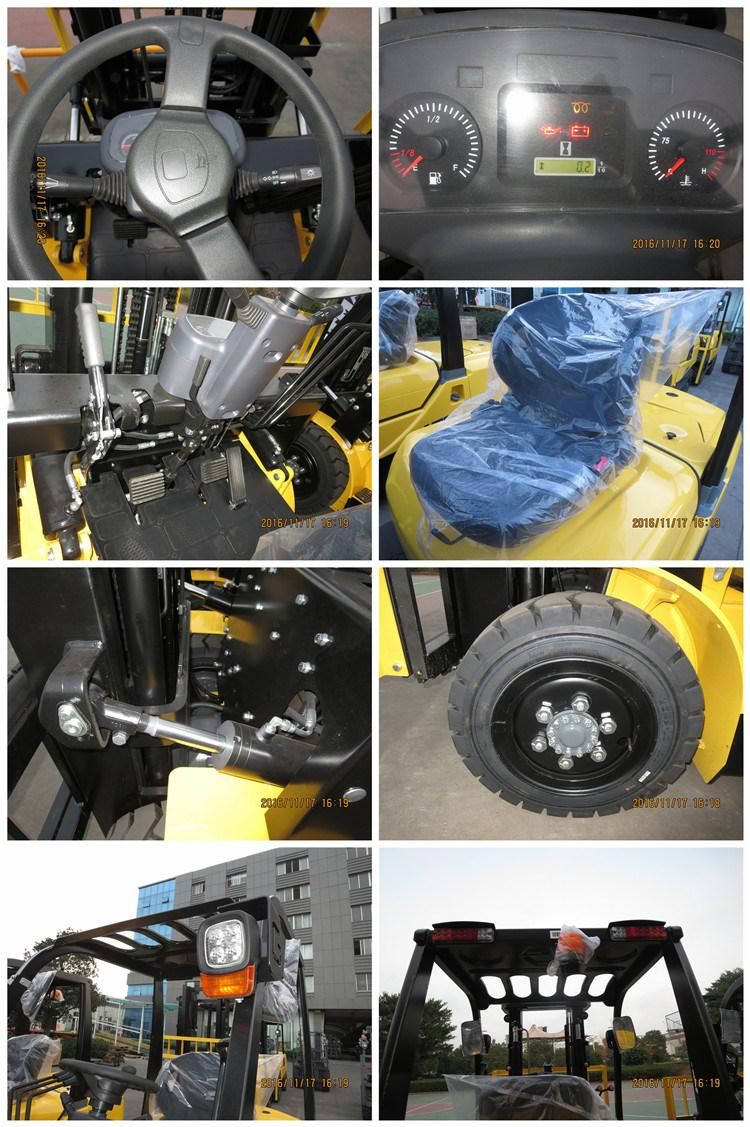

Product Features


1. Original Isuzu C240 engine,high quality compliant with worldwide stage IIIA emission standard.The powerful engine ensures LTMG forklift truck high handing performance.

2. The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.

3. Thicker reinforcing plate ensures the safety and efficiency.

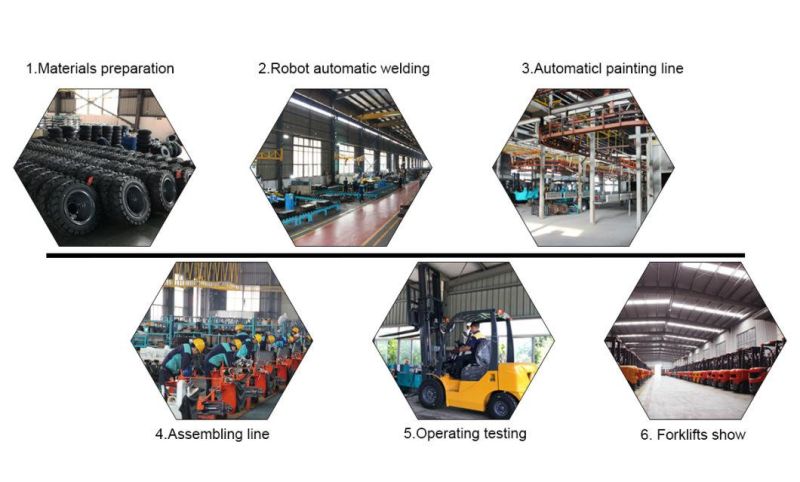

Factory



Customer


After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
