• Model NO.：FG60
• Lift height：3000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：9150kg
• Engine：Psi 4.3 EPA
• Wheel Base：2250mm
• Color：Decided by Buyer
• Certificate：EPA ISO CE
• Rated Power：56kw,2200rpm
• Max.Lifting Height：3000mm
• Tire：Pneumatic
• Mast：3 Stage
• Product Name：New Forklift The Forklift Ltmg LPG Forklift 6 Ton
• Transport Package：Container
• Specification：3450mm*2010mm*2550mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

General1Model FG602Power type LPG3Rated Capacitykg60004Load centremm600Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1220×150×607Mast title AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm5909Ground clearance (Bottom of mast)mm20010Overall DimensionLength to face of fork (without fork)mm345011Overall widthmm201012Mast Lowered Heightmm255013Mast Extended Height (with backrest)mm438014Overhead Guard Heightmm247015Turning Radius (outside)mm325016Min. intersecting aislemm2960Performance17SpeedTravel(no load)km/h3018Lifting(full load)mm/s50019Max Gradeability%20Chassis 20TireFront 8.25-15-14 PR21Rear 8.25-15-14 PR22Wheelbasemm225023Service Weightkg9150Power&Transmission24BatteryVoltage/Capacity                                      V/Ah(12V/80AH) × 225EngineModel PSI 4.326Manufacture PSI27Rated output/r.p.m.kwt/r.p.m56/220028Rated torque/r.p.m.N·mt/r.p.m240/75029No.of Cylinder 630Bore×Strokemm101.6×88.3931Displacementcc430032 Fuel Tank CapacityL14033TransmissionType Hydraulic34StageFWD/RVS 2/235Operating pressure for attachmentMpa19
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

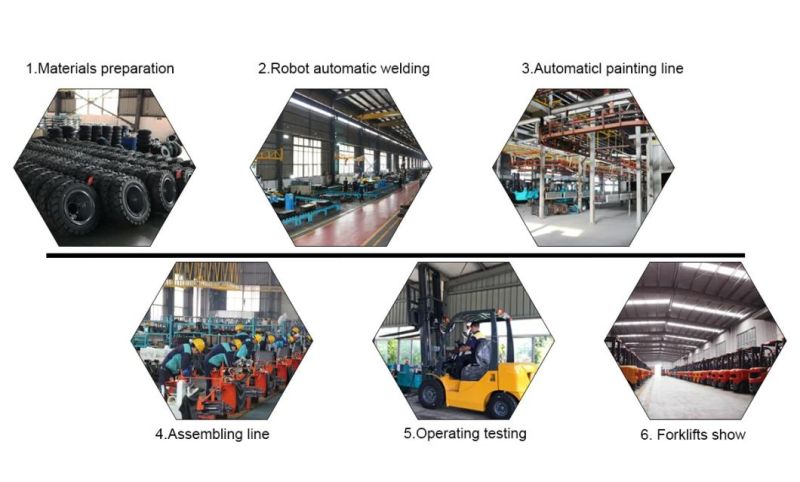

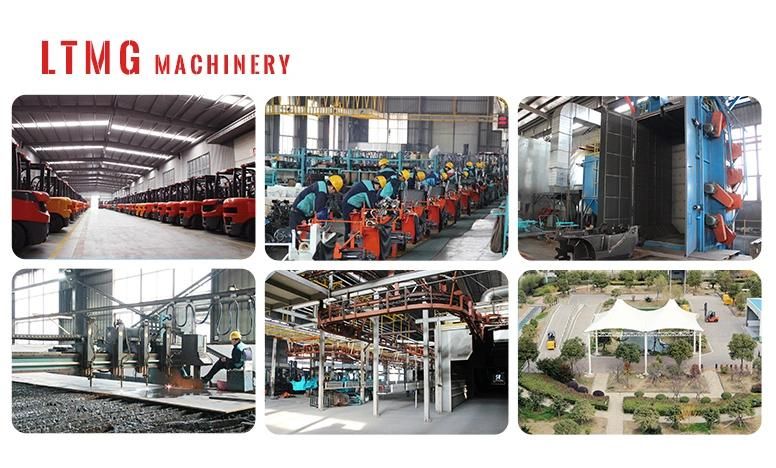

Factory





After sales service






Customers




FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
