L1 Li-ion 4 Wheel Counterbalance Truck From Ep Equipment with Quick Charging and High Performance
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- Cab Location：Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1.5t-3.5t
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：CPD20L1
- Lift height：3000mm-6000mm
- Condition：New
- Certifiation：Ce,ISO
- Mast：Wideview,Fullfree
- Fork Length：1070-2400mm
- Tyre Standard：Solid
- Load Centre Distance：500mm
- Turning Radius：2080mm
- Travel,Laden/Unladen：10.5,14km,H
- Lifting Speed,Laden/Unladen：0.28,0.42m,S
- Drive Motor Rating S2 60 Min：6kw
- Standard Battery Capacity：48V,360ah
- Chemical Material：LFP
- Transport Package：Nude
- Specification：2570*1356*2210mm
- Trademark：EP
- Origin：China
- HS Code：8427109000
- Production Capacity：3500units
Description
Model designationCPD15L1 CPD20L1 CPD30L1 CPD35L1 1.3 Drive unit Electrics Electrics Electrics Electrics 1.4 Operator type Seated Seated Seated Seated 1.5 rated capacity Q t 1.5 2 3 3.5 1.6 Load center distance c mm 500 500 500 500 1.8 Load distance,centre of drive axle to fork x mm 405 405 500 500 1.9 Wheelbase y mm 1470 1470 1698 1698 Weight 2.1 Service weight (include battery) kg 2640 2950 4830 5360 2.2 Axle loading, laden driving wheels /steering wheels kg 3615/525 4380/570 6840/990 7750/1110 2.3 Axle loading, unladen driving wheels /steering wheels kg 1190/1450 1155/1795 2065/2765 2185/3175 Types,Chassis 3.1 Tyre type,driving wheels /steering wheels Solid rubber Solid rubber Solid rubber Solid rubber 3.2 Tyre size, driving wheels 18X7-8 200/50-10 23X10-12(578X228) 23X10-12(578X228) 3.3 Tyre size, steering wheels 5.00-8 5.00-8 200/50-10(453X194) 200/50-10(453X194) 3.5 Wheels, number driving/steering (x=drive wheels) mm 2x/ 2 2x/ 2 2x/ 2 2x/ 2 3.6 Tread, Driving wheels b10 mm 910 910 1100 1100 3.7 Tread, Steering wheels b11 mm 920 920 1020 1020 Dimensions 4.1 Tilt of mast/fork carriage forward/backward α/ β (°) 6/ 11 6/ 11 5/ 9 5/ 9 4.2 Height, mast lowered h1 mm 2080 2080 2210 2210 4.3 Free lift (load backrest) h2 mm 95 95 140 140 4.4 Lift height h3 mm 3000 3000 3000 3000 4.5 Height, mast extended h4 mm 4015 4015 4130 4130 4.7 Height of overhead guard (cabin) h6mm 2080 2080 2210 2210 4.8 Seat height h7 mm 1050 1050 1120 1120 4.12 Tow center of pin height h10 mm 360 360 380 380 4.19 Overall length l1 mm 3270 3270 3640 3660 4.20 Length to face of forks l2 mm 2200 2200 2570 2590 4.21 Overall width b1/ b2 mm 1080 1080 1356 1356 4.22 Fork dimensions s/ e/ l mm 40×100×1070 40×100×1070 45×125×1070 50×125×1070 4.23 Fork carriage class/type A, B 2A 2A 3A 3A 4.24 Fork carriage width b3 mm 1040 1040 1228 1228 4.31 Ground clearance, laden, below mast m1 mm 110 110 130 130 4.32 The minimum ground clearance of frame m2 mm 105 105 125 125 4.34.1 Aisle width for pallets 1000 × 1200 crossways Ast mm 3685 3685 4090 4100 4.34.2 Aisle width for pallets 800 × 1200 lengthways Ast mm 3885 3885 4290 4300 4.35 Turning radius Wa mm 2080 2080 2390 2400 Performance data 5.1 Travel speed, laden/ unladen km/ h 10.5/14 10.5/14 15/16 15/16 5.2 Lifting speed, laden/ unladen m/ s 0.3/ 0.42 0.28/ 0.42 0.4/0.45 0.4/0.45 5.3 Lowering speed, laden/ unladen m/ s 0.42/ 0.45 0.43/ 0.45 0.44/ 0.48 0.44/ 0.48 5.5 Drawbar pull, laden/unladen N - - - -- 5.6 Max. drawbar pull, laden/unladen (time) N - 10000 - 17800 5.7 Gradeability, laden/unladen % - - - -- 5.8 Max. gradeability, laden/unladen % 10.5/14 10.5/14 16/20 16/20 5.10 Service brake type Electromagnetic Electromagnetic Mechanics+ Hydraulic Mechanics+ Hydraulic park brake type Electromagnetic Electromagnetic Mechanical Mechanical Electric-engine 6.1 Drive motor rating S2 60 min kW 6 6 16.6 16.6 6.2 Lift motor rating at S3 15% kW 7.5 7.5 24 24 6.3 The maximum allowed size battery mm - - 891 X 550 X 680 891X550X680 6.4 Battery voltage/nominal capacity K5 - - 80V 540AH 80V540AH 6.5 Battery weight kg - - 420 420 Standard battery pack capacity V / AH 48V / 360AH 48V / 360AH 80V / 540Ah 80V / 540Ah Chemical Material LFP LFP LFP LFP Charger V / A 48V / 150A 48V / 150A 80V / 200A 80V / 200A Addition data 8.1 Type of drive unit AC AC AC AC 10.5 Steering type - - - - 10.7 Sound pressure level at the driver's ear dB (A) - - 70 70
Application
COMPANY INFORMATION
OUR SERVICE
FAQ
Q1), How about the Maintenance?
A1: EPT20-15ET runs on industry standard, Curtis controller that can be serviced by any forklift service company near you .

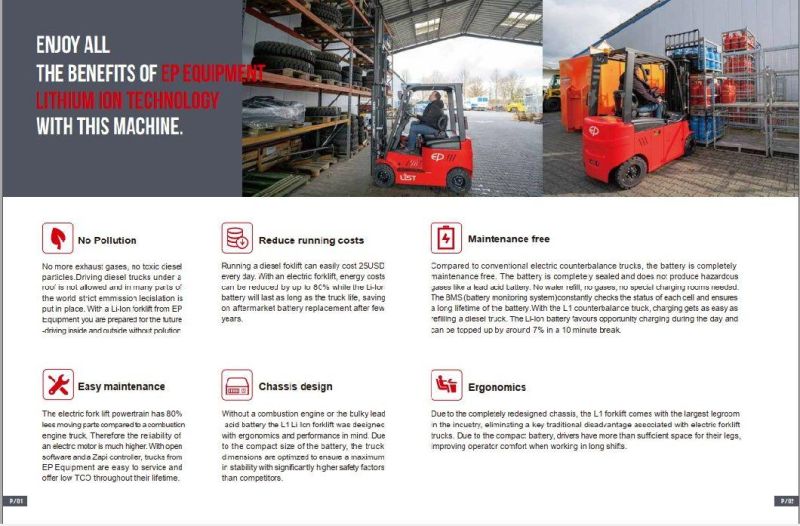

Q2), Does have Li-on Type?
A2: Yes, EP have List Products, So may you wonder to know what is EP List ?
1), Integrated truck desigh with Li battery .
2), Smart the battery as Data Control .
3), Plug in/ Out parts design make Smart Services
Q3), And may you wonder to know How about EP after-sales Services ?
A3: Four ways;
1), Overseas service center available , EP have EU branch in Belgium , Japan Branch ....
2), Engineers available to service machinery overseas ,EP engineers support the regular training and services to go to the customer's company .
3), Overseas third-party support available , EP Partners over 140 Countrys and are can support services .
4), EP Online After-sales system EP-Care is the first in industry ,So may you wonder to know what is EP-Care System ?
a4): EP is the only factory in China who to issue online service system for customers, It includes;
1), Online Claim system,
2), Online Technique system,
3), Online Forklift tracking system,
4), Online spare parts order system,
Customers can submit their quality claim, ask technique help, Tracking their forklifts and Order spare parts online easily, All this will be replied by EP service man within 24hours
