• Model NO.：MHA
• Drive Motor：AC 1.5kw
• Lift Motor：DC 3.0kw
• Steering Type：EPS
• Wheel Type：PU
• Operation Type：Stand on
• Fork Size：1070*100*40mm
• Brake Type：Electromagnetic
• Pedal Height：240mm
• Turning Radius：1625mm
• Warranty：One Year
• Transport Package：Standard Package
• Specification：2825mm*1150mm*2250mm
• Trademark：MIMA
• Origin：Anhui, China
• HS Code：84271090
• Production Capacity：1000 Units,Year

Basic Info.

Model NO. MHA Drive Motor AC 1.5kw Lift Motor DC 3.0kw Steering Type EPS Wheel Type PU Operation Type Stand on Fork Size 1070*100*40mm Brake Type Electromagnetic Pedal Height 240mm Turning Radius 1625mm Warranty One Year Transport Package Standard Package Specification 2825mm*1150mm*2250mm Trademark MIMA Origin Anhui, China HS Code 84271090 Production Capacity 1000 Units/Year

Product Description

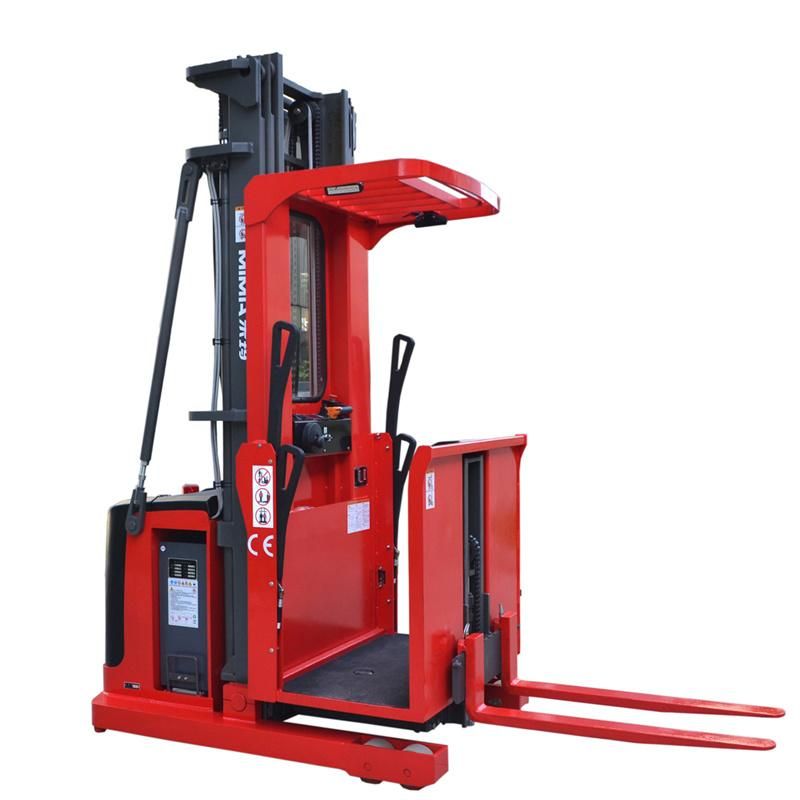

High Level Li Ion Battery Powered Electric Order Picker with CE
 Product details

1. EPS,save energy,low noise;
2. Steering wheel position display ;
3. Lifting system use proportional control, start and stop smoothly, no shake .
4. Free maintenance AC driving;
5. Auxiliary lifting function ,reduces working intensity and improves working efficiency;
6. With location detection guard ,to ensure driver's safety;
7. When the fork reach the highest position, the power will be cut off ,avoid mechanical impact;
8. Limited  speed when at high position;
9. Easy to disassemble and maintenance.

Brand		MIMA	MIMA
Model		MHA1030	MHA1060
Power type		Electric	Electric
Operation type		Stand on	Stand on
Rated capacity	kg	1000kg	1000kg
Load center	mm	500	500
Lift height	mm	3000	6000
Fork size	mm	1070/100/40	1070/100/40
Front overhang	mm	148	160
Turning radius	mm	1625	1625
Driving speed(load/unload)	km/h	4/4.8	4/4.8
Lifting speed(load/unload)	mm/s	110/125	110/125
Lowering speed	mm/s	310/260	310/260
Battery voltage/capacity	V/Ah	24/400	24/400
Steering system		EPS	EPS

Company introduction

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.

Our workshop and warehouse



Many of models are in stock, for more details please get in touch with us.
