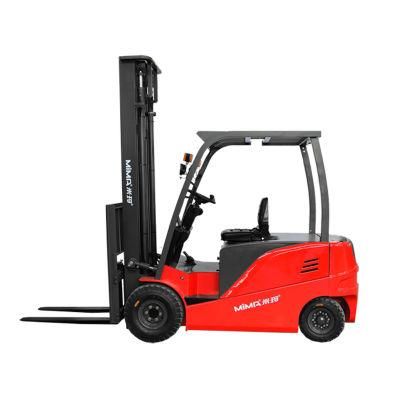

Mima 3 Ton Electric Counterbalance Forklift with Competitive Price
Banyitong Science & Technology Developing Co., Ltd.- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
- Lift height：>5000mm
Base Info
- Model NO.：MK
- Condition：New
- Controller Brand：Curtis
- Certificate：Ce
- Power Type：Battery
- Operate Type：Seat
- Rated Capacity：1500-5000kgs
- Lift Motor Type：DC
- Drive Motor：AC Motor
- Brand：Mima
- Color：Red
- Lifting Height：6000mm
- Transport Package：Standard Packing
- Specification：ISO9001
- Trademark：MIMA
- Origin：Hefei
- HS Code：84271090
- Production Capacity：2000 Units,Year
Description
Model No. MK15 MK20 MK25 MK30 MK35 Standard Power Type Battery Battery Battery Battery Battery Operate Type Seated Seated Seated Seated Seated Rated Capacity Q(kg) 1500 2000 2500 3000 3500 Load Center C(mm) 500 500 500 500 500 Wheel Wheel Type Pneumatic tire Solid tire Loading wheel 5.00-8 18×7-8 18×7-8 18×7-8 18×7-8 Driving wheel 6.00-9 21×8-9 21×8-9 23×9-10 23×10-12 Wheel read, drive 910 950 960 970 1080 Wheel read, load 930 960 960 960 990 Number of wheels. -front/rear (X=Drive wheel) 2X / 2 2X / 2 2X / 2 2X / 2 2X / 2 Dimension Mast tilting α/β(º) 6/10 6/10 6/10 6/10 6/10 Lift Height h1(mm) 3000 3000 3000 3000 3000 Height--Free Lift h2(mm) 135 140 145 145 150 Height---Mast Lowered h3(mm) 1995 1995 1995 2110 2100 Hegith-Mast Extended h4(mm) 4030 4030 4030 4256 4256 Height-Overhead guard--mm h6(mm) 2100 2100 2100 2130 2130 Mast Clearance h8(mm) 85 85 85 90 90 Overall Length 11(mm) 3205 3410 3410 3620 3770 Length-to Fork Face 12(mm) 2135 2340 2340 2550 2700 Wheelbase y(mm) 1380 1505 1700 1700 1800 Front Overhang x(mm) 380 420 425 433 484 Overall Width b1/b2(mm) 1110 1160 1160 1200 1330 Fork Dimensions mm 1070*100*35 1070*100*40 1070*100*45 1070*125*45 1070*125*50 Fork outside width b5(mm) 222-1000 222-1000 222-1000 250-1050 250-1050 Trurning radius Wa(mm) 2000 2100 2100 2300 2450 Function Driving speed, load/unload km/h 10/12 10/12 10/12 10/12 10/12 Max. gradeability,load/unload % 14/15 14/15 14/15 14/15 14/15 Driving motor (S2-60min) kw AC6.8 AC6.8 AC6.8 AC9.1 AC14 Lift motor type DC DC DC DC DC Lift motor (S3- 15%) kw 8.2 8.6 8.6 10 10 Battery voltage/capacity V/AH 48/400 48/490 48/560 48/630 80/400 Weight Battery kg 645 750 885 980 1070 Service weight kg 2990 3380 3600 4370 4870 Steering Steering type Full hydraulic Parking brake model Hydraulic power Parking operation type Pedal
BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".
Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.
Many of our models are in stock so we can support fast shipping.
For more details please feel free to contact us.
1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
