• Model NO.：FD25
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Engine：Xinchai,Isuzu,Mitsubishi
• Weight：3380kg
• Rated Capacity：2000kg
• Fork Size：1220X122X40mm
• Transmission Box Type：Automatic Transmission
• Tire Type：Pneumatic Tire
• Transmission：Hydraulic
• Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
• Mast：Duplex Mast (Triplex Mast Optional)
• Color：Customized
• Certification：CE,ISO
• Transport Package：Container
• Specification：2605x1150x2090mm(LXWXH)
• Trademark：UNITCM
• Origin：Cn
• HS Code：8427209000
• Production Capacity：4500sets,Year

ModelUNITFD20TSpecificationsPower Unit DieselOperator Type Driver/seatTransimission Box Type Electronic hydraulic transmissonRated Capacitykg2000Load Centermm500Max.Lifting Heightmm3000Tire Type Pneumatic TyreTire Number Front 2Rear2Tire Size Front 7.00-12-12PRRear 6.0-9-10PRPerformanceLifting SpeedLoadedmm/s500Unloaded550Lowering Speed Loadedmm/s480Unloaded450Travelling Speed Loadedkm/h17Unloaded19Max.Gradeability (Loaded)%21Max.Drawbar Pull (Loaded)kg18Mast Tilting Angle (Fwd/Bwd)deg6/12Free Lifting Heightmm150Turning Radiusmm2170DimensionsOverall Length (with fork)mm2605Overall Widthmm1150Overhead Guard Heightmm2090Fork Size (LxWxT)mm1220×122×40Mast Height (Fork lowered)mm2090Battery (Voltage/Capacity)V/Ah12/90Truck Weightkg3380Fuel Tank CapacityL70EngineBrand  XINCHAIMITSUBISHISUZUModel C490S4SC240Rated Powerkw/rpm40/265035.3/225035.4/2500Rated torquen-m/rpm160/1600-2000169/1700137.7/1800Number Of Cylinder 444Displacement 2.672.492.37

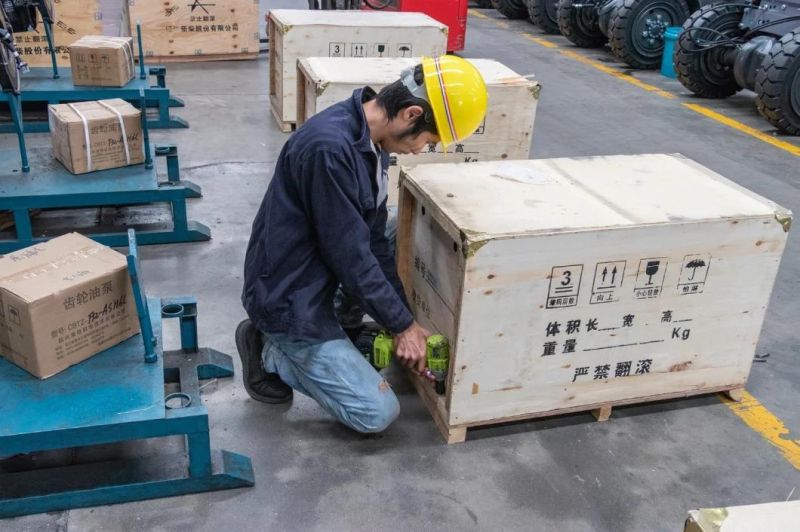

Shipping & Packing

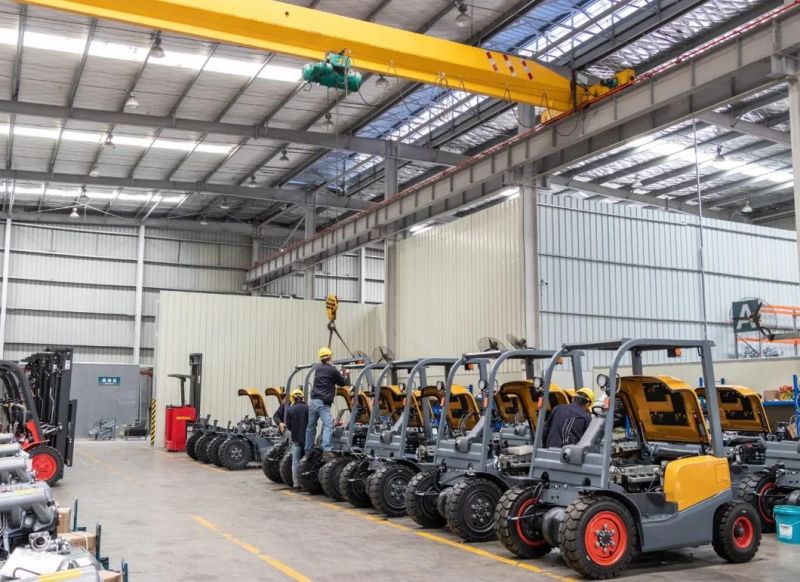

About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
