Forklift 5 Ton to 7 Ton Standard Air Filter Forklift 7tons Diesel Forklift

Xiamen LTMG Machinery Co., Ltd.
  • Warranty：1 Year or 2000 Hours
  • Cab Location：Adjustable
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：7 T
  • Fuel：Diesel

Base Info

  • Model NO.：FD70
  • Load center：600mm
  • Lift height：3000~5000mm
  • Condition：New
  • Engine：Isuzu,Chaochai
  • Fork Size：1220mm*150mm*65mm
  • Weight：9450kg
  • Wheelbase：2250mm
  • Color：Decided by Buyer
  • Overall Length：3590mm
  • Max. Lifting Height：6000mm
  • Transport Package：Container
  • Specification：3590mm*1995mm*2500mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：800sets,Year

Description

LTMGModel Power shift T/MFD70Load capacity kg7000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3000Free lift mm210Fork sizeL*W*Tmm1220*150*65Tilt rangeMast forward/backwarddeg6/12Overall length mm3590Total width mm1995Mast height (fork lowering) mm2500Overall height fork raisedWith backrestmm4420Height to head guard mm2450Turning radius(outside) mm3360Front face of fork to front axle mm620Min. right angle stacking aislewithout load length& clearancemm5620SpeedMax Travelling   full/no loadkm/h26/30Lifting full/no loadmm/s450/550Lowering full/no loadmm/s450/500Max.drawbar pullfull/no loadkg5400/2200Gradeability at 1.6km/hfull load%29Max. Gradeabilityfull/no load%33/19Truck weight kg9450Weight  distributionFull load front/rearkg14520/1930No load front/rearkg3760/5690TiresNumberfront/rear4/2Modelfront axle8.25x15-14PRrear axle8.25x15-14PRWheelbase mm2250TreadFront/rearmm1470/1700At lowest point(mast)mm190Ground clearanceFramemm230BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2000110/2500Rated torqueg-m max.(N.m)42.5/150036/1650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M2-2 power shift T/M

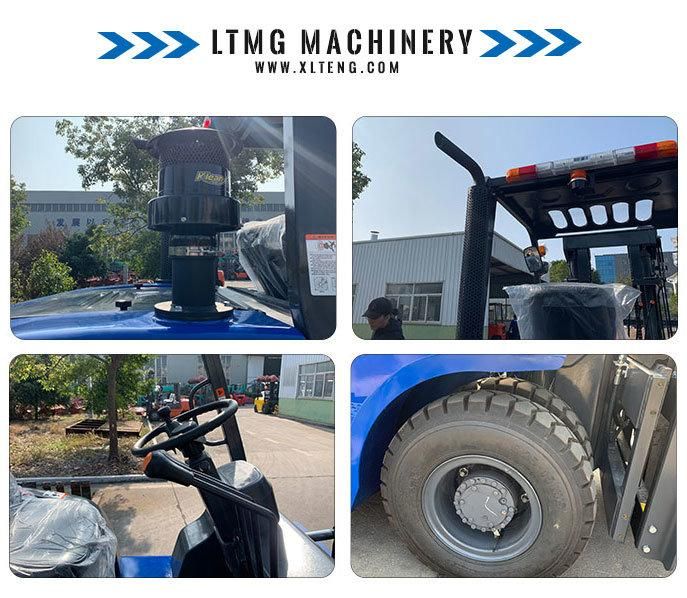

Product Features

1. Automastic transmission, hydraulic system.
2. Xichai 6110 powerful engine or Isuzu engine.
3. Side shifter, 2500mm long fork length.
4. Original Toyota seat with safty belt.
5. Double air filters with high instake, which effectively reduce the resistence and dust into engine, improving engine life.
6. High exhaust pipe to protect your health and environment.
7. Shimadzu pump and valve, Eaton pipe and Nok cylinder seals.

Forklift 5 Ton to 7 Ton Standard Air Filter Forklift 7tons Diesel Forklift



Our Factory

LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.

At present, Forklift production base owns 120, 000 square meters production base and 15000 units forklifts annual production capacity.

LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 100 countries and regions around the world.

Forklift 5 Ton to 7 Ton Standard Air Filter Forklift 7tons Diesel Forklift


Exhibition and Customers

Forklift 5 Ton to 7 Ton Standard Air Filter Forklift 7tons Diesel Forklift



After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Forklift 5 Ton to 7 Ton Standard Air Filter Forklift 7tons Diesel Forklift




FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
