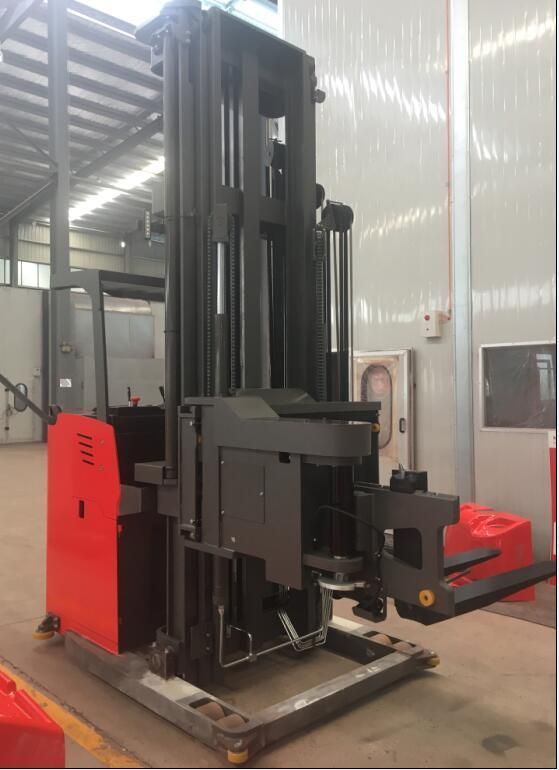

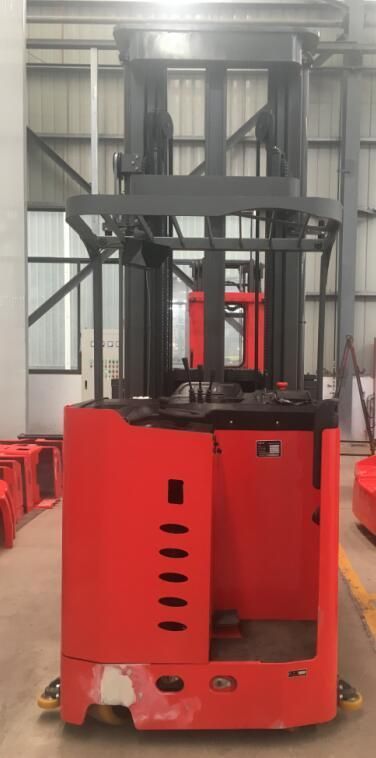

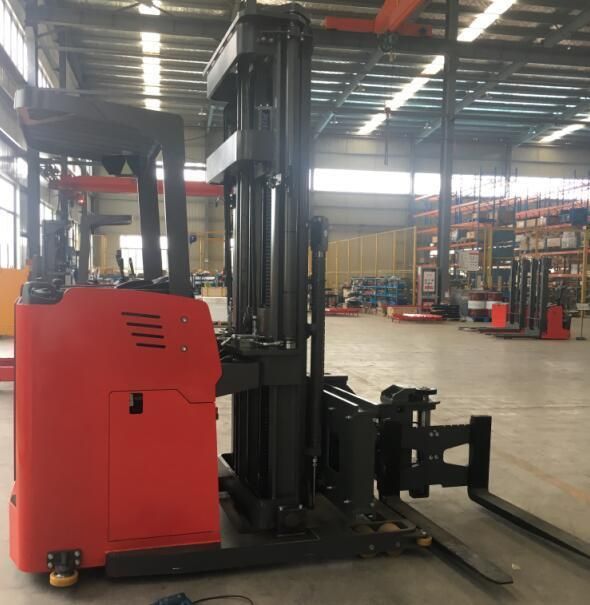

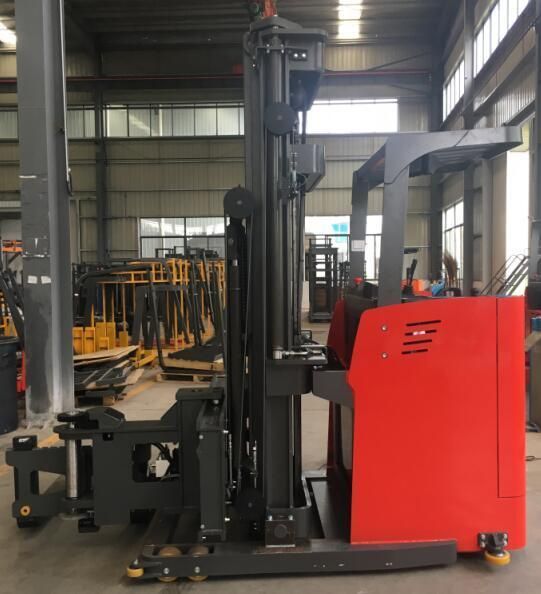

1000kg Narrow Aisle Stacker 180 Degree Electric Pallet Stacker
Hangzhou Noelift Equipment Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Cab Location：Not Adjustable
- Type：Stacker
- Power：AC Motor
- Load Capacity：≤1T
Base Info
- Model NO.：TC10
- Fuel：Electric
- Load center：500mm
- Lift height：>5000mm
- Condition：New
- Service Weight：4760kg
- Max. Lift Height：7500mm
- Min.Lift Height：3000mm
- Fork Type：3 Ways
- Driving Motor：AC Motor
- Fork Dimension：1070mm
- Aisle Width：1480mm
- Brake Type：Mechanical
- Steering Type：EPS
- Battery Change Type：Side Pull
- Transport Package：International Packing Standard Way with Additional
- Specification：2892*1450*2570
- Trademark：NOELIFT
- Origin：Zhejiang
- HS Code：8427102
- Production Capacity：300
Description
NOELIFTModel TC10 TC10SQ Power type Battery Battery Operation type Stand-on Stand-on Loading capacity kg 1000 1000 Loading center mm 500 500 Tire type front/rear solid PU/solid PU solid PU/solid PU Lifting height mm 3000 4500 Mast height(closed) mm 2570 2750 Overhead guard height mm 2320 2320 Overall length mm 3375 3454 Overall width mm 1450 1450 Fork size mm 1070×100×35 1070×100×35 Fork spread mm 260~820 260~820 Aisle(1000×1000 pallet) mm 1480 1480 Turning radius mm 1880 1880 Min. width aisle mm 1480 1480 Total weight(inclue battery) kg 3226 3920
Details
Noelift catalog
--
1-12tons diesel forklift truck & 1-3.5tons gasoline/LPG forklift truck
1-5tons electric forklift truck, 3-6m
1-2.5tons electric reach truck,1.6-12.5m
1-2tons electric pallet stacker,1.6-5.5m
1-8tons electric pallet truck
0.3/1.0t electric order picker, 1.6-5.0m
Very narrow aisle forklift truck, 3-12.5m
Customize design model
More than 100 model for your optional.
HIGH MAST PARAMETER
| Mast | Full free | Lifting height | Lowered height of mast | Free lift height | Loading capacity @ MAX. height |
| TC10 | |||||
| Duplex | NO | 3000mm | 2570mm | 100mm | 1000kg |
| NO | 3500mm | 2820mm | 100mm | 1000kg | |
| NO | 4000mm | 3070mm | 100mm | 1000kg | |
| Triplex | YES | 5000mm | 2920mm | 1670mm | 1000kg |
| YES | 5500mm | 3090mm | 1850mm | 1000kg | |
| YES | 6000mm | 3250mm | 2000mm | 1000kg | |
| YES | 6500mm | 3420mm | 2200mm | 900kg | |
| YES | 7000mm | 3580mm | 2400mm | 800kg |
