• Model NO.：NEw-ES
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Power Souce：AC Motor
• Max. Lifting Height：4000mm
• Min. Lifting Height：1600mm
• Fork Length：1150mm
• Fork Width：160mm
• Model：Es10,Es15
• Power Type：Electricity
• Total Weight：610kg
• Rated Capacity：1500kg
• Lift Motor：DC
• Drive Motor：DC
• Controller：Pg
• Turning Radius：1378mm
• Wheelbase：1208mm
• Overall Width：800mm
• Transport Package：International Packing Way with Thick Plastic Film
• Specification：Max. Lifting Height: 4000mm
• Trademark：Noelift
• Origin：China(Mainland)
• HS Code：84271020
• Production Capacity：1000,Year

Manufacturer NoeliftModel ES10MES10MSES15MES15MSOperate Type WalkieWalkieWalkieWalkieCapacitykg1000100015001500Load centermm500500500500Wheelbasemm1208120812081208Service Weight (Incl.Battery)kg460/530/
560/590460/530/
560/590510/580/
610/640707/740/
775/806Lift Heightmm1600/2500/
3000/35001600/2500/
3000/35001600/2500/
3000/35001600/2500/
3000/3500Overall Lengthmm1716171617161716Overall Widthmm8001310/1460/
16108001310/1460/
1610Fork Sizemm1150*160*501070*100*401150*160*501070*100*50Outside Fork Widthmm560220-880560200-800Drive Motorkw0.75DC0.75DC1.10DC/1.2AC1.10DC/1.2ACLifting Motorkw2.20DC2.20DC2.20DC2.20DCBatteryV/Ah24/8024/8024/10024/100Controller CurtisCurtisPGPGTyre Type PUService Brake RegeneratingParking Brake Electromegnetic

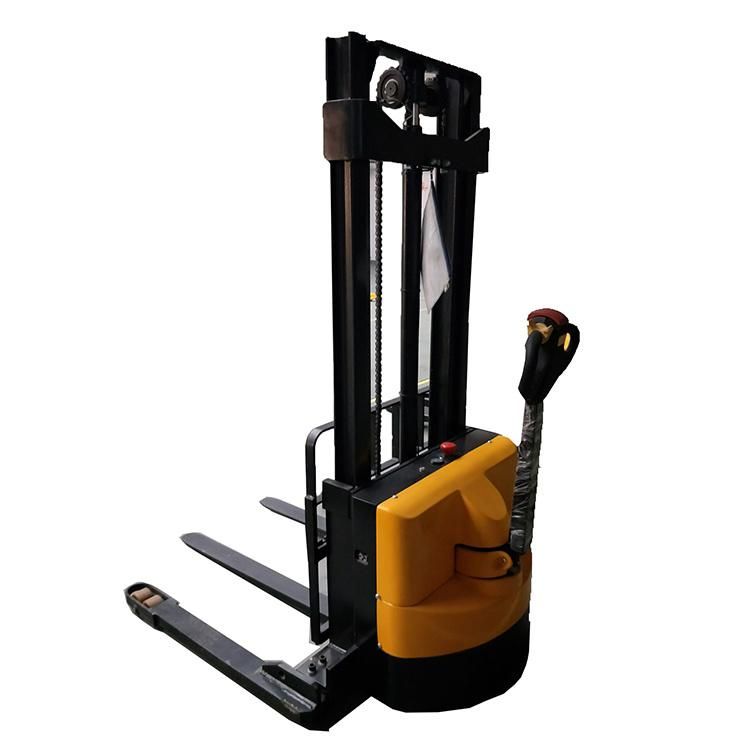

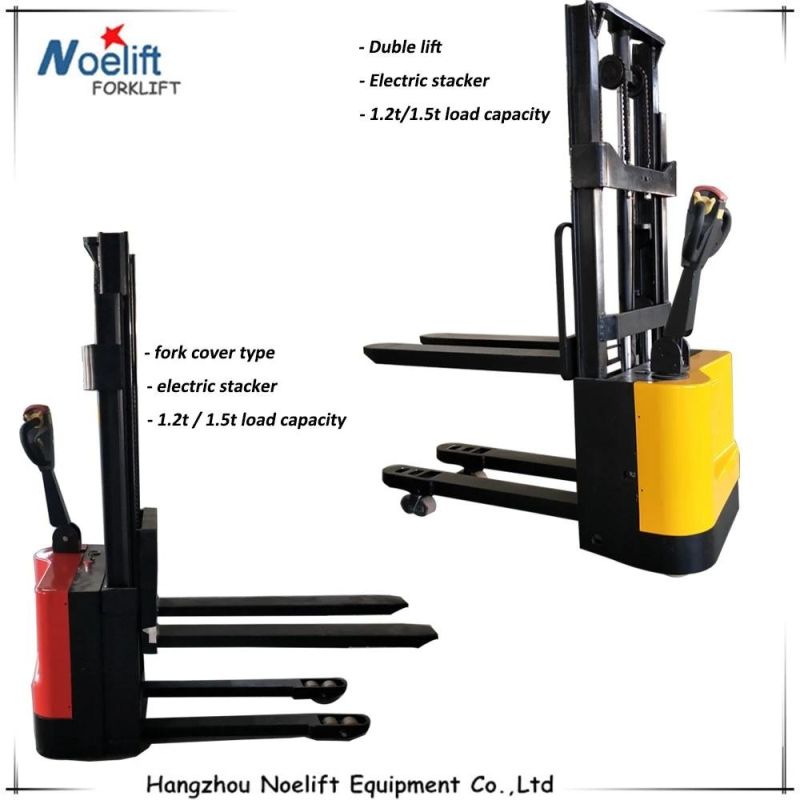

Detailed Images

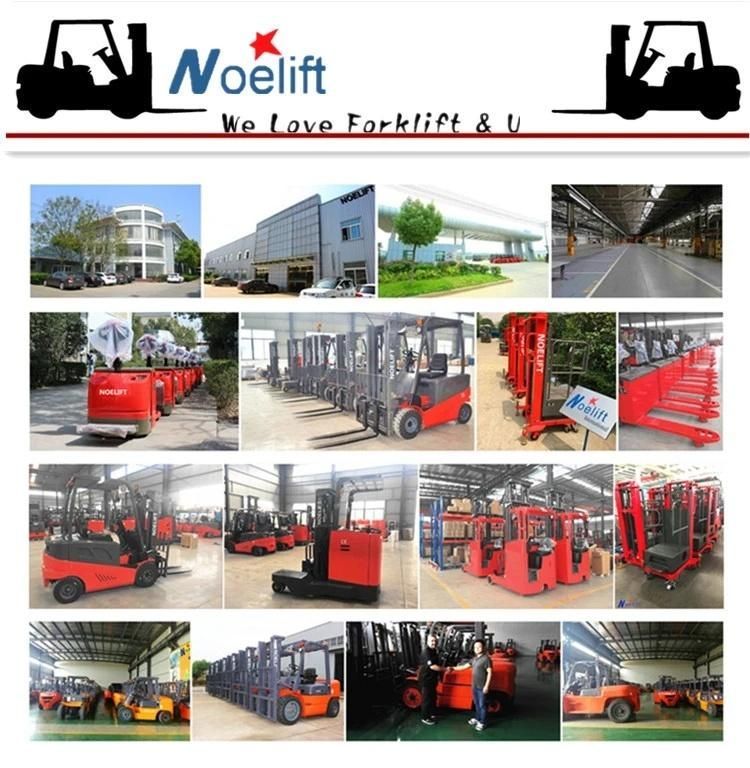

Our factory:
