• Model NO.：FD30
• Lift height：3000~5000mm
• Condition：New
• Color：Green
• Engine Model：Japanese Shimadzu Brand Pump and Valves
• Weight：4250kg
• Fork Size：1070*125*45mm
• Mast Type：2stage 3000mm Mast
• Model：Fd30
• Engine：Mitsubishi
• Attachment：Soild Tyre
• Mirror：Triangle Wide View
• Overhead Guard：Anti-Rain Proof
• Spare Parts：Filters and Seals
• Transport Package：Container Package
• Specification：3000kg load capacity
• Trademark：SNSC
• Origin：Anhui, China(Mainland)
• HS Code：84272090
• Production Capacity：1000,Month

Model  UnitFD30Featurespower type ---DieselRated Load kg3000Load CenterJmm500Lifting Heighth1mm3000Free Lifting Heighth3mm145Fork Size Size(L*W*H) mm1070x125x45Mast Tilt Radius °6/12Minimum Turning RadiusR1mm2600Minimum Stacking Right Angle Channel Width mm4280Minimum Right Angle Channel Width mm2120Minimum Ground Clearance mm120Front OverhangL3mm480Overhead Guard Height mm2137PerformanceMax.Traveling Speed(Full Load) km/h20Max.Lifting Speeding(Full Load) mm/s470/520Max.Climbing Ability %20DimensionOverall Length (Without Fork)L1mm2710Overall WidthW1mm1230Max.Fork Lifting Height(With Load Backrest) mm4265Mast Heighth2mm2055ChassisTyre(Front/Rear) mm28x9-15-12PR/6.50-10-10PRWheel Base mm1700Wheel Tread(Front/Rear) mm1000/970Curb Weight(Without Load) kg4350PowerBattery Voltage/Capacity V/A12/90 Rated Power/Speed km/r.p.m37/2650 Rated Torque/Speed Nm/r.p.m148/2000 BorexStroke mm90x100 Cylinder Amount ---4 Displacement L2.54 Fuel Tank Capacity L70 Operation Pressure Mpa17.5


Detailed Images

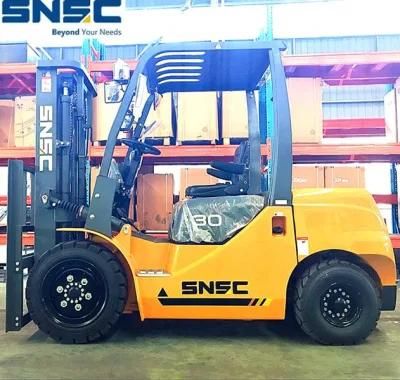

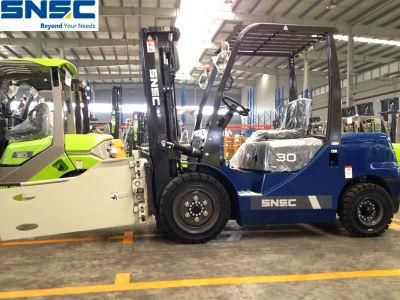

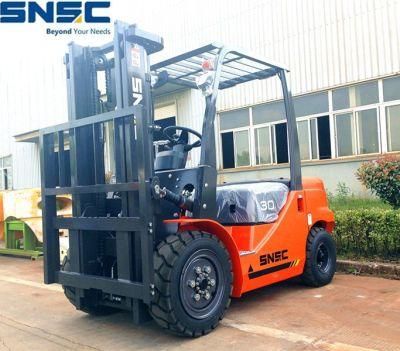

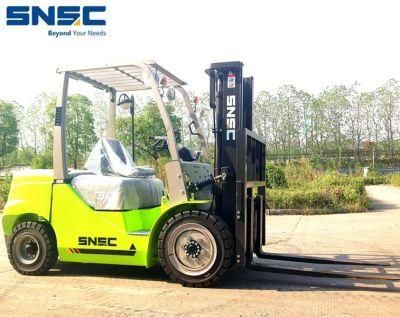

3Ton Mitsubishi Engine FD30 Diesel Forklift

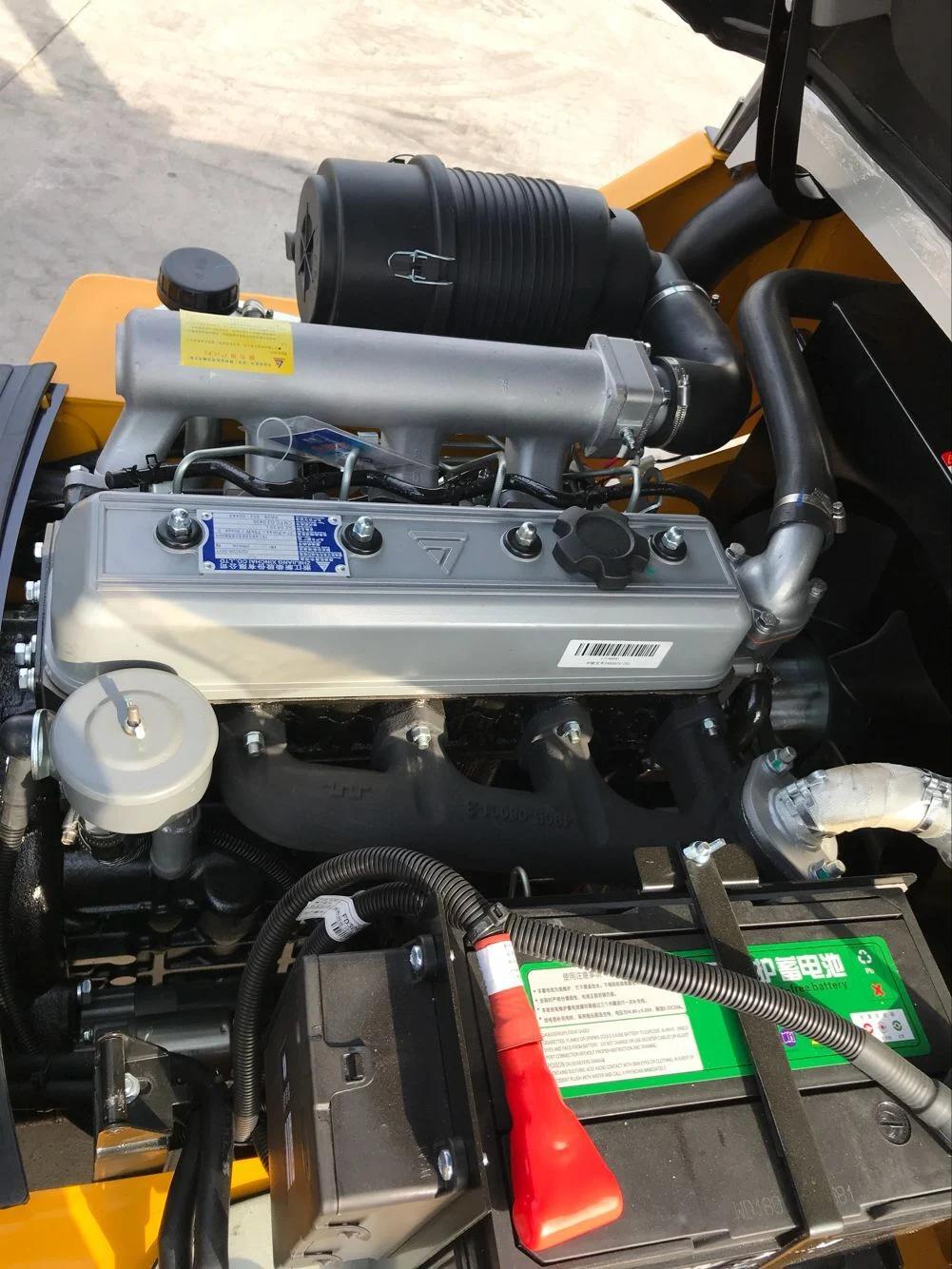

This Mitsubishi engine performs very well. It's using Chinese technology.

Good quality. It has the advantage of being durable and oil-saving.

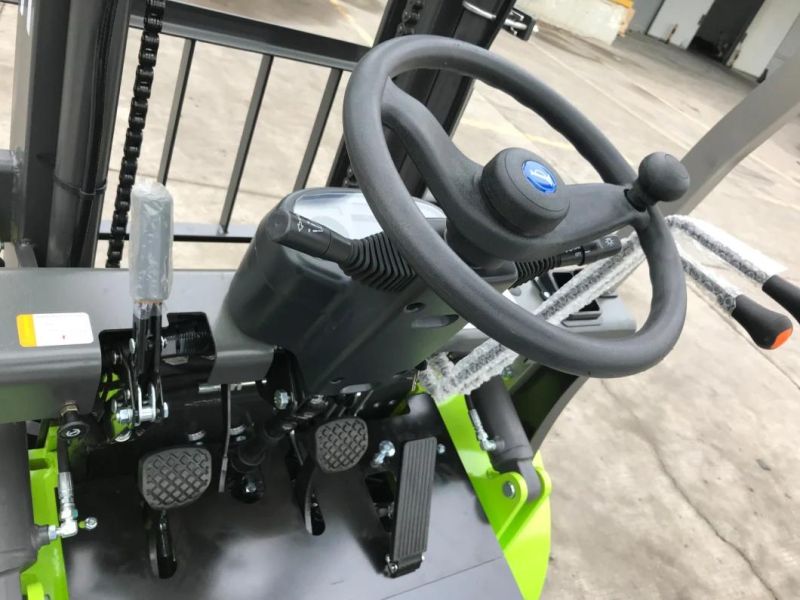

Automatic Transmission system

3ton forklift uses automatic transmission with a finger, making your work very comfortable and efficient.


If you like hand transmission or mechanical transmission, the price will be much more competitive.

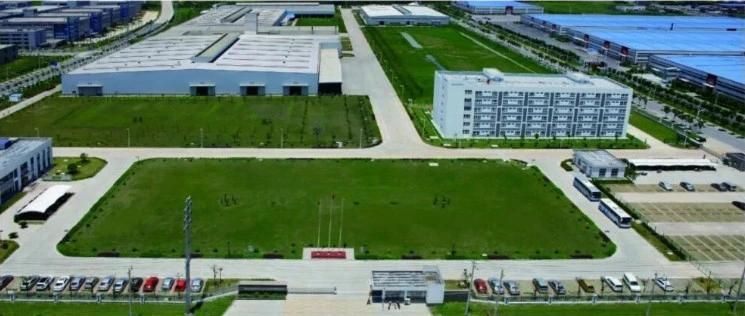

Our Company




We are top 3 in Chinese forklift truck manufactures and top 20 in the world,

with 130,000 square meters production area, over 500 employees,30,000 units forklift truck production capacity per year,5000 sets export volume.

FD30 3T diesel forklift with. We already exported many units to different countries in the world.

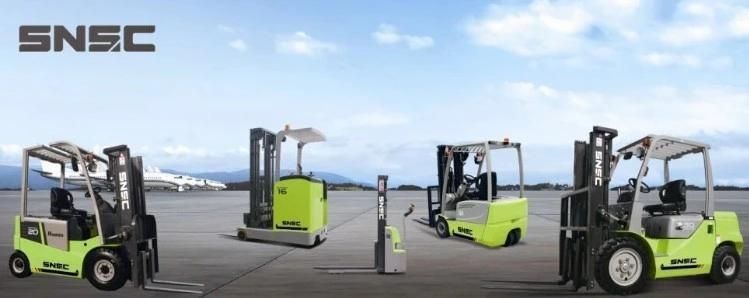

Our Production



We have all kinds of forklifts that can meet your needs.

I. Diesel forklift truck range from 1 to 10ton;(FD30/35/40/50/60,70/80)

II. Battery forklift truck range from 1.5 to 3.5ton;(FB15/20/25/30/35)

III.LPG and gasoline forklifts range from 2 to 3.5 ton;

IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)

V.4 *4 all-wheel drive off-road forklift range from 1.8to 5ton.

FAQ


1. What's the Certificate do you have?
Our Forklift has passed all kinds of international certificates, eg: Russian Ghost certificates or European CE(EC) certificates, especially, our CE certificates are made in Turkey. Quality is guaranteed and performance stable.
2. Can you customize and design as the clients' requirements?
Un will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty for your products?
All of the products are with 15 months/ 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do! With the authorization of the brand, we can OEM for our clients.
5. What are the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY.
6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customized products, the delivery date depend on your product time
