• Lift height：>5000mm
• Condition：New
• Rated Load：4500 Kg
• Gross Weight：13500 Kg
• Engine Power：82 Kw
• Maximum Traveling Speed：36 Km,H
• Transport Package：Naked in Ship
• HS Code：8427209000
• Production Capacity：10000PC,Year

Basic Info.

Lift height >5000mm Condition New Rated Load 4500 Kg Gross Weight 13500 Kg Engine Power 82 Kw Maximum Traveling Speed 36 Km/H Transport Package Naked in Ship HS Code 8427209000 Production Capacity 10000PC/Year

Product Description

PRODUCT DESCRIPTION

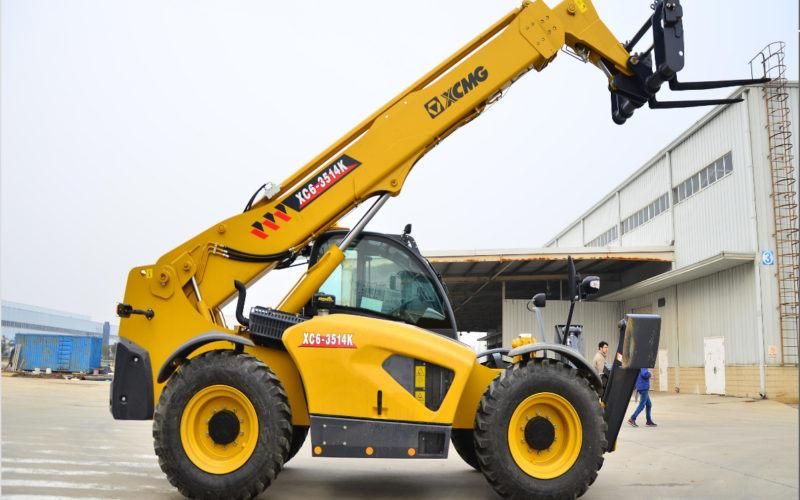

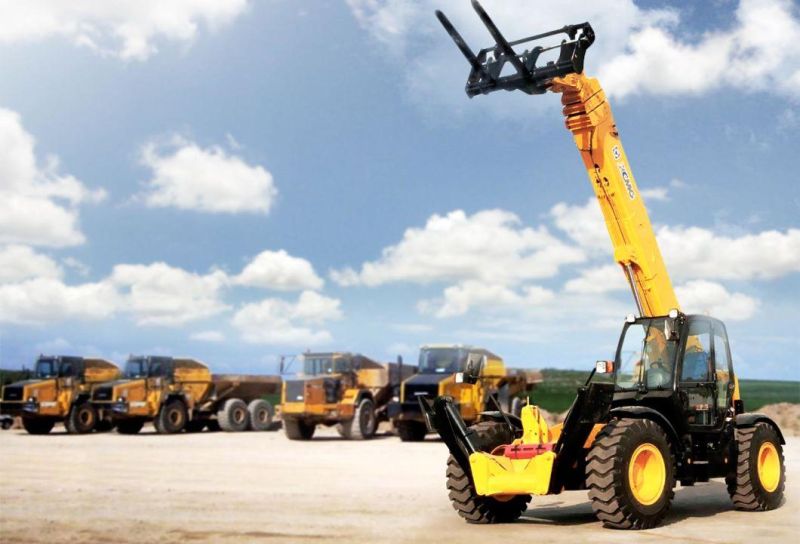

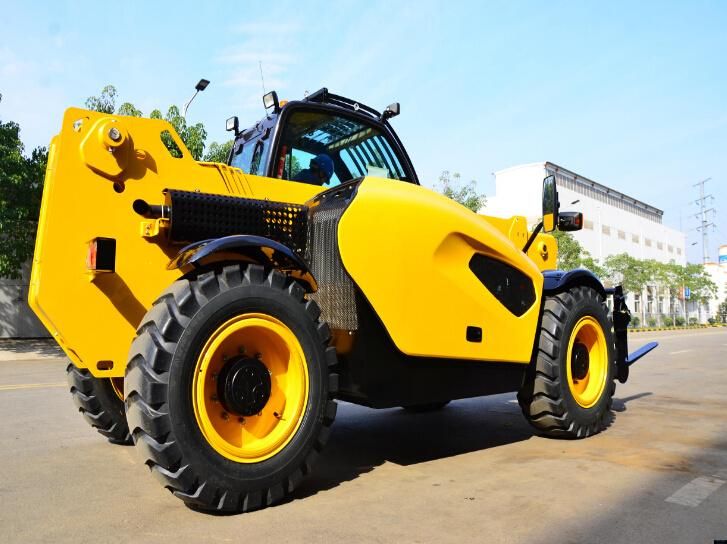

4.5 ton Chinese telescopic handler

The telescopic boom forklift truck is a kind of multi-purpose forklift truck with cross-country performance and telescopic
boom. It can put building materials directly into the operation point, or feed truck crane, tower crane and other
materials. As building materials unloading and short-distance transport, it can carry all kinds of materials on the site,
cleaning and finishing sites.



SPECIFICATION

Description	Unit	Parameter value
Gross weight	kg	13500
Engine power	kW	82/74.9
Rated load	kg	4500
Maximum lifting height	mm	16700
Maximum forward reach	mm	12600
Effective load at maximum forward reach	kg	490
Center distance of load	mm	600
Luffing angle	°	-4~73
Fork angle	°	-90~18
Maximum traction force	kN	≥70
Gradeability	°	≥25
Maximum traveling speed	km/h	36
Turning radius	mm	≤5000
Braking distance	m	≤10 (Initial speed 32±2km/h)
Overall length	mm	6960
Overall width	mm	2500
Overall height	mm	2850
Wheelbase	mm	3900
Wheel tread	mm	2060
Fork length	mm	1200

XC6 is the latest agricultural version telehandler which features the highest operation simplicity,safety and
efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology
achieve more stable and reliable operations. The intelligent independent cooling system features high
energy-saving and efficiency.

FEATURES
1. XC6-4517K telescopic handler is a representative product of our K series telescopic handlers.
2. Powerful international brand engines. Special CARRARO transmissions and axles for smooth drive.
3. The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering
modes) realize super-strong off-road capability and adapt to diversified working conditions.
4. The frame leveling function equipped (The body is capable of 10º swing in both leftward and rightward
directions) realizes powerful site adaptability and meets the needs of diversified working conditions.
5. The special overload control system guarantees operation safety and reliability..
6. The electrohydraulic proportional control for the working system features accurate, stable, and efficient
operations..
7. Optional aerial working platform, bucket and various tools to meet customer needs.
