• Model NO.：Forklift Truck
• Lift height：120mm
• Condition：New
• Dimension：1750*690*1130mm
• Wheelbase：1360mm
• Single Fork Width：165mm
• Pallet Fork：560,680mm
• Fork Length：1160mm
• Electronic Control Model：Pgi90
• Product Name：China Made 1.5ton Electric Pallet Truck for Sale
• Transport Package：Good Package
• Specification：Standard size
• Trademark：MingYu
• Origin：Shandong, China
• HS Code：84279000
• Production Capacity：10000units,Month

Basic Info.

Model NO. Forklift Truck Lift height 120mm Condition New Dimension 1750*690*1130mm Wheelbase 1360mm Single Fork Width 165mm Pallet Fork 560/680mm Fork Length 1160mm Electronic Control Model Pgi90 Product Name China Made 1.5ton Electric Pallet Truck for Sale Transport Package Good Package Specification Standard size Trademark MingYu Origin Shandong, China HS Code 84279000 Production Capacity 10000units/Month

Product Description

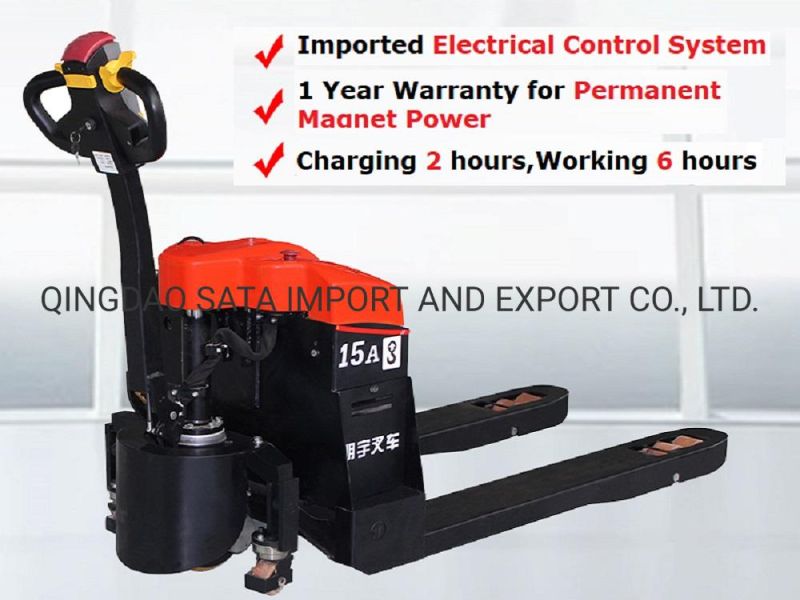

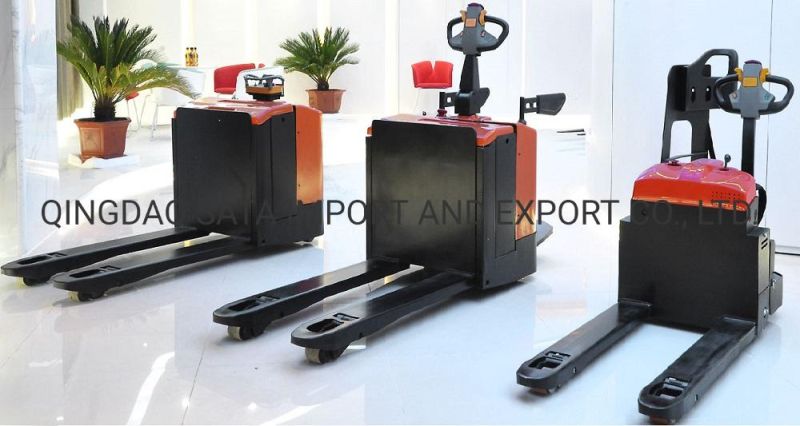

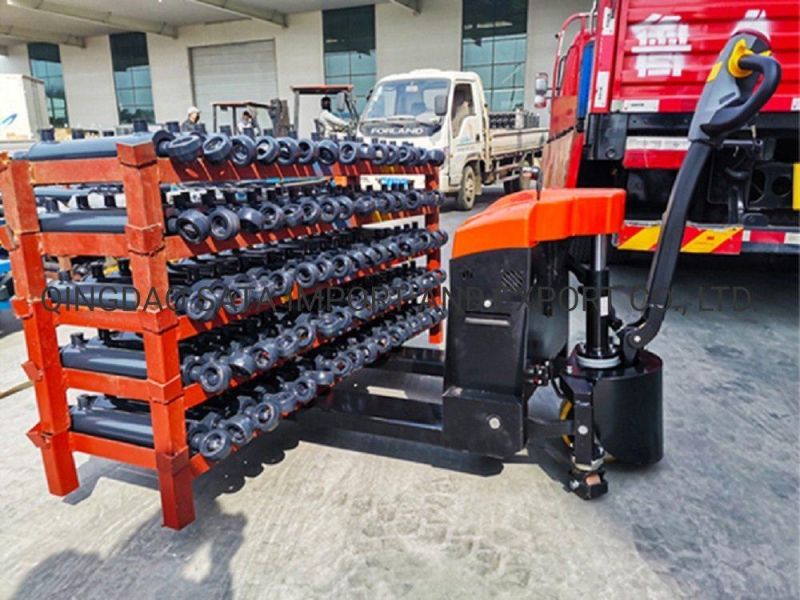

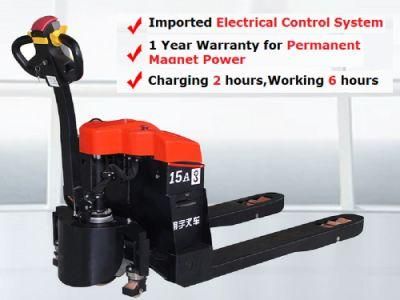

China Made 1.5ton Electric Pallet Truck for Sale

Specification

Item	Feature	Unit	Parameter	Parameter
1	Brand		MingYu	MingYu
2	Model		CBD15	CBD15A
3	Power type		Electric	Electric
4	Operation type		Walk	Station driving
5	Loading capacity	Kg	1500	1500
6	Load center distance	mm	600	600
7	Wheelbase	mm	1360	1415
8	Kerb weight	Kg	232	305
9	Overall dimension(L*W*H)	mm	1750*690*1130	2300*690*1180
10	Tire type		Polyurethane	Polyurethane
11	Driving wheel size (Diameter * Width)	mm	6210*70	4> 210*70
12	Dimensions of loading wheel(diameter * width)	mm	680*60	660*70
13	F scale wheel size (diameter * width)	mm	670*40	4> 115*55
14	Number of moving wheel/bearing wheel/ balancing wheel	piece	1/4/2	1/4/1
15	Max lifting height	mm	120	120
16	Fork height after fork descending	mm	80	60
17	Fork height after fork rising	mm	200	180
18	Fork length	mm	1160	1160
19	Single fork width	mm	165	165
20	Fork width	mm	680	680
21	Pallet fork	mm	560/680	560/680
22	Min ground clearance	mm	30	20
23	Walking speed (full load / no load)	km/h	4/4. 5	4/4. 5
24	Lifting speed (full load / no load)	km/h	50/60	27/40
25	Descent speed (full load / no load)	km/h	45/40	42/38
26	Maximum gradient (full load / no load)	%	6/15	8/16
27	Drive motor power	KW	0. 75	0. 75
28	Lifting motor power	KW	0. 8	0. 8
29	Battery voltage / capacity	V/Ah	2*12*70	2*12*70
30	Electronic control model		PGi90	PGi90

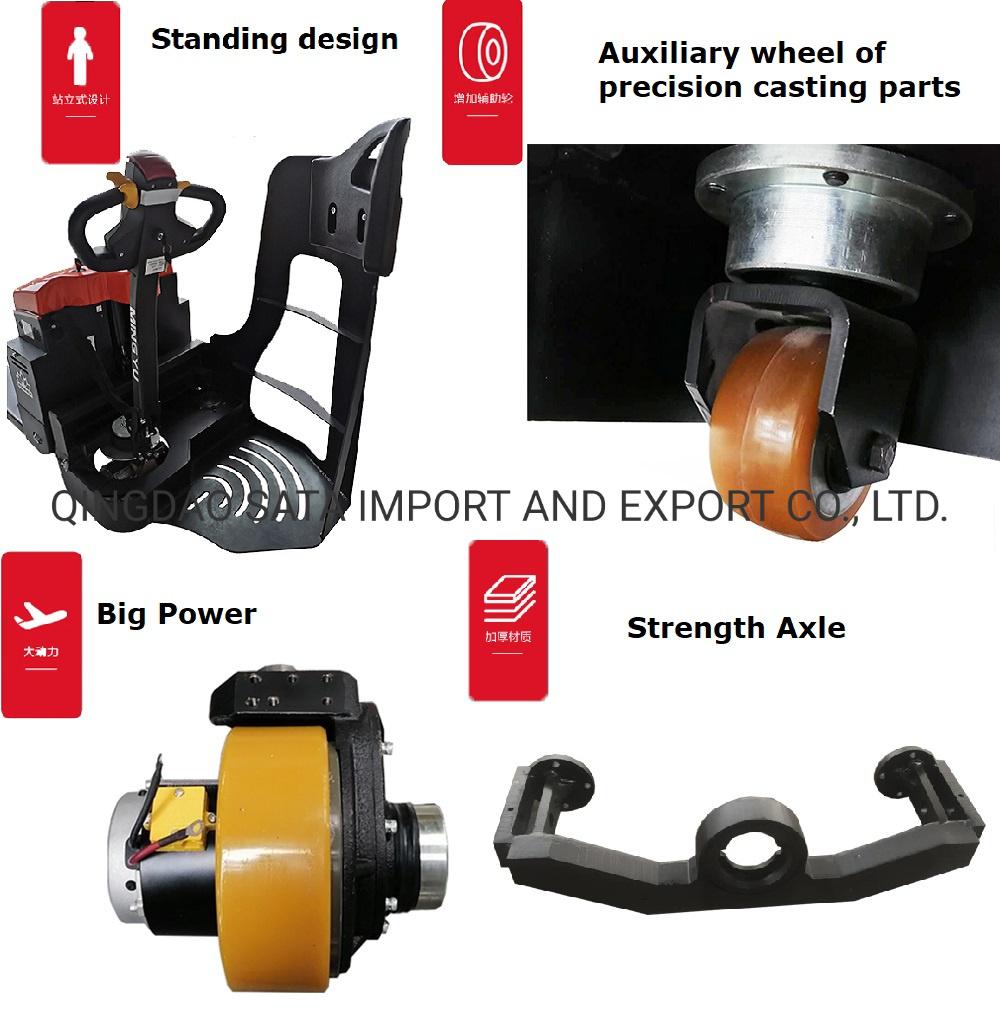

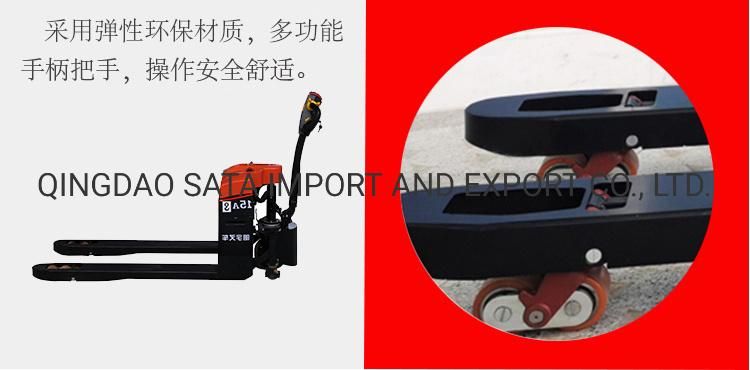

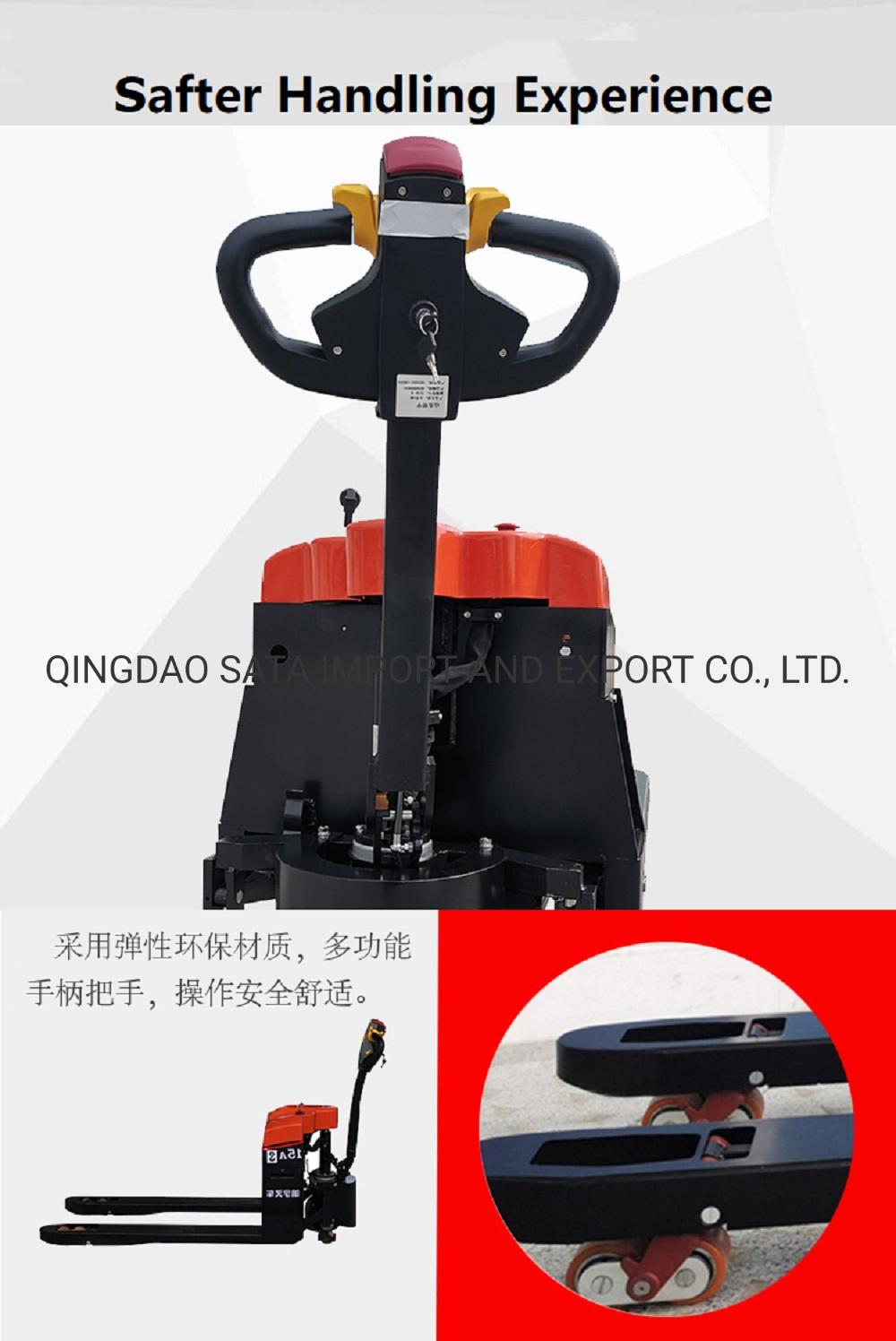

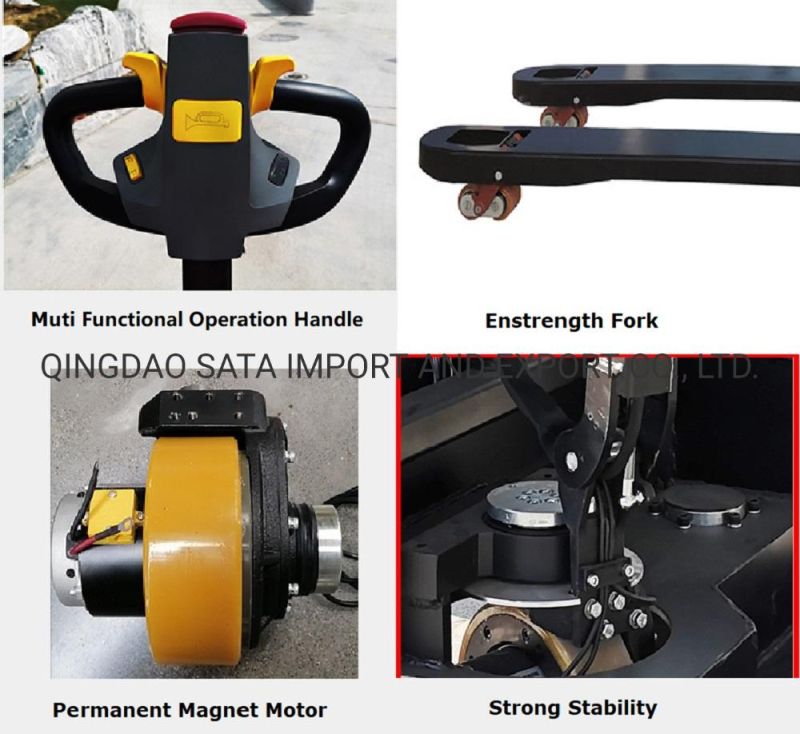

Product detail
