• Model NO.：ES08D
• Lift height：3000~5000mm
• Condition：New
• Dimension(L*W*H)：1875*843*720mm,Stacker
• Fork Size：55,185,1150mm,Reach Stacker
• Wheel Base：1270mm,Electric Stacker
• Min Ground Clearance：30mm,Pallet Stacker
• Aisle Width：2160mm,Electric Pallet Stacker
• Min Turning Radius：1935,1525mm,Stacker
• Wheel Type：PU Wheel,Reach Electric Stacker
• Color：Red,Others,Power Stacker
• Certification：CE, ISO,Standing-on Stacker
• Transport Package：Bubble Wrap
• Specification：CE
• Trademark：JEAKUE
• Origin：Anhui, China
• HS Code：8427102000
• Production Capacity：50000sets,Year

Basic Info.

Model NO. ES08D Lift height 3000~5000mm Condition New Dimension(L*W*H) 1875*843*720mm/Stacker Fork Size 55/185/1150mm/Reach Stacker Wheel Base 1270mm/Electric Stacker Min Ground Clearance 30mm/Pallet Stacker Aisle Width 2160mm/Electric Pallet Stacker Min Turning Radius 1935/1525mm/Stacker Wheel Type PU Wheel/Reach Electric Stacker Color Red/Others/Power Stacker Certification CE, ISO/Standing-on Stacker Transport Package Bubble Wrap Specification CE Trademark JEAKUE Origin Anhui, China HS Code 8427102000 Production Capacity 50000sets/Year

Product Description

Product Description :
Basic description:

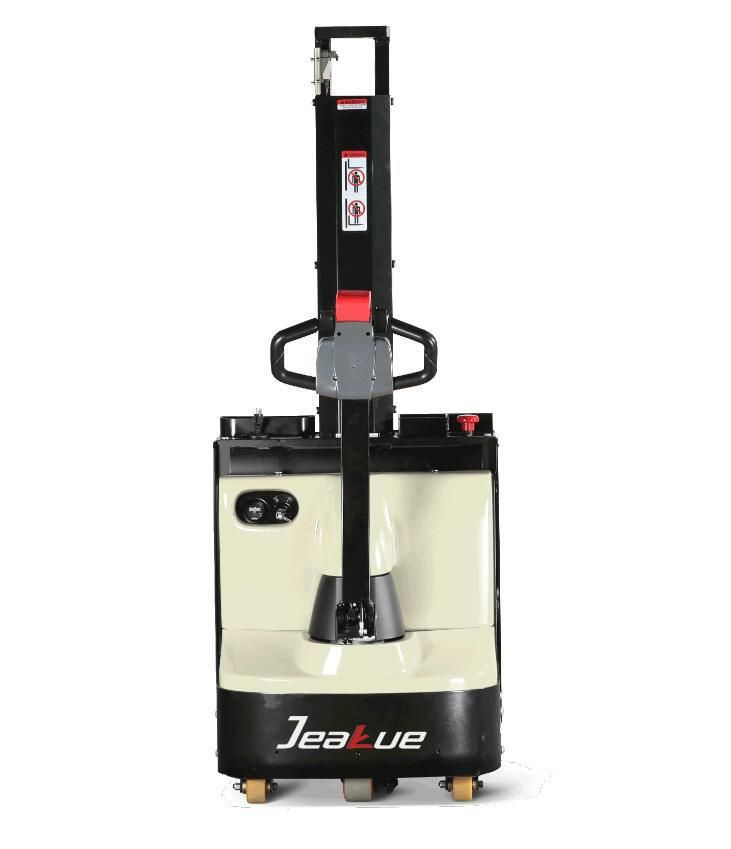

Prodcut Name: 800kg double lift Full Electric Stacker
Lift height :3000mm to 4000mm
AC motor


Details description:

1. Counter weight design which is applicable for various pallets and shelves; high strength car body and chassis, sturdy and durable, ensuring that the fork can handle the heavy load easily
2. AC driven and equipped with electronic power steering function, which reduces the steering power greatly and improves driving stability and comfort.
3.Iron door frame with double oil cylinder design, lifting stably and wide vision4. Equipped with uphill reinforcing oil cylinder to prevent slipping.

5. Imported Curtis electric control, AMP connector, special made large contactor, vulnerable parts will not be damaged easily.

6. Electrical ,mechanical lifting limit to ensure the stable and safe lifting.

7. Three speeds lowering, slow speed with full load and quick speed without load.

8. Relief valve to prevent overload to ensure the safety.

9. Open type inner structure and clear arrangement of the wires with serial numbers, which is easy for maintenance.

10. Timer and voltmeter indicates the using conditions all times to inform the operator to charge in time.


11. Foldable ergonomic pedal to relive the working strength of the operator.

12.Battery with side-ulled design is convenient for maintenance and exchange and improves working efficiency.
13.The mast equipped with electric limit switch controls the Max. Lifting height correctly, which prevents the damage from the lifting motor.
14.The mast equipped with safety net protects the operator from accidental injury.
15.Gas spring resets casting handle automatically; optional automatic folded petal.
16.Baking finished car body and assembly flow line ensures workmanship.
